ABH A570HD Heavy Duty Full Surface Continuous Geared Hinge

$139.99
Usually Ships:  3-5 Business Days
  • 1/16" door inset, for narrow-faced frames
  • Fire-rated up to 90-minutes
  • Supports weights up to 450lbs

Available Options:

Clear

Product Overview

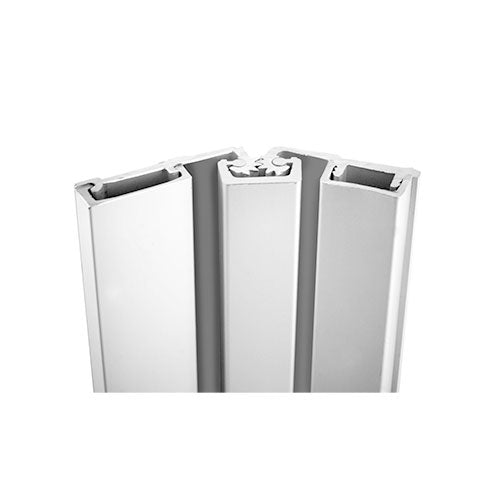

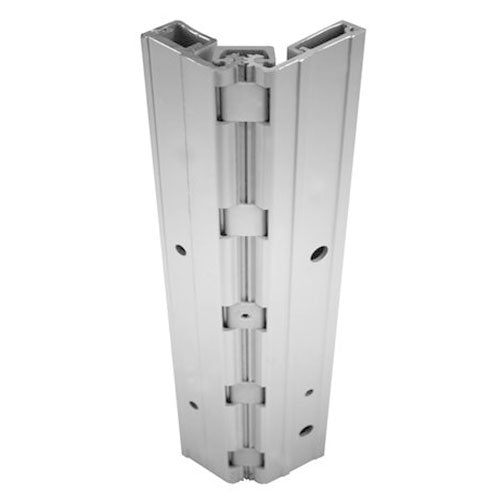

ABH A570HD Aluminum Continuous Gear Hinges Full Surface

  • BHMA Grade 1
  • Full Surface, Heavy Duty

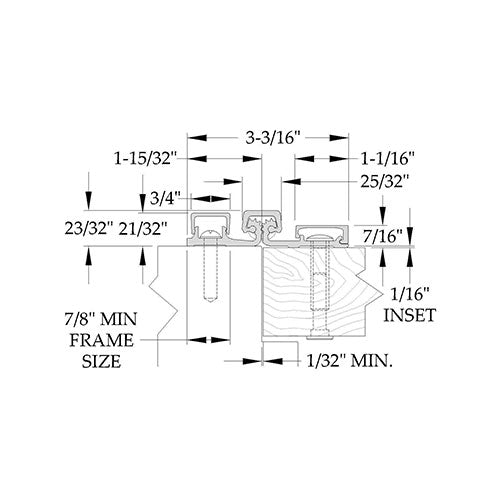

  • 1/16" Door Inset
  • For narrow-faced frames
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • Fasteners: 2-24 X 1" Phillips Pan Head, Self Drilling, Thread Forming Tek Machine Screw 1/4-20 x 1-1/4" x 3/8 Dia. Sex Bolts and 1/4-20 x 1-1/4" PH. Head Shoulder Bolts for door
  • Standard Lengths: 79", 83", 85", *95"
  • Approved for use on metal swinging type fire doors rated up to and including 90 minutes
  • Approved for use on wood swinging type fire doors rated up to and including 60 minutes

*Oversize handling fee applies (added at checkout)

ANSI/BHMA Standard

ANSI/BHMA A156.26-2017 Certified
Brand

ABH
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Continuous Hinge Type

Full Surface
Finish

BlackDark BronzeAnodized Aluminum
Fire Rating

Approved for use on metal swinging type fire doors rated up to and including 90 minutes Wood doors up to 60 minutes
Length

95" (for 8'0" door)83" (for 7'0" door)85" (for 7'2" Door)79" (for 6'8" door)
Material

Aluminum
Usage

Heavy Duty
