Hollow Metal Door with Louver

Starting at: $470.00
Nationwide Delivery

Commercial hollow metal doors with louvers (or door vents) provide air ventilation between rooms or inside of closets. Louvered doors help ventilate rooms when closed while still providing privacy and security. Louvers are often found inside of restroom and electrical or mechanical closet doors.

  • Includes Pre-Installed Steel Louver (50% Air Flow)
  • Ideal for Interior and Exterior Applications
  • Fire-Rated Options Available
Configure & Get Price
Added to Cart

Product Overview

Heavy-duty louvered steel door for commercial, industrial and institutional applications

Our stock hollow metal door is an affordable non-handed, square-edge door solution designed to meet your requirements for quality full flush steel doors. These doors are designed to satisfy your requirements for durability, security, aesthetics or fire protection. Fire-rated louvers are available with embossed UL Classification (24″ x 24″ max louver Size; Bottom of door only; 45 to 90 Minute Rating). Glass cannot be used in conjunction with louvers in fire-rated doors.

Features

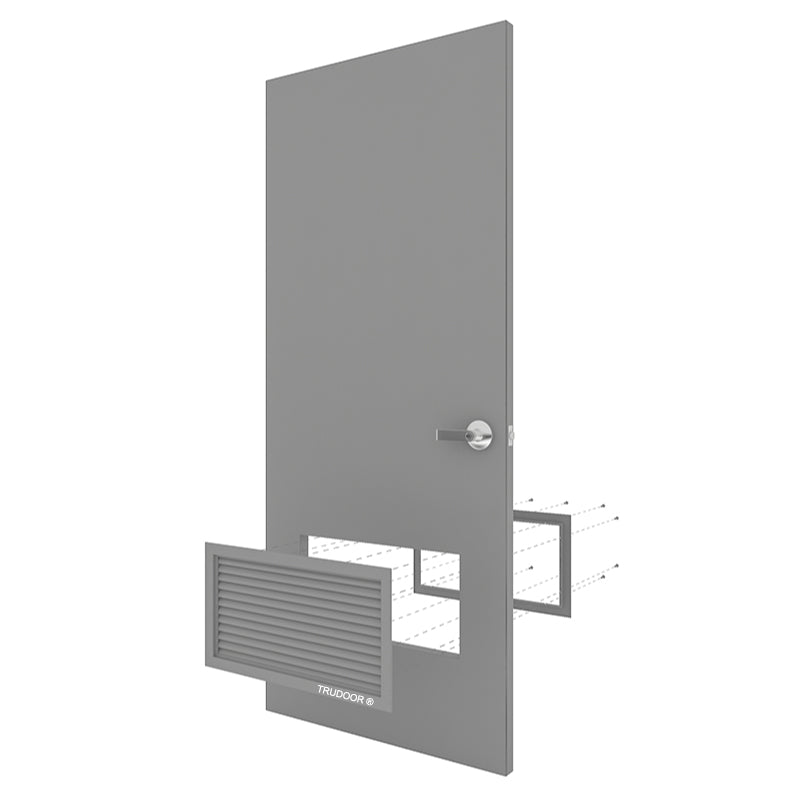

  • Includes self-attaching, vandal-proof Y-blade louver
  • 18-gauge steel louver frame with 20 ga. blades

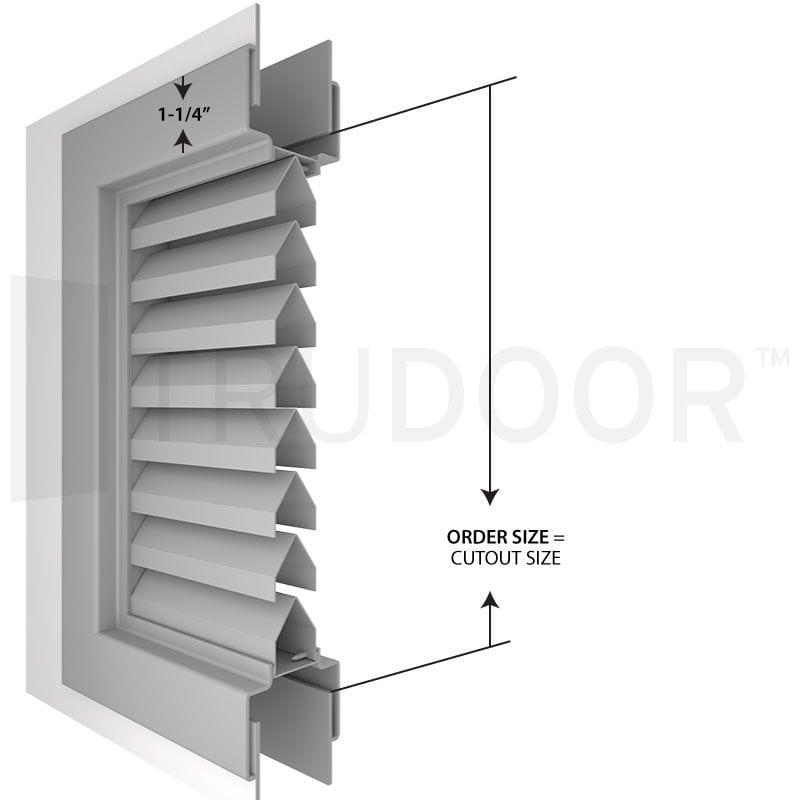

  • Louver order size equal to cutout size
  • 1-3/4” Thick, non-handed design with reversible hinge plates
  • Interlocking seam enhances structural rigidity and durability
  • Factory-applied rust-inhibiting primer (no special color options)
Level

Heavy Duty, SDI Level 2 – 18-Gauge Steel Face Sheets – (16 Ga. Available)

Core

Rigid Honeycomb Core or Polystyrene Core

Door Thickness

1-3/4" Standard

Handing

Non-Handed Design; Reversible Hinge Plates

Door Sizes

Standard Widths up to 4'0", Height to 8'0" (Custom Sizes Available)

Edges

Square Hinge and Lock Edges (Beveled Edges Available) – Full Height, Epoxy Filled Mechanical Interlock Edges

Reinforcements

Heavy Gauge Door Closer and Hinge Reinforcements

Channels

14-Gauge Inverted Top and Bottom Channels, Optional Flush Top Cap

Door Finish

Factory-Applied, Baked-On, Rust Inhibiting Gray Primer (No Special Color Options) – Not intended to be a finish coat. It is recommended that finish paint (top coat) be applied after installation

Standard Preps

Louver Cutout, 161 (cylindrical lock), 86 Edge (mortise lock), Deadbolt, RPD (blank edge, panic reinforced)

Optional Preps

Continuous Hinge Application (Undersized Width), Exit Device Trim, Lite Cutouts

ANSI Standards

Meets or Exceeds Standards for ANSI 250.4 and ANSI 250.8

Door Fire-Rating

Optional – WHI / ITS up to 90-Minute Fire-Rating (with Fusible Link Louver)

Louver Construction

18-Gauge Steel with 20 Ga. Blades

Louver Free Air Flow Area

Standard: 50% Free Area - Fusible Link Models: 45% Free Area

Louver Brands

Air Louvers, NGP (National Guard), Advantage

Louver Fire-Rating

Standard: None - Fusible Link Models: 45 to 90 Minute – CAN/ULC S104, NFPA252, UBC 7-2-94, UL10(b), UL10(c)

Louver Finish

Gray or Bronze Powder Coat, Primed Gray

Buy American Act Compliance

Meets Buy American Act – Made in USA

Mfg. Hinge/Lock Location

Steelcraft, Mesker, Ceco, Curries, Republic, Baron, DKS, Pioneer, Deansteel, Custom Locations

12″ x 12″

24″ x 12″

24″ x 18″

24″ x 24″

LL (Top & Bottom)

Full Louvered

Above drawings based on 3’0″ x 7’0″ doors.

18″ x 12″ and 18″ x 18″ also standard (not shown). Custom sizes available.

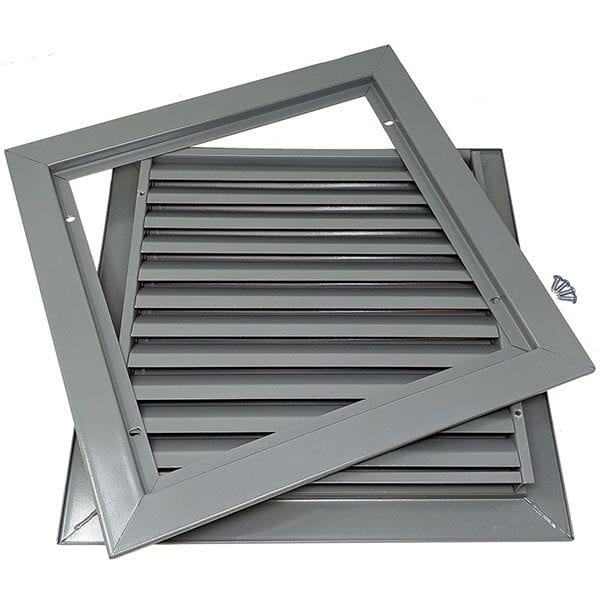

  • Self-attaching, vandal-proof design
  • 18 gauge cold rolled steel frame, 20 ga. blades
  • Mitered and welded corners
  • Single side mounting for non-corridor exposure with fastening screws included
  • Gray or Bronze finish
  • Free Air Flow: 50% Free Area (Fusible Link 45%)

Fusible Link Fire-Rated Louvers Available (24″ x 24″ Max Louver Size; Bottom of Door Only; 45 to 90 Minute Rating) Glass can not be used in conjunction with louvers in fire-rated doors


Y-Blade Louvers sold separately.
