Product Overview

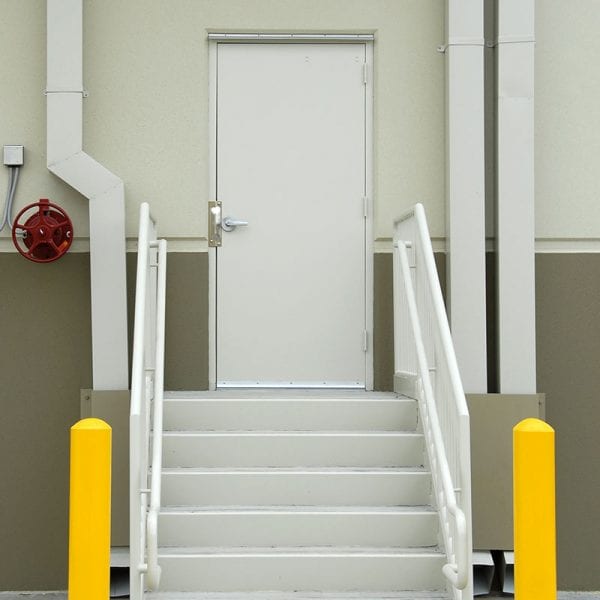

Heavy-duty steel door for commercial, industrial, and institutional applications

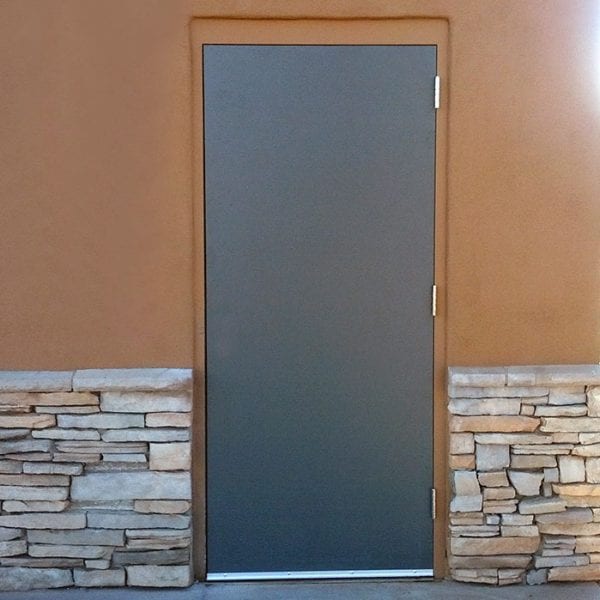

Our stock hollow metal door is an affordable non-handed, square-edge door solution designed to meet your requirements for quality full flush steel doors. These doors are designed to satisfy your requirements for durability, security, aesthetics, or fire protection. Replacement doors and doors with new frames available.
Features
- 1-3/4” Thick, non-handed design with reversible hinge plates
- Inverted top and bottom channels for additional stability and protection
- Interlocking seam enhances structural rigidity and durability
- Available with a wide range of glass lites, louvers, and hardware preps
- Factory-applied rust-inhibiting primer (no special color options)
- Fire-rated doors up to 3 hours with WHI / ITS mylar label applied (optional)
Level |
Heavy Duty, SDI Level 2 – 18-Gauge Steel Face Sheets – (16 Ga. Available) |
---|---|
Core |
Rigid Honeycomb Core or Polystyrene Core |
Door Thickness |
1-3/4" Standard |
Handing |
Non-Handed Design; Reversible Hinge Plates |
Sizes |

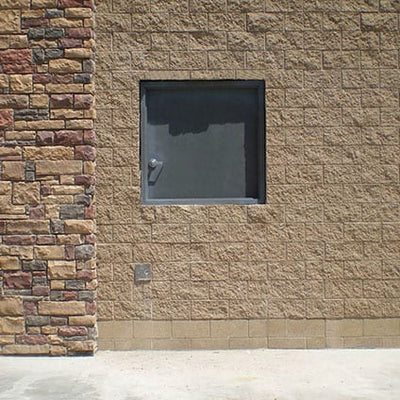

Standard Widths up to 4'0", Heights to 8'0" (Custom Sizes Available) |
Edges |
Square Hinge and Lock Edges (Beveled Edges Available) – Full Height, Epoxy Filled Mechanical Interlock Edges |
Reinforcements |
Heavy Gauge Door Closer and Hinge Reinforcements |
Channels |
14-Gauge Inverted Top and Bottom Channels, Optional Flush Top Cap |
Door Finish |
Factory-Applied, Baked-On, Rust Inhibiting Gray Primer (No Special Color Options) – Not intended to be a finish coat. It is recommended that finish paint (topcoat) be applied after installation |
Standard Preps |
161 (cylindrical lock), 86 Edge (mortise lock), Deadbolt, RPD (blank edge, panic reinforced) |
Optional Preps |
Continuous Hinge Application (Undersized Width), Exit Device Trim, Deadbolts, Lite and Louver Cutouts |
ANSI Standards |
Meets or Exceeds Standards for ANSI 250.4 and ANSI 250.8 |
Fire-Rating |
Optional – WHI / ITS up to 3-hour Fire-Rating, Positive Pressure and “S” Smoke included |
Approvals |
Optional – Florida Product Approved FL-13884 or FL-14237 |
Buy American Act Compliance |
Meets Buy American Act – Made in USA |
Mfg. Hinge/Lock Locations |
Steelcraft, Baron, Ceco, Curries, Mesker, Republic, Pioneer, Deansteel, Custom Locations |

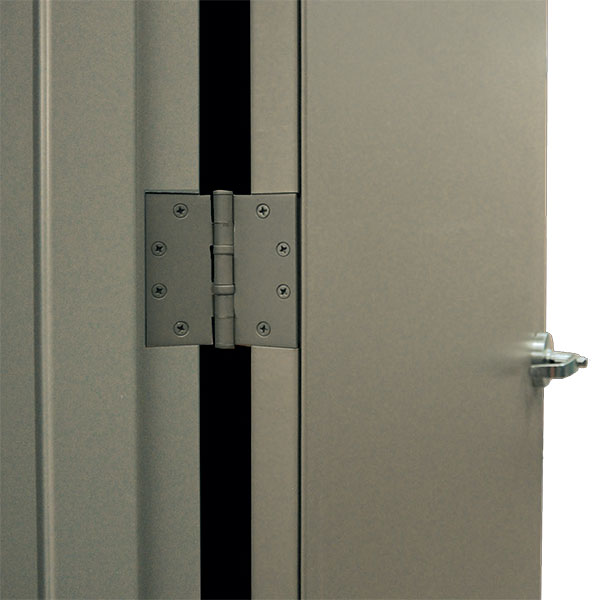

Non-Handed Hinge Reinforcement (Reversible Plate)

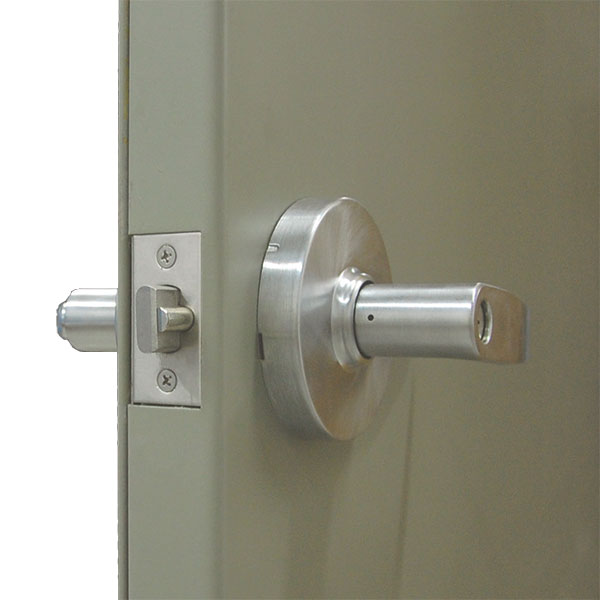

161 Lock Prep / Deadbolt Prep (Bored – 2-3/4″ Backset) ANSI / SDI A115.2
86 Edge Prep (Mortise Lock) ANSI / SDI A115.1
RPD – Rim Panic Reinforced (Blank Edge)

1″ cell kraft honeycomb

Enhanced thermal performance
