Product Overview

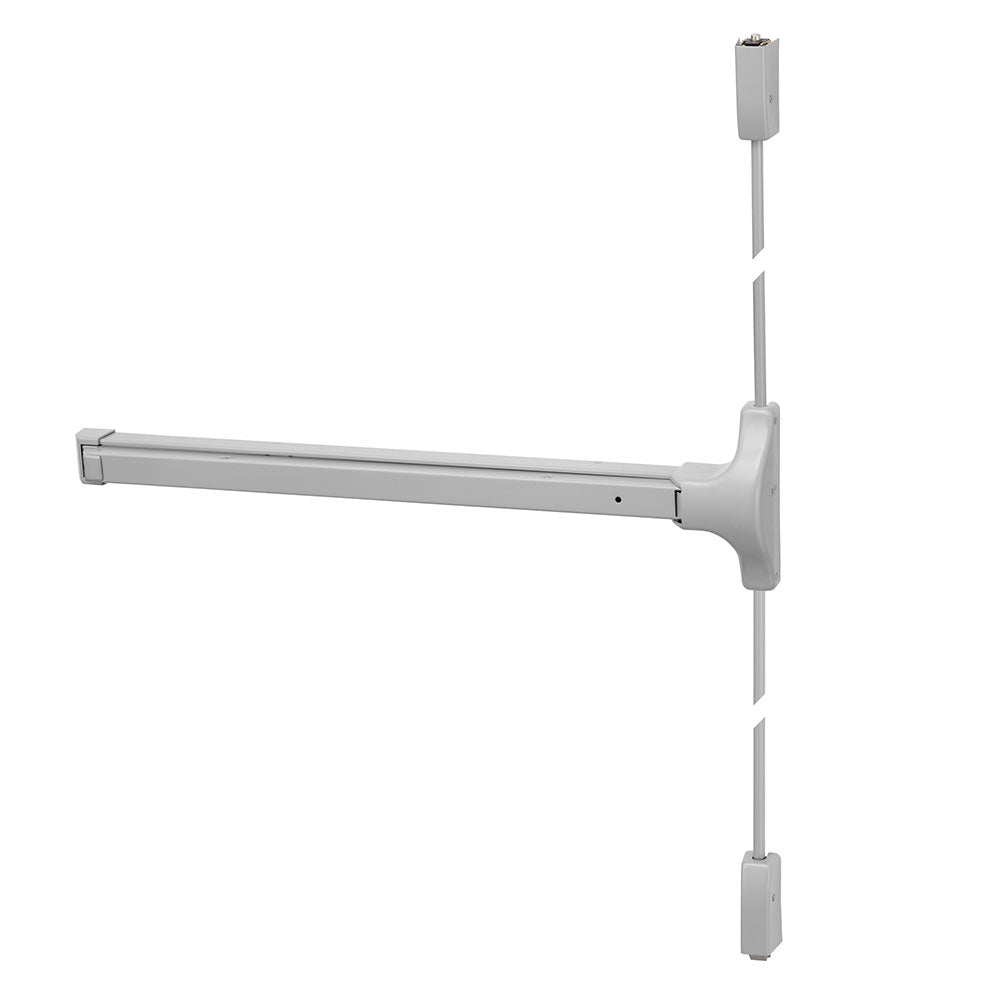

Accentra (formerly Yale) 2100 Series Grade 1 Exit Device, Surface Vertical Rod
The 2110(F) is a surface vertical rod exit device to be used on metal, wood, or composite pairs of doors where two-point latching is desired.
- Exit Only (Yale Exit Device Trim Sold Separately)
- Non-handed for easy installation
- Designed for wide stile doors
- Positive action linkage on a deadlocking top Pullman bolt
- Simultaneous direct pull bottom deadbolt
- When unlatched, device keeps both bolts retracted until door is shut
UL/cUL Listed:
- FVSR/FVSR7 - Panic hardware
- GXHX/GXHX7 - Fire exit hardware (F) (up to 4' x 8' single, 8' x 8' pairs, 3 hr.)
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.3 Grade 1 |
|---|---|
| Brand |
Accentra (Formerly Yale) |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Door Applications |
1-3/4" Metal wood or composite doors |
| Door Height |
Up to 7'0" Standard (extension top rod for 8'0" doors optional) |
| Fasteners |
Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
| Finish |
Stainless SteelBlackDark BronzeAluminum |
| Finishes |
BSP Black Suede Powder Coat630 Satin Stainless Steel695 Dark Bronze689 Aluminum |
| Fire-Rated |
Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature) |
| Fire Rating |
Fire-Rated up to 3 Hours |
| Handing |
Non Handed – Completely Reversible |
| Length |
48" (for 42" to 48" Doors)36" (for 30" to 36" Doors) |
| Minimum Stile Width |
4-1/2" |
| Projections |
2-1/2" active 1-3/4" dogged |
| Stile Type |
Wide (Standard) |
| Strike |
Flush mounted 790 |
| Usage |
Medium Duty |
