Product Overview

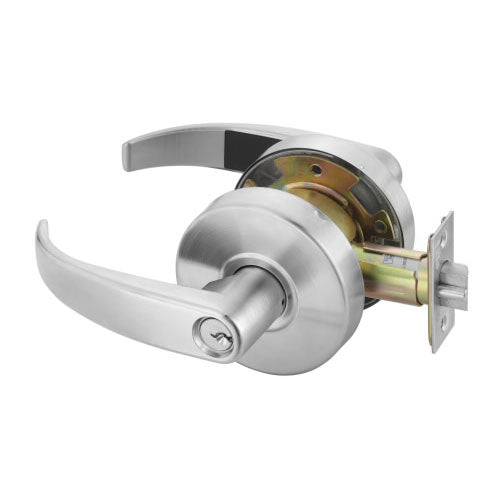

Accentra (formerly Yale) PB4607LN ANSI/BHMA Grade 2 Certified Cylindrical Lock, Entry Function, Pacific Beach Lever
The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.

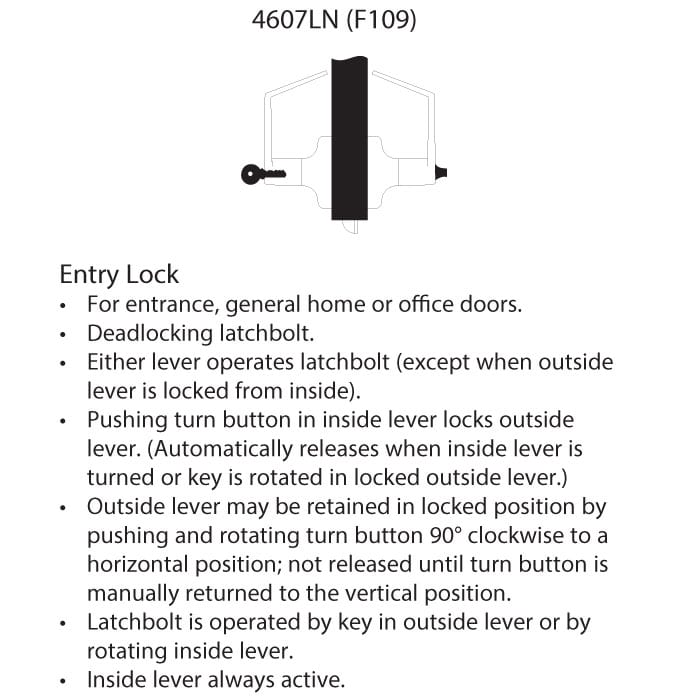

ANSI Function F109 - Turn/Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.
- Versatile: Field reversible handing and other product options offer flexibility in many commercial applications
- Economical: Priced affordably to suit projects of all budgets
- Secure: Quality security from a trusted brand for over 170 years
- Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and reliability
| ANSI/BHMA Standard |
Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000 Grade 2 |
|---|---|
| Backset |
2-3/4" |
| Brand |
Accentra (Formerly Yale) |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
6-pin conventional keyed different with 2 keys |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finish |
Satin ChromeDark BronzeBlack |
| Finishes |
626 Satin ChromeBSP Black Suede Powder Coat613e Dark Oxidized Satin Bronze equivalent |
| Fire Rating |
UL-cUL fire rated up to 3 hours |
| Handing |
Non-Handed |
| Keyway |
Accentra/Yale E1R (Para) KeywaySchlage C Keyway |
| Latch |
1/2” throw deadlocking - 1-1/8" x 2-1/4" face |

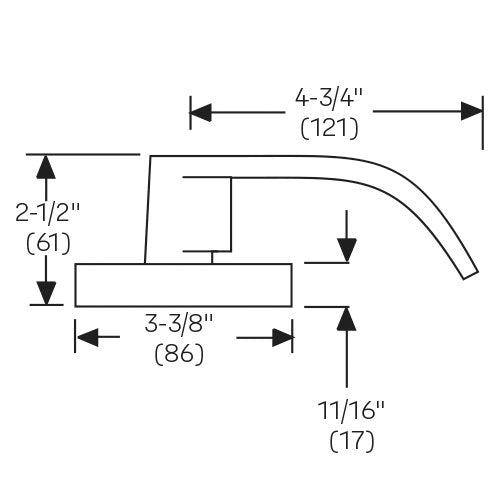

| Lever Design |
PB (Pacific Beach) |
| Lock Function |
Entry (Entrance) |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Medium Duty |
| Warranty |
3 Year |
