Product Overview

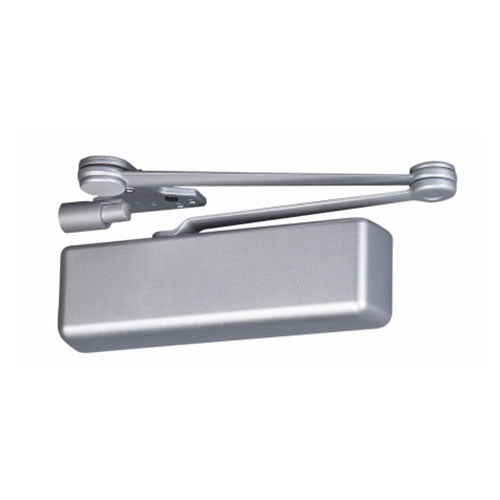

Accentra (formerly Yale) 5831 Heavy-Duty Non-Hold Open Parallel Arm with Spring and Removable Stop
- Holder/Stop Spring arms incorporate a buffer spring that provides greater protection at the end of the door opening cycle
- Spring is removable
- ANSI/BHMA Grade 1 Certified
- Adjustable spring sizes 1-6
- Non-handed

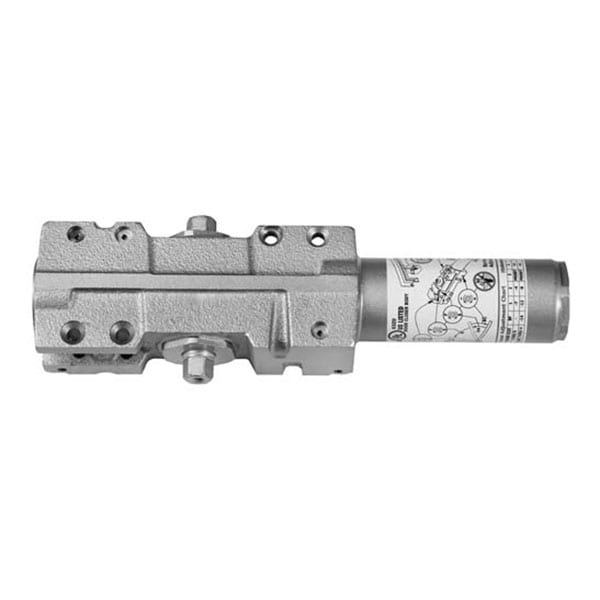

- Cast iron body
- Full plastic cover
- Spring power adjustment
- Sleeve nuts included with all models
| ANSI/BHMA Standard |
ANSI/BHMA A156.4 Grade 1 certified |
|---|---|
| Body Construction |
Cast Iron Body |
| Brand |
Accentra (Formerly Yale) |
| Cover |
Full Cover |
| Door Applications |
Hollow Metal Wood or Aluminum |
| Finish |
Dark BronzeBlackAluminum |
| Finishes |
690 Dark Bronze689 AluminumBSP Black Suede Powder Coat |
| Fire Rating |
UL Listed - UL10c compliant for positive pressure |
| Handing |
Non-Handed |
| Mounting Options |
Parallel Arm (Push Side) |
| Special Feature |
Extra Duty Parallel Arm with Spring Stop |
| Spring Size |
Adjustable Spring Size 1-6 |
| Templating (Hole Pattern) |
2-1/4" x 5" |
| Usage |
Heavy Duty |
