Accentra (Formerly Yale)

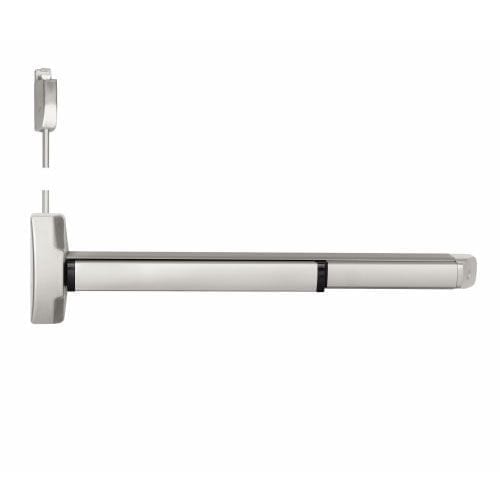

Accentra (Formerly Yale) 6170F LBR Fire-Rated Surface Vertical Rod Exit Device (Less Bottom Rod)

$707.65
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified

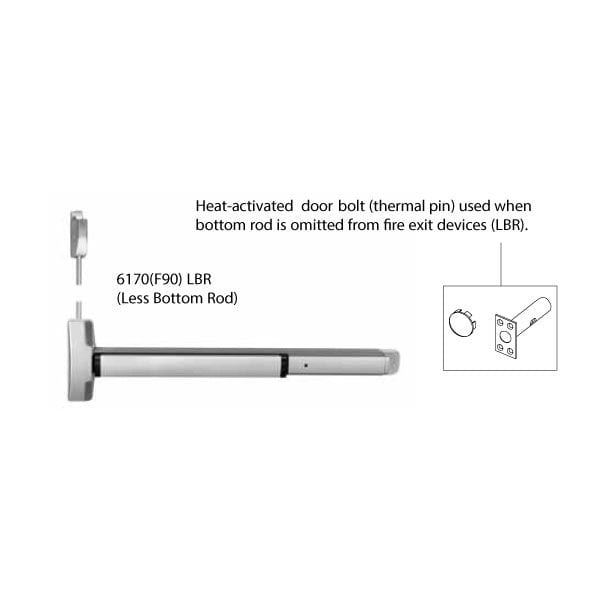

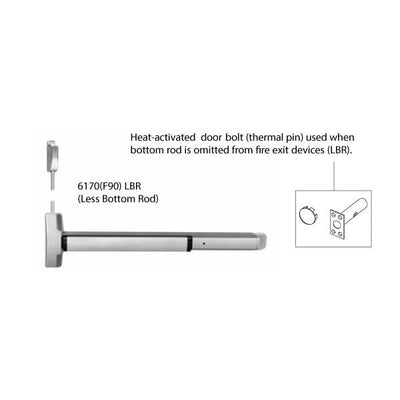

  • LBR (less bottom rod) with auxiliary fire bolt
  • Fire-rated up to 90 minutes

Available Options:

Clear

Product Overview

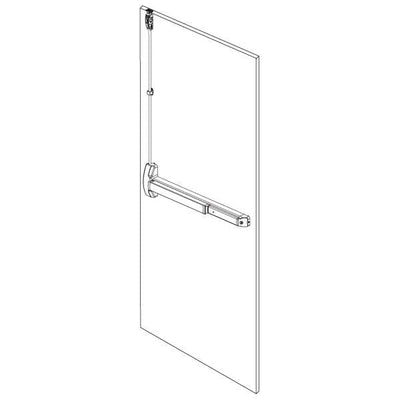

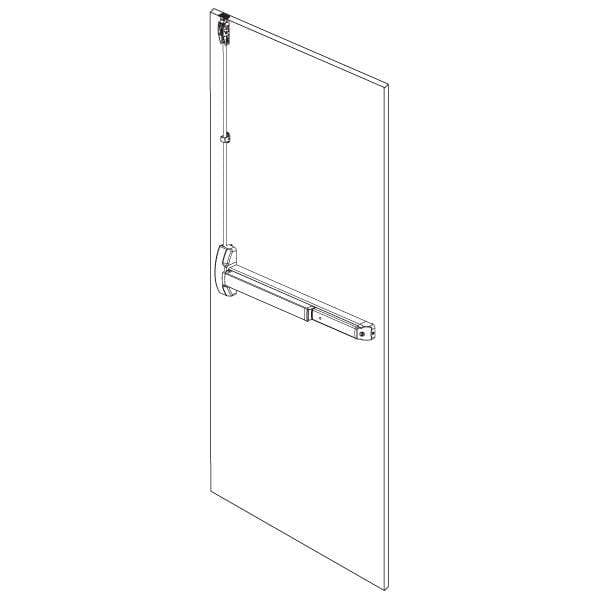

Accentra (formerly Yale) 6000 Series Wide Stile Surface Vertical Rod Exit Device, 6170F LBR, Fire-Rated, Less Bottom Rod, Exit Only, 7ft. Height Doors

With its robust, modern design and smooth, quiet operation, the 6000 Series exit device provides an attractive solution that can withstand the rigors of multi-family, retail, office, and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • Smooth, Quiet Operation: Unique design provides noise reduction and smooth operation of the touch bar
  • Stylish: Attractive, modern design blends aluminum rail with architectural finishes
  • Strong and Reliable: ANSI/BHMA Grade 1 certified for long life
  • Secure: Multiple security features provide added resistance against vandalism and authorized entry
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Device Type

LBR (Less Bottom Rod) Surface Rod Device
Door Applications

1-3/4" Metal wood or composite doors
Door Height

up to 7'0"
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Finish

BlackStainless SteelDark Bronze
Finishes

613e Dark Oxidized Satin Bronze equivalent630 Satin Stainless SteelBSP Black Suede Powder Coat
Fire Rating

UL Listed up to 90 Minutes
Handing

Non Handed – Completely Reversible
Latchbolt

3/4" pullman style with auto deadlatching
Length

48" (for 42" to 48" Doors)36" (for 30" to 36" Doors)
Minimum Stile Width

4-1/2"
Projections

3-1/4" active 2-1/2" dogged
Stile Type

Wide (Standard)
Strikes

726
Usage

Heavy Duty
Warranty

10 Years
