Accentra (Formerly Yale)

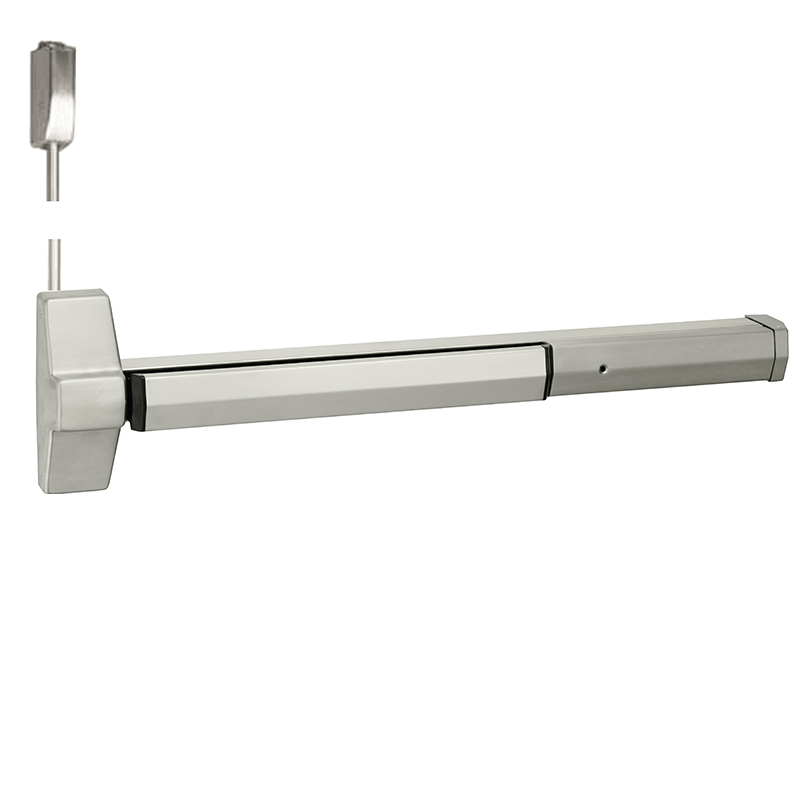

Accentra (Formerly Yale) 7170F LBR Fire-Rated Surface Vertical Rod Exit Device (Less Bottom Rod)

$1,653.56
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • 3' x 7' Surface Mounted Fire Exit Device
  • Less Bottom Rod (LBR) option

Available Options:

Clear

Product Overview

Accentra (formerly Yale) 7000 Series Surface Vertical Rod Exit Device, Less Bottom Rod, Fire-Rated, 7170F

Accentra 7000 Series Exit Devices deliver an unparalleled combination of durability, innovation, and aesthetics. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building. When the beauty of your facility matters almost as much as life safety.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • Certified ANSI/BHMA A156.3, Grade 1
  • ISO 9001: Designed and manufactured under a certified ISO 9001 quality system

Features

  • Designed for wide stile and flush doors
  • Handing - Field reversible
  • Interlocking top strike and latch mounting plate
  • Less bottom rod (LBR option)
  • Heat-activated door bolt (thermal pin) - Used when bottom rod is omitted from fire exit devices (LBR).
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Device Type

LBR (Less Bottom Rod) Surface Rod Device
Door Applications

1-3/4" Metal wood or composite doors
Door Height

up to 7'0"
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Finish

BlackDark BronzeBright BrassSatin BrassStainless SteelSatin Bronze
Finishes

630 Satin Stainless Steel605 Bright BrassBSP Black Suede Powder Coat612 Satin Bronze613e Dark Oxidized Satin Bronze equivalent606 Satin Brass
Fire Rating

Fire exit hardware (F) (8' x 10' pairs 1-1/2 hr.) (8' x 8' pairs 3 hr.)
Handing

Completely Reversible
Latchbolt

3/4" (19mm) throw pullman-type with automatic deadlatching
Minimum Stile Width

4-1/2"
Projections

3-1/4" active 2-3/4" dogged
Stile Type

Wide (Standard)
Strikes

726
Usage

Heavy Duty
