Product Overview

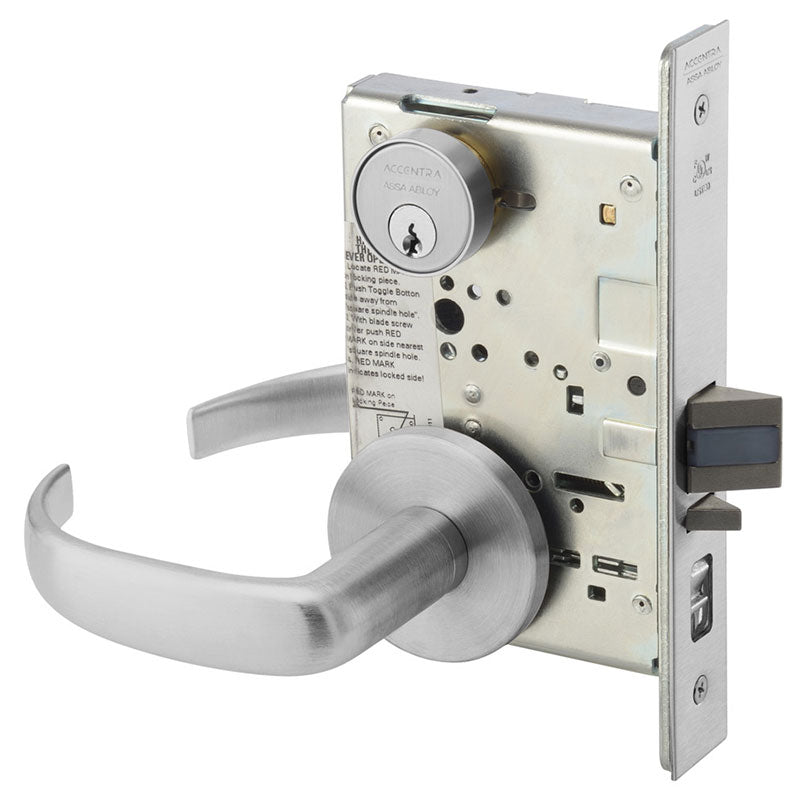

Accentra (formerly Yale) PBR8807FL ANSI/BHMA Grade 1 Certified Mortise Lock, Entry Function, Sectional Pacific Beach PBR Lever/Rose Trim
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

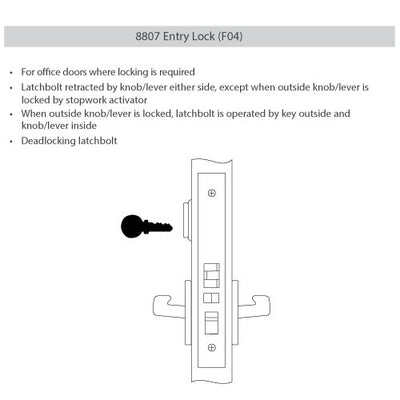

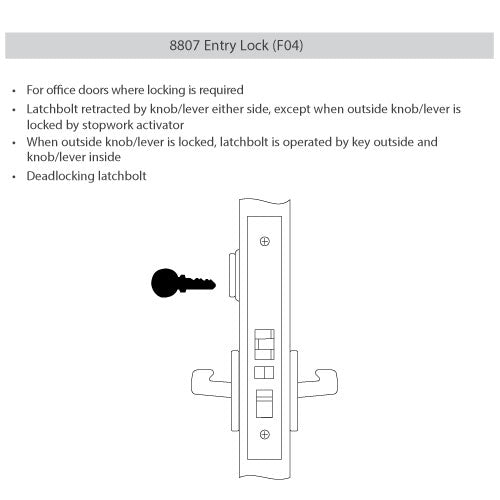

ANSI F04 – Entry – For office doors where locking is required. Latchbolt retracted by lever either side, except when outside lever is locked by stopwork activator. When outside lever is locked, latchbolt is operated by key outside and lever inside. Deadlocking latchbolt.
Requires Yale or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4″
- Latchbolt: 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Reversibility: Field reversible handing
| ANSI Function |
F04 |
|---|---|
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.13 Series 1000 |
| Armored Front |
8" x 1-1/4" |
| Backset |
2-3/4" |
| Brand |
Accentra (Formerly Yale) |
| Case |
wrought steel zinc dichromated |
| Cylinder |
Less Cylinder (no cylinder)2553 Schlage C Keyway2153 Accentra/Yale E1R Para Keyway |
| Door Thickness |
1-3/4" |
| Finish |
Satin Chrome |
| Finishes |
626 Satin Chrome |
| Fire Rating |
UL and cUL Listed - up to 3 Hours |
| Handing |
Right hand is standard; Reversible in the field |
| Latchbolt |
3/4" throw stainless steel one-piece anti-friction |
| Lever Design |
PBR (Pacific Beach) |
| Lock Function |
Entry (Entrance) |
| Strike |
4-7/8" Curved Lip Strike with a 1-1/4" lip length |
| Usage |
Heavy Duty |
| Warranty |
10 Years |
