Product Overview

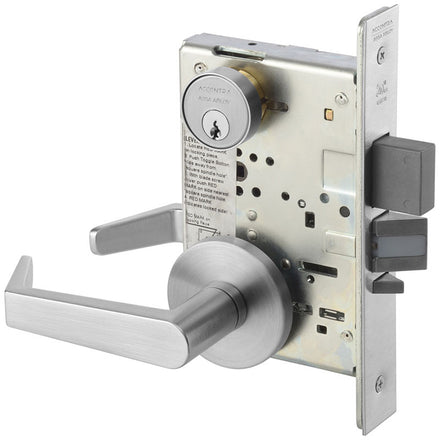

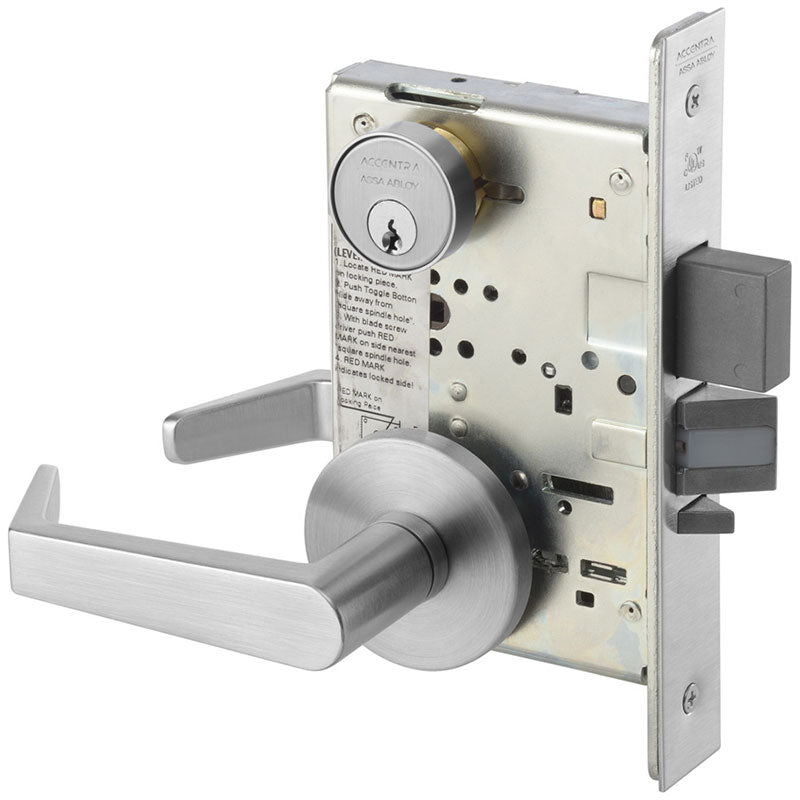

Accentra (formerly Yale) AUR8847FL ANSI/BHMA Grade 1 Certified Mortise Lock, Apartment Corridor/Entry Function, Sectional Augusta AUR Lever/Rose Trim
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

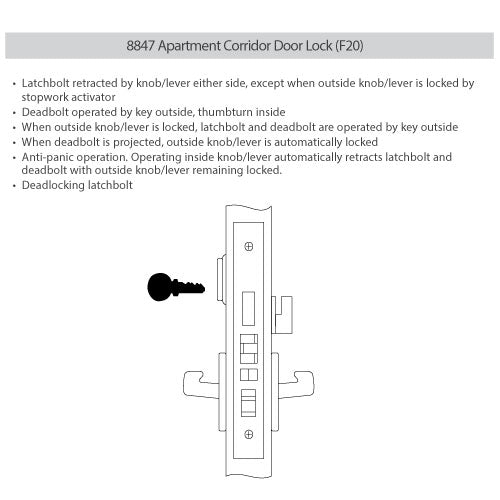

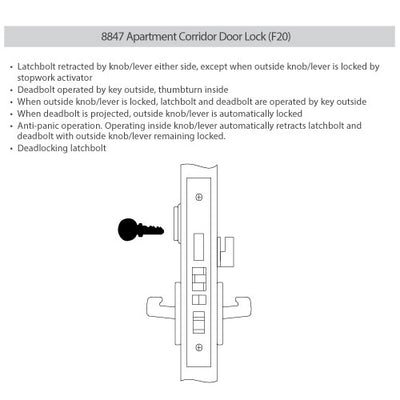

ANSI F20 – Apartment Entry – Latchbolt retracted by lever either side, except when outside lever is locked by stopwork activator. Deadbolt operated by key outside, thumbturn inside. When outside lever is locked, latchbolt and deadbolt are operated by key outside. When deadbolt is projected, outside lever is automatically locked. Anti-panic operation. Operating inside lever automatically retracts latchbolt and deadbolt with outside lever remaining locked. Deadlocking latchbolt.
Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4″
- Latchbolt: 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Reversibility: Field reversible handing
| ANSI Function |
F20 |
|---|---|
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.13 Series 1000 |
| Armored Front |
8" x 1-1/4" |
| Backset |
2-3/4" |
| Brand |
Accentra (Formerly Yale) |
| Case |
wrought steel zinc dichromated |
| Cylinder |
2153 Accentra/Yale E1R Para KeywayLess Cylinder (no cylinder)2553 Schlage C Keyway |
| Deadbolt |
Stainless steel 1” throw |
| Door Thickness |
1-3/4" |
| Finish |
BlackSatin ChromeDark Bronze |
| Finishes |
BSP Black Suede Powder Coat613e Dark Oxidized Satin Bronze equivalent626 Satin Chrome |
| Fire Rating |
UL and cUL Listed - up to 3 Hours |
| Handing |
Right hand is standard; Reversible in the field |
| Latchbolt |
3/4" throw stainless steel one-piece anti-friction |
| Lever Design |

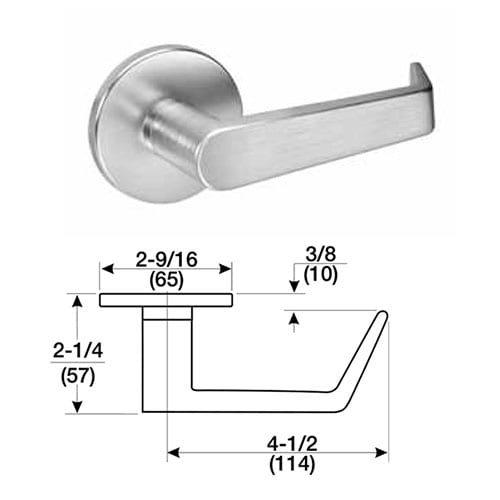

AUR (Augusta) |
| Lock Function |
Apartment Entry |
| Strike |
4-7/8" Curved Lip Strike with a 1-1/4" lip length |
| Usage |
Heavy Duty |
| Warranty |
10 Years |
