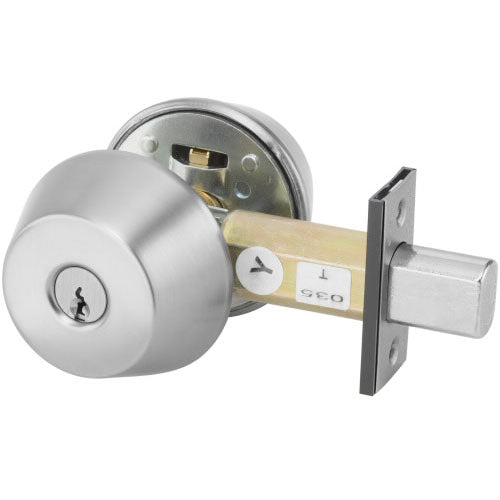

Accentra (Formerly Yale) D222 Double Cylinder Deadbolt

$91.31
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.36, Grade 2
  • Double cylinder - cylinder x cylinder
  • 1" throw solid steel deadbolt

Available Options:

Clear

Product Overview

Accentra (formerly Yale) D222 Double Cylinder Deadbolt, Grade 2, 2-3/4" Backset

Accentra D Series deadbolts are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required.

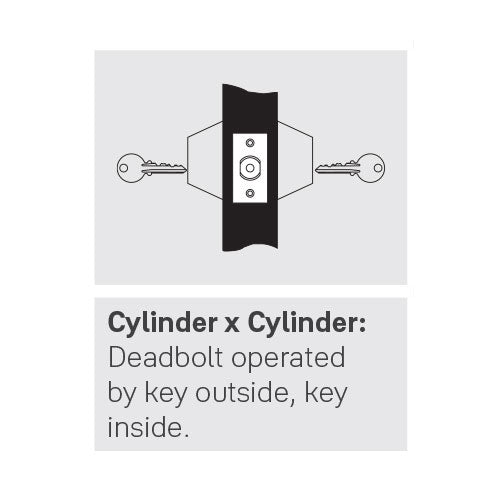

  • *Cylinder x Cylinder: Deadbolt operated by key outside, key inside.
  • 1" throw solid steel deadbolt with hardened, free spinning steel pin insert
  • Non-handed functions are easily field reversible
  • 2-3/4" backset
  • ANSI/BHMA Certified Grade 2

*Caution: Double cylinder locks on any door are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Fire Listings: D series deadbolts, when used in conjunction with the primary latching device, are uL - cuL listed for use with Classified steel covered composite or hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes. note: Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

ANSI Grade

Certified ANSI/BHMA A156.36 Grade 2
Backset

2-3/4"
Bolt

1" throw bolt 1" x 2-1/4" square corner face plate. 1-1/8" latch front filler supplied standard
Brand

Accentra (Formerly Yale)
Cylinder Format

Conventional
Deadbolt Type

Double Cylinder
Door Thickness

1-3/8" to 1-3/4"
Finish

BlackSatin Chrome
Finishes

626 Satin ChromeBSP Black Suede Powder Coat
Keyway

Accentra/Yale E1R (Para) KeywaySchlage C Keyway
Strike

1-1/8” x 2-3/4“ square corner
Usage

Medium Duty
