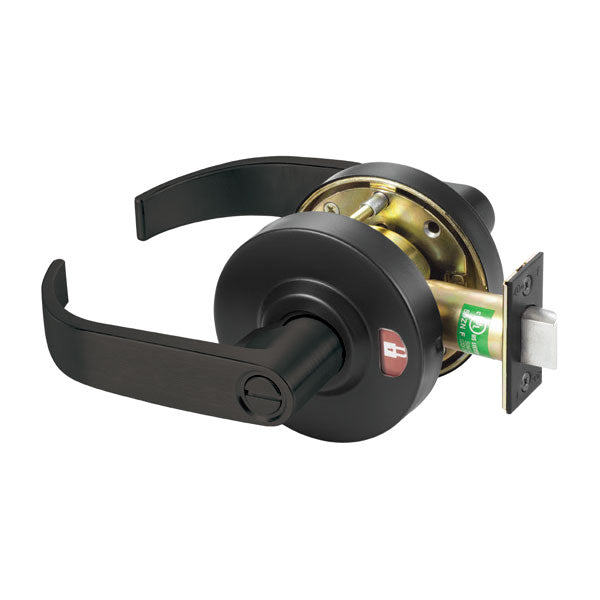

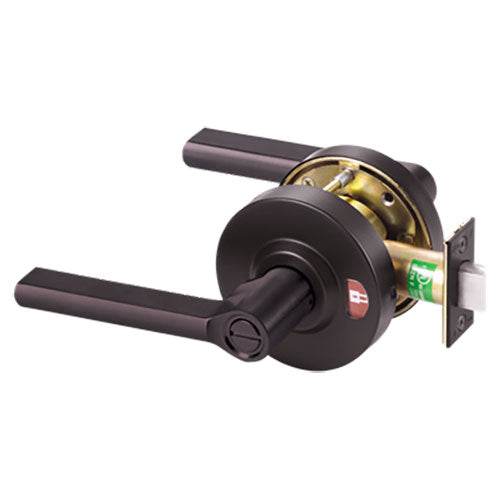

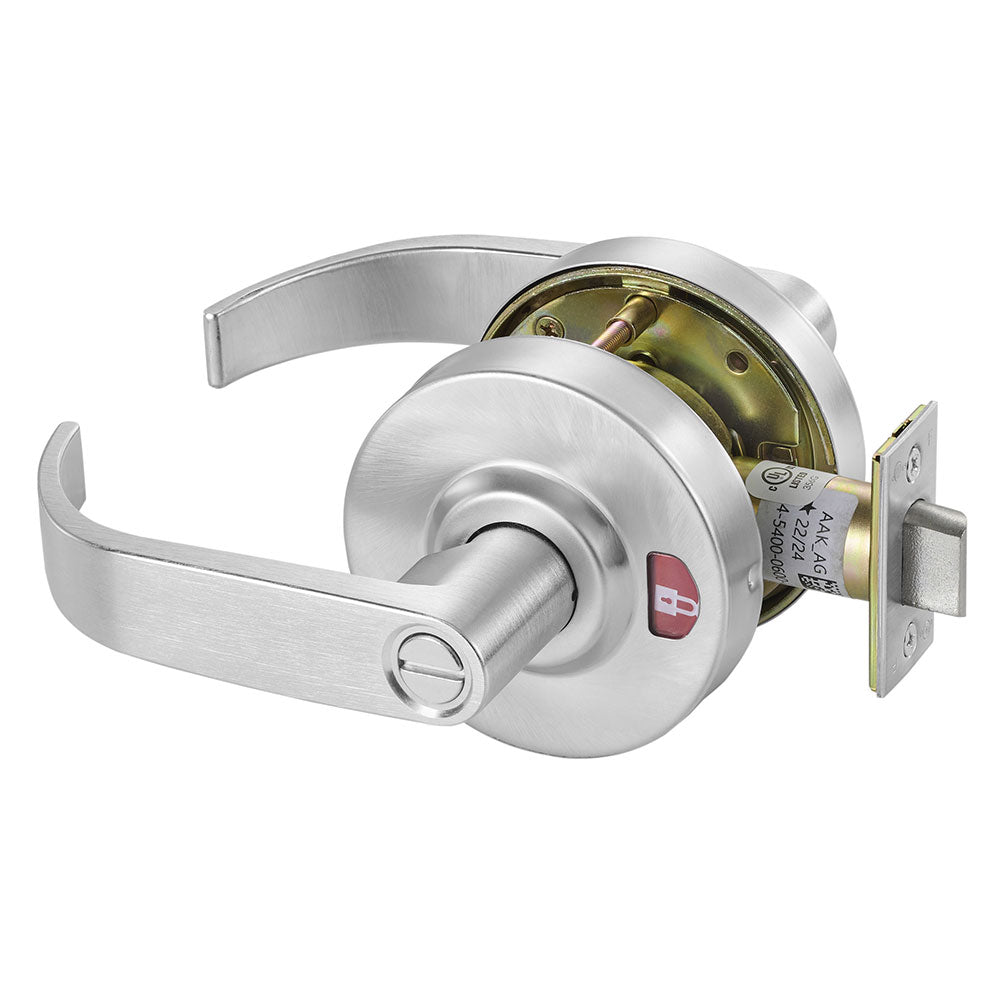

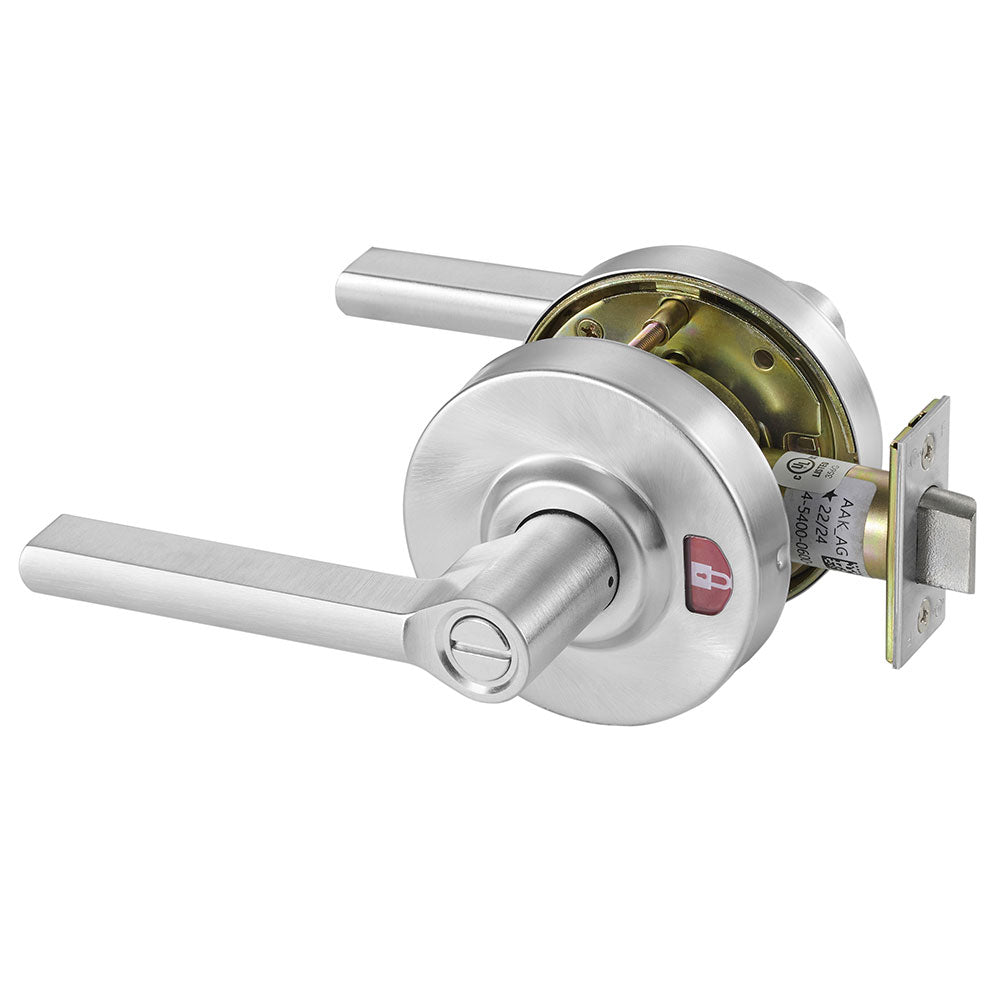

Accentra (Formerly Yale) YPL02 Heavy-Duty Cylindrical Indicator Lever Lock, Privacy Function

$173.81
Usually Ships:  Same Day
  • Heavy-Duty, BHMA/ANSI Grade-1 certified
  • Ideal for high-use commercial restroom doors
  • One of the only cylindrical indicator locks on the market

Available Options:

Clear

Product Overview

Accentra (formerly Yale) YPL Series Grade-1 Cylindrical Indicator Lock, 02 Privacy Function, AU (Augusta) Lever

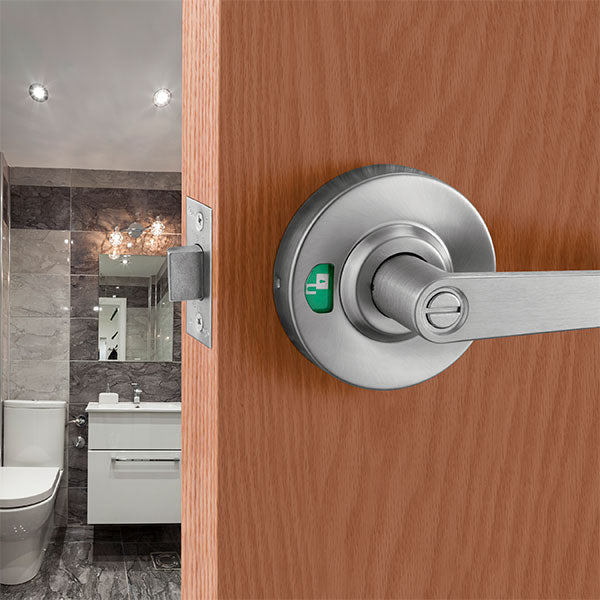

The cylindrical lock indicator visually displays door status; whether the door is locked or unlocked, thus eliminating potentially embarrassing situations and providing peace of mind.

YPL02 locks are provided standard with a visual display that shows red with a closed shackle padlock for locked and green with an open shackle padlock for unlocked. The padlock icons are positioned in a manner that allows for the locks to be non-handed.

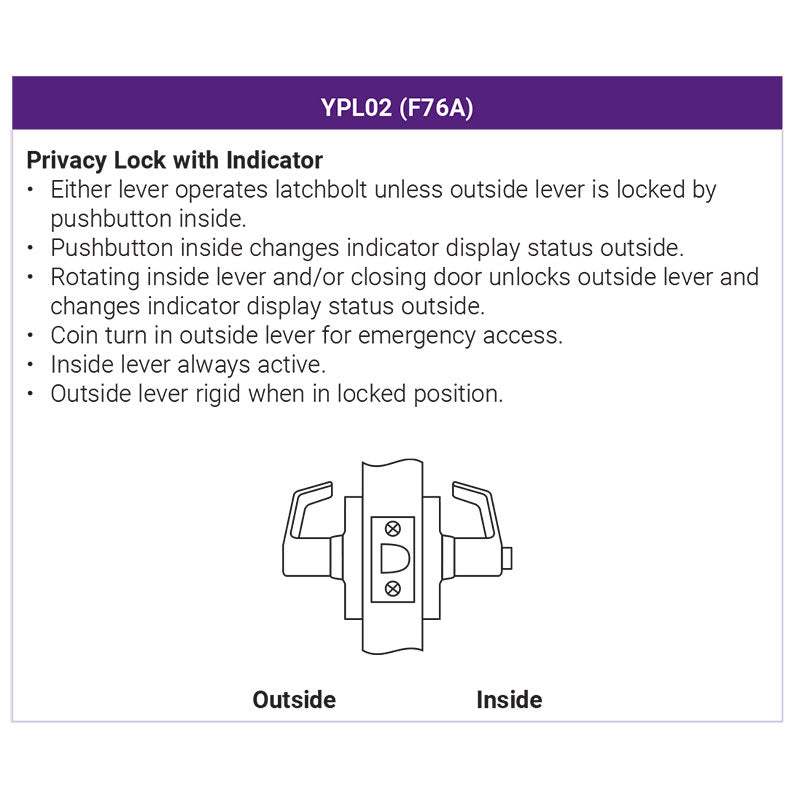

YPL02 (F76A) Privacy Lock with Indicator: Either lever operates latchbolt unless outside lever is locked by pushbutton inside. Pushbutton inside changes indicator display status outside. Rotating inside lever and/or closing door unlocks outside lever and changes indicator display status outside. Coin turn in outside lever for emergency access. Inside lever always active. Outside lever rigid when in locked position.

Features

  • Red or Green window display with padlock icon for visual door status
  • Cylindrical lock construction for durability and longevity in high-use applications (not the less durable tubular design of other indicator locks)
  • Privacy function (F76A) with push button lock and for automatic unlock when inside lever is pushed down
  • Using a standard bored lock door prep, this indicator lock is ideal for new construction or retrofit applications
  • One motion for egress
  • Coin turn for emergency access
  • Through-bolted for robust operation
  • Lever returns to within 1/2" of door face
  • UL Listed for 3 hour fire doors
  • ADA compliant lever
  • Patent pending
  • 2-3/4" backset latch supplied standard with all YPL02 locksets (see part number 378PL for 2-3/8" backset)
  • The YPL02 installs on 1-3/4" thick doors standard. It can also be used on 1-3/8" thick doors by adding adapter plates. See adapter plate kit model number APK-2.

Applications

  • Office buildings
  • Restaurants
  • Schools
  • Hospitals
  • Warehouses
  • Airports
  • Places of Worship
  • Convenience Stores
  • Gas Stations
  • Travel Centers

YPL-Codes

ANSI/BHMA Standard

Certified Grade 1 ANSI/BHMA A156.2 Series 4000
Backset

2-3/4"
Brand

Accentra (Formerly Yale)
Construction

Cylindrical lock construction for durability and longevity in high-use applications
Door Applications

Metal or Wood Doors
Door Thickness

1-3/4"
Finish

Satin ChromeBlackDark BronzeBright Brass
Finishes

613e Dark Oxidized Satin Bronze equivalent605 Bright BrassBSP Black Suede Powder Coat626 Satin Chrome
Fire Rating

UL Listed for 3 hour fire doors
Handing

Completely Reversible
Latchbolt

Plain 2-3/4" backset x 1-1/8" square corner front with 1/2" throw standard

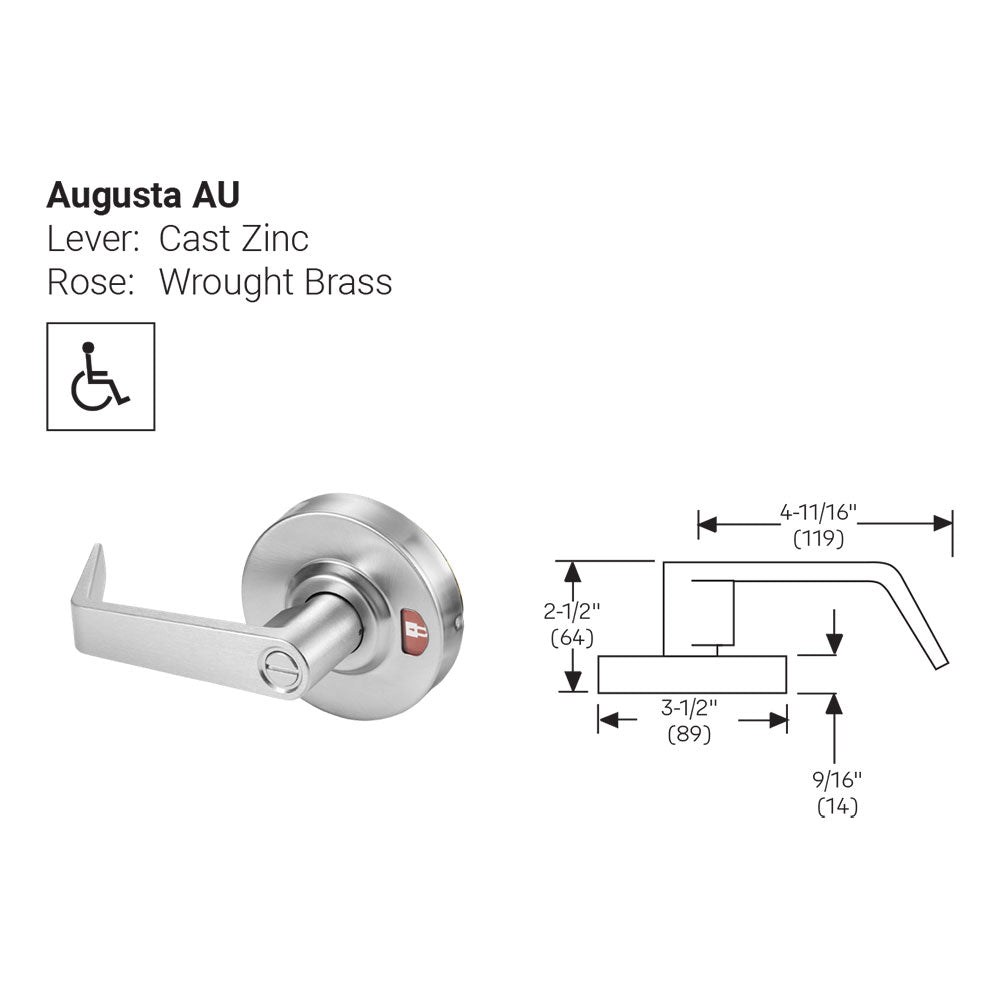

Lever Design

AU (Augusta)
Lock Function

Privacy w/ Indicator
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Warranty

3 Year
