Adams Rite

Adams Rite 8800 Narrow Stile Rim Exit Device for Aluminum Doors

$335.17
This item ships FREE! Usually Ships:  1-2 Business Days
  • For aluminum doors (minimum 2" stile)
  • Patented “Starwheel” bolt interlocks door to frame
  • Clean sight lines, easy to intstall

Available Options:

Clear

Product Overview

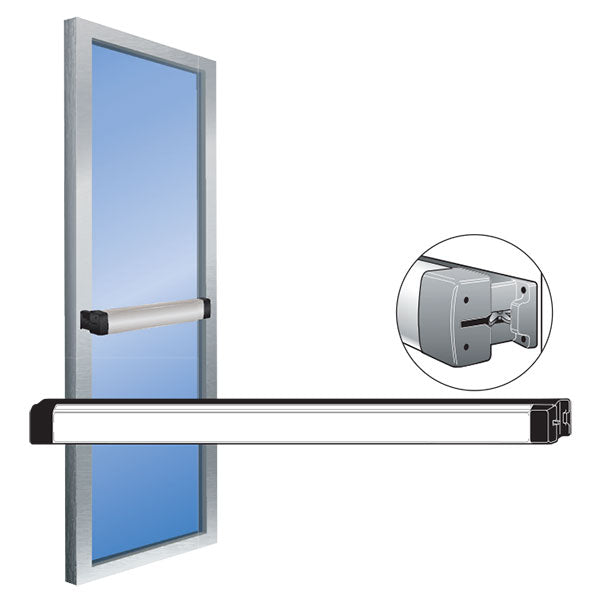

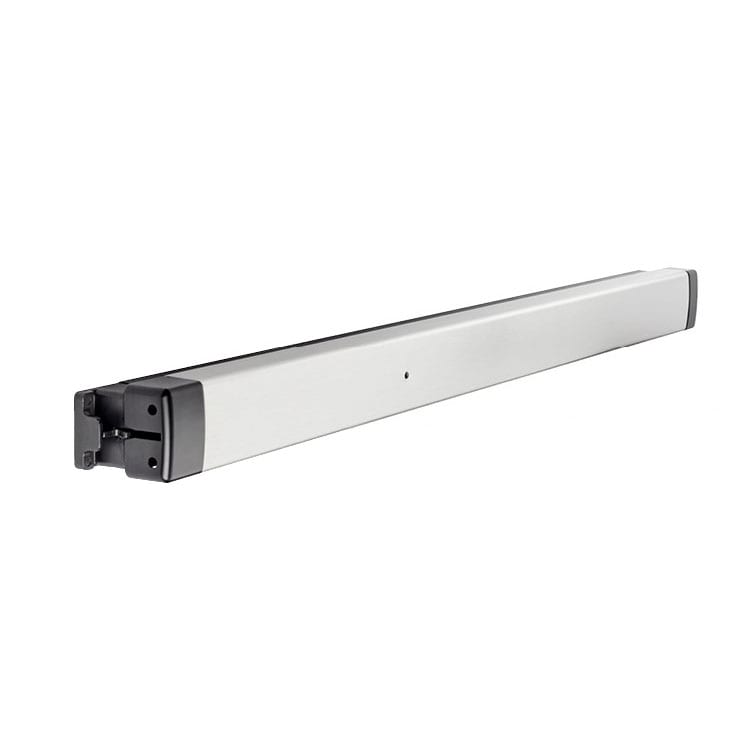

Adams Rite 8800 Series (Life-Safety) Narrow Stile Starwheel Rim Exit Device

This Adams Rite 8800 rim exit device is for aluminum stile glass storefront doors. A patented "Starwheel" bolt interlocks the door to the frame. The 8800 offers an unobtrusive design for clean sight lines. Designed for use in applications with single doors or pairs of doors with a mullion.

  • Patented “Starwheel" bolt interlocks door to frame
  • Strong, durable construction for a high level of security
  • Unobtrusive design for clean sight lines
  • ANSI/BHMA A156.3, Grade 1
  • UL Listed UL 305 Panic Hardware
  • Standard sizes: dimensioned for 36" 42", and 48" openings. Standard width bars can be field cut to the next smallest opening width.
  • Available in Aluminum (8801), Dark Bronze (8802), and Black (8803)
ANSI Grade

ANSI/BHMA A156.31 Grade 1
Brand

Adams Rite
Dogging Feature

Half turn hex dogging standard
Door Applications

1-3/4" Aluminum Doors
Fasteners

Standard self-tapping screws
Finish

Dark BronzeAnodized AluminumBlack
Finishes

628 Anodized Aluminum335 Black Anodized313 Duranodic Dark Bronze
Fire Rating

Non-Fire-Rated
Handing

Non-Handed
Length

36"42"48"
Projections

2-5/8" when fully projected 1-5/8" when dogged
Stile

Minimum 2" Stile. Fits narrow medium and wide stile aluminum doors
Stile Type

Narrow
Strike

Standard strike and narrow versions for centering doors in 4"jamb (both strikes included)
Usage

Medium Duty
