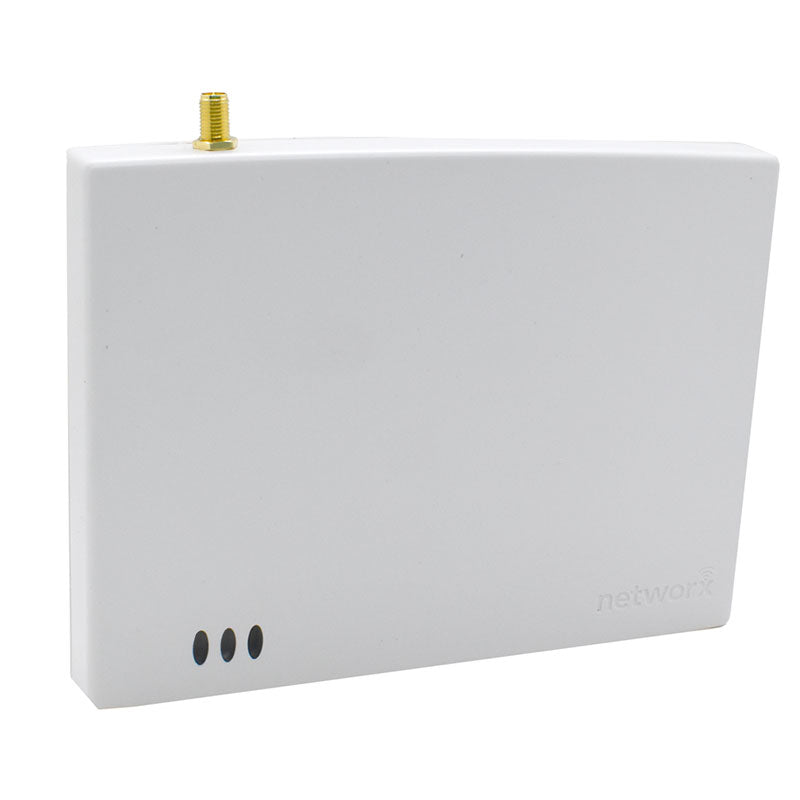

Alarm Lock AL-IM3-80211 Generation 3 Hardwire & Wireless Gateway

$317.59

This item ships FREE! Usually Ships: 1-2 Business Days

Interface up to 63 Networx locks with a PC network
Network via a hardwire ethernet connection &/or wirelessly via a bi-directional radio
3 LED indicators display the gateway's operational status

Quantity:

Added to Cart

Alarm Lock AL-IM3-80211 Gen. 3 Hardwire & Wireless Gateway

The Trilogy Networx 3rd Generation Gateways interface up to 63 Networx locks with a PC network. The new 80211 model now features networking via either a hardwire Ethernet connection &/or wirelessly via a bi-directional radio. Similar in function to the original Networx Gateway Modules, and able to be intermixed with them, but now featuring dual mode installation flexibility and new "Offline- Preconfiguration" from any smart device or PC/laptop, i.e., enabling setup prior to getting on the job-site. Gen 3 Gateways require DL-WINDOWS version 5.5 +, support up to 7 of the same AL-IME2 Expanders (which extend the range up to 100 feet) ; 3 LED indicators display Gateway's operational status.

Network gateway for Networx lock systems
Expand your Networx lock system with up to 7 Expanders (AL-IME2-EXP) – Note expanders cannot communicate with older Gen 1 Gateways
Mount within 175 feet* (radially) from the intended wireless lock location(s)
Expanders should be mounted in elevated areas – recommended mounting position 6 to 12 in. below standard 8-9 foot ceiling
Cost-effective and easier to wire than conventional gateways
Networx system automatically identifies all newly powered Expanders and quickly self-determines the best wireless signal pathways
Each Gen. 3 Gateway and a maximum of seven (7) Expanders can be addressed as one group
Total of 99 addressable groups supported (addressable by two rotary switches)
