Product Overview

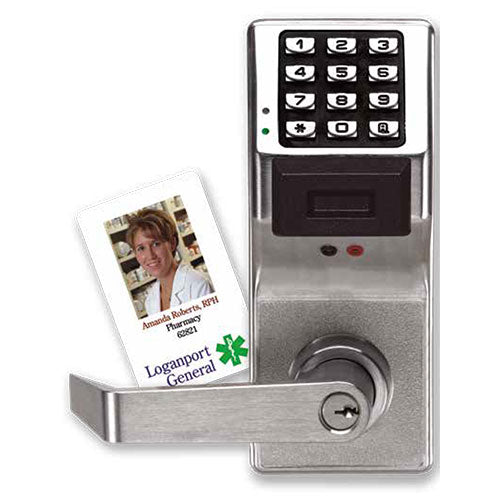

Alarm Lock PDL3000 US26D Pushbutton Cylindrical Door Lock, with Prox Reader, 300 Users, 1600 Event Audit Trail, Straight Lever, Satin Chrome
Trilogy prox locks with audit trail capabilities - Standalone access control systems with audit trail feature for indoor and outdoor applications
- Use the same ID cards as hardwired access systems & install in an hour
- Save all the downtime and 1/2 the cost of hardwired systems
- Rugged clutch mechanism and Grade 1 durability ensure long life
- Built-in HID Prox reader for entry with HID125KZ prox ID cards and keyfob credentials
- 500 scheduled events, including 4 quick schedules for programming the 4 most common time schedules in one step
- 2000 user codes including: Master, manager, supervisor, and basic user. Users are individually programmed to use a card only, code only, or for the highest security, both card, and code. (3-6 digits) and/or accepts HID prox cards and keyfobs.
- Weatherproof performance, operational temperature range of -31°F to +151°F (-35°C to +66°C)
- Entry allowance from 3-15 seconds
- Greater security with temporary keypad lockout after 6 unsuccessful code-entry attempts
- Up to 40,000 event audit trail with time/date stamp for a printable record of door access activity by user
- Real-time clock allows logging of events to within 1 second of accuracy
- Programmable relays energize when one or more selected events occur
- Easy to install in about an hour retrofits most cylindrical locksets and digital locks
- Battery operated; uses 5 AA batteries; 60,000 cycles, typical.
| ANSI Grade |
ANSI Grade 1 |
|---|---|
| Backset |
2-3/4" |
| Brand |
Alarm Lock |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
5-pin or 6-pin conventional keyed different with 2 keys |
| Door Applications |
Interior or Exterior Doors |
| Door Thickness |
1-3/4" |
| Finish |
Satin Chrome |
| Finishes |
US26D (626) Satin Chrome |
| Handing |
Non Handed – Completely Reversible |
| Keyway |
Schlage C Keyway |
| Latch |
1/2” throw deadlocking - 1-1/8" x 2-1/4" face |
| Lock Function |
Pushbutton Keypad |
| Lock Type |
Cylindrical Lock |
| Power |
5 AA alkaline batteries are now rated at 200000 cycles supplied |
| Reader Type |
KeypadProximity |
| Strikes |
1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included |
| Usage |
Heavy Duty |
