Von Duprin

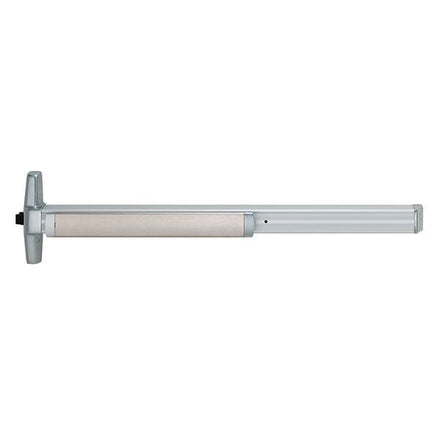

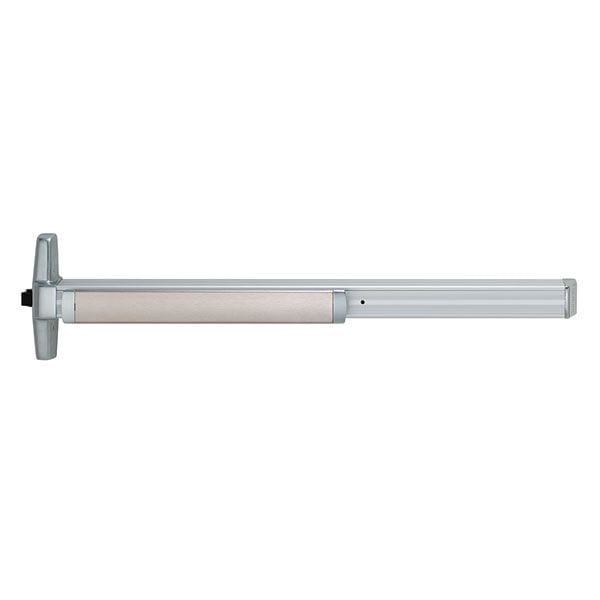

Von Duprin 33A-EO Narrow Stile Rim Exit Device

$1,381.38
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Typically used with aluminum doors
  • Fits door stiles as narrow as 1-3/4"

Available Options:

Clear

Product Overview

Von Duprin 33AEO Grade 1 Rim Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, Hex Key Dogging

The 33 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. The 33 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources and more.

  • EO = Exit Only, ANSI Function 01 (33A/35A Series Outside Trim Sold Separately)
  • For use with single doors or double doors with mullions
  • Deadlocking latchbolt standard
  • Stock Sizes: 3' and 4' - can be cut to size in the field

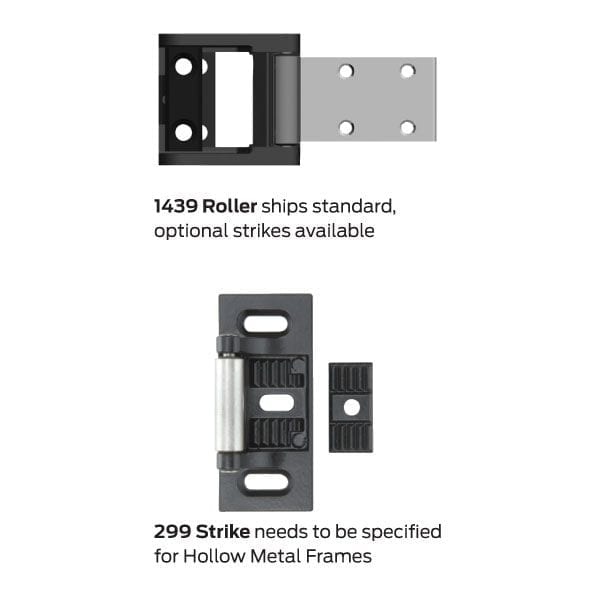

  • 1439 Strike Standard
  • ANSI/BHMA Certified, Grade-1
  • UL listed for panic exit hardware

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Dogging Feature

Half turn hex dogging standard
Finish

Satin ChromeAnodized AluminumDark BronzeBlack
Finishes

313 Duranodic Dark BronzeUS26D (626) Satin ChromeUS19 (315) Flat BlackUS28 (628) Anodized Aluminum
Fire Rating

Non-Fire-Rated
Hand

Non-handed
Latchbolt

Deadlatching 3/4" throw
Length

4'0" (3'1" to 4'0" Doors)3'0" (2'4" to 3'0" Doors)
Stile

1-3/4" Minimum
Stile Type

Narrow
Strikes

1439 Standard
Usage

Heavy Duty
