Best

Best (Formerly Stanley) 2060R - 4.5" x 4.5" UL Listed Spring Hinge

$17.40
Usually Ships:  1-2 Business Days
  • UL Listed (fire-rated)
  • For automatic closing of door
  • Includes screws for metal and wood doors

Available Options:

Clear

Product Overview

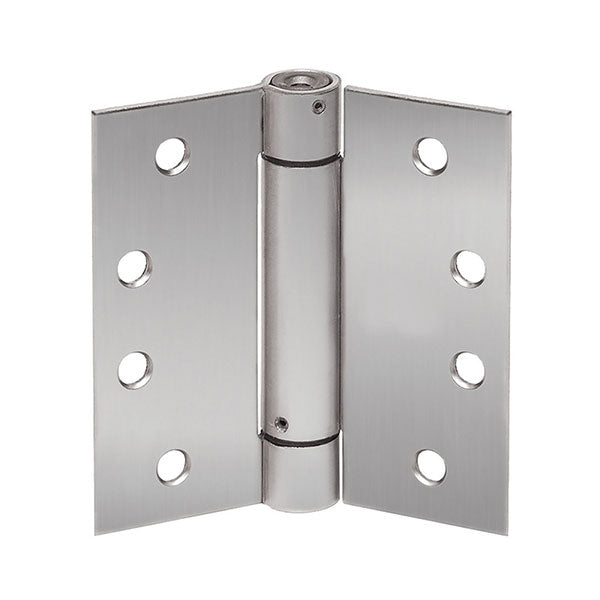

Best 2060R 3-Knuckle Spring Hinge, Standard Weight, 4-1/2" x 4-1/2"

Stanley Hinges are being re-branded and will soon be known as Best Hinges. Packaging may change but it’s still the same quality hinge you have relied on for decades from Stanley. Depending on stock levels and availability these hinges may be shipped with the Stanley or Best packaging.

BEST Spring hinges are self-closing hinges. A spring mechanism in the barrel allows the hinges to automatically close a door.

With field-adjustable closing power, the spring hinge line consists of standard commercial grade door hinges. Our spring hinges are ideal for wood and metal doors, medium to heavy weight doors and low to medium frequency usage applications.

In addition, these steel and stainless steel hinges are available for interior applications and are approved for use on fire-rated doors.

3 Knuckle Spring Full Mortise Hinge

  • 2060R – (ANSI K81071F) Square corners – steel-polished and plated or phosphated and prime coated for painting
  • 2060R (32D) – (ANSI K51071F) Square corners – stainless steel – satin finish
  • For labeled fire doors, stairwell doors, motel and hotel guest room doors, apartment unit entrance doors
  • Meets NFPA80 standard for 3 hour fire doors (NFPA-80 stipulates minimum of 2 spring hinges shall be used on labeled doors)
  • UL listed for door up to 4' x 8' (1219 x 2438mm)
  • Limited lifetime warranty for the life of the building

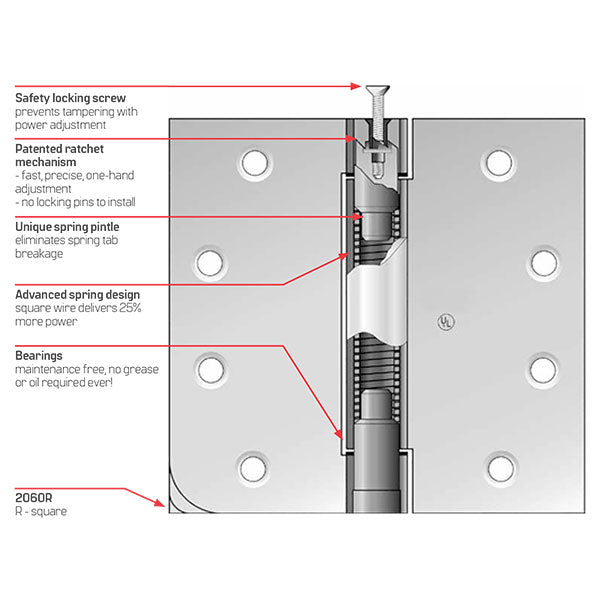

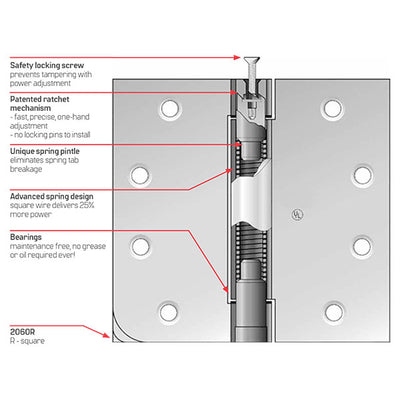

  • Internal ratchet mechanism eliminates loose adjustment pins
  • Closing power is adjustable up or down
  • Excellent alternative to more expensive overhead mounted closers
ANSI/BHMA Standard

ANSI K51071F
Brand

Best
Finish

Prime CoatSatin BrassSatin ChromeOil Rubbed BronzeBlackStainless SteelSatin BronzeBright ChromeBright Brass
Finishes

639 Satin Bronze651 Bright Chrome600 Prime Coat630 Satin Stainless Steel1D Flat Black640 Oil Rubbed Bronze652 Satin Chrome632 Bright Brass633 Satin Brass
Fire Rating

UL listed for use with fire rated doors
Gauge

0 .134
Material

1040 steel or 304 series stainless steel
Size

4.5" x 4.5"
Special Feature

Spring Hinge
Usage

Medium Duty
