Best

Best HD8016 AF80P Door Closer

$406.82
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, BHMA/ANSI Certified Grade-1
  • Adjustable spring size 1-6
  • Regular, top jamb, or parallel arm mount

Available Options:

Clear

Product Overview

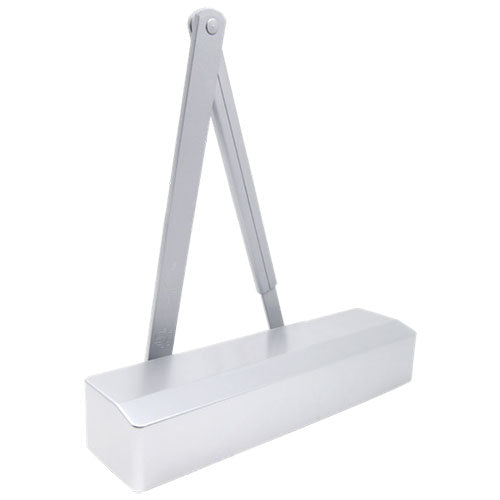

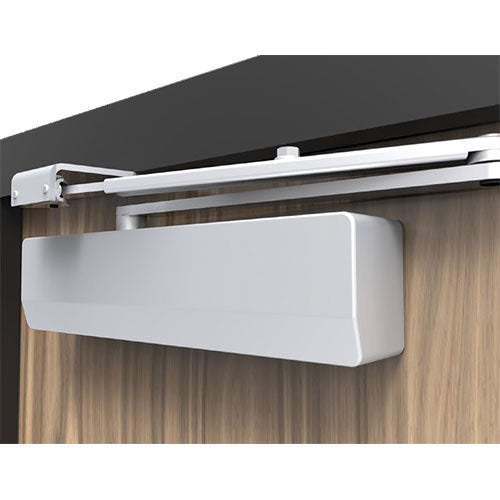

Best HD8016 AF80P Grade 1 Heavy Duty Surface Door Closer, Adjustable Size 1-6, Flat Form Arm, Tri-Pack, Non-handed

The HD8000 Heavy-Duty door closer provides maximum protection against fatigue and abrasion. This Grade 1 certified closer is built to meet the requirements of ANSI A156.4, comply with barrier-free requirements, and can be used with a wide array of doors and frames.

Versatile, durable, and reliable, featuring modern styling for institutional or high-traffic commercial applications.

  • AFP80 = Flat form arm, tri-pack (standard)
  • Housed in corrosion-resistant aluminum with a hardened pinion/piston providing toughness and high-strength
  • The arm hub is made from forged steel
  • Standard back-check protects the door and frame while controlling the door from abrupt opening
  • ANSI/BHMA A156.4 Grade 1 certified
  • UL and CUL listed
  • Meets ANSI/BHMA A117.1 and ADA for barrier-free accessibility

Applications

  • Education, K-12 & Universities
  • Healthcare facilities
  • Government offices & facilities
  • Transportation/Airports
  • Other commercial applications

codes

ANSI/BHMA Standard

ANSI/BHMA Grade 1 156.4 standards
Body Construction

Cast Aluminum Body
Brand

Best
Cover

Full Cover
Fasteners

SNDTPK - Standard fasteners include separate self-drilling and self-tapping and sex nuts for 1-3/4" thick doors and machine screws
Finish

BlackAluminumDark Bronze
Finishes

689 Aluminum695 Dark Bronze693 Black
Fire Rating

UL and cUL Listed – up to 3 Hours
Handing

Non-Handed
Mounting Options

Top Jamb (Push Side)Regular (Pull Side)Parallel Arm (Push Side)
Spring Size

Adjustable Spring Size 1-6

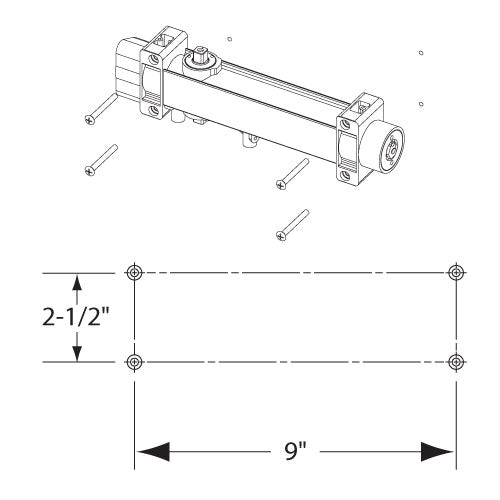

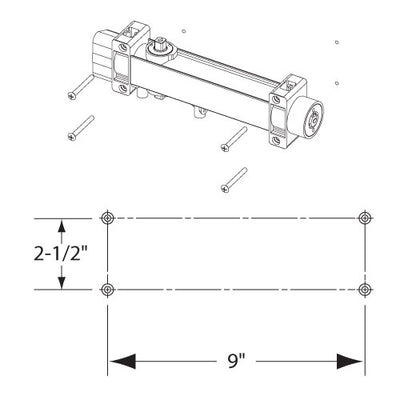

Templating (Hole Pattern)

2-1/2" x 9"
Usage

Heavy Duty
Warranty

30 Years
