Cal-Royal A7700EO/AF7700 Panic Rim Exit Device

$369.77

This item ships FREE! Usually Ships: 1-2 Business Days

Heavy Duty, ANSI/BHMA Grade-1 Certified
Non-handed and easily reversible
Exit Only (trim sold separately)

Available Options:

Clear

Finish
Length
Fire-Rated

Quantity:

Added to Cart

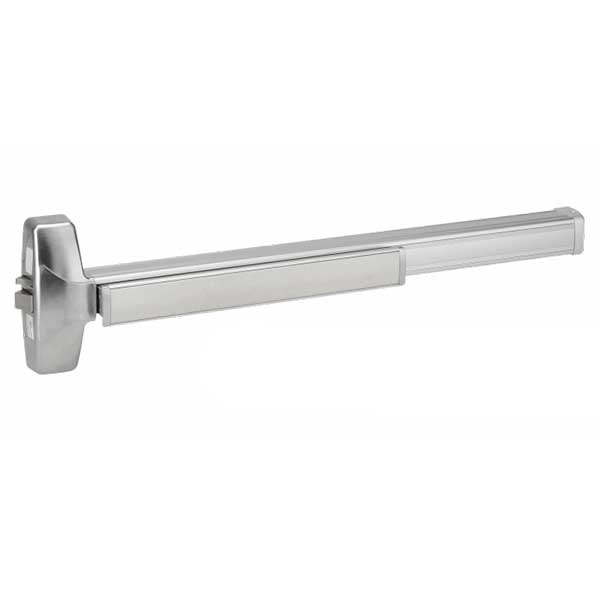

Cal-Royal A7700 & AF7700 ADA Series Grade-1 Rim Exit Device, Exit Only

The 7700 Series rim exit device offers uncompromising security and safety and is used in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.

Exit Only - (Outside Trim Sold Separately)

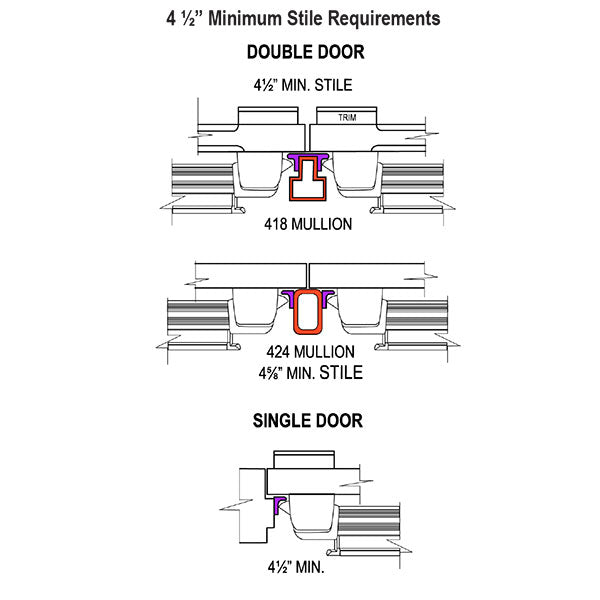

For use with single doors or double doors with mullions
Non-handed and easily reversible
A7700EO36 = 32" actual length, for 30" to 36" door widths
A7720EO48 = 44" actual length, for 38" to 48" door widths
F prefix = Fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3-hour fire labeled installations
UL Listed for Panic and ULC10C, UBC 7-2-1997 codes
Conforms & Meets ADA Regulations.
Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
Retrofits Von Duprin 99 & 98 Series using 7700 escutcheon trim

ANSI Grade	ANSI Grade 1
ANSI/BHMA Standard	ANSI A156.3 Grade 1
Brand	Cal-Royal
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Finish	BlackStainless SteelDark Bronze
Finishes	US10B (613) Oil Rubbed BronzeL1 BlackUS32D (630) Satin Stainless Steel
Fire-Rated	Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging)
Fire Rating	UL Listed 3 Hour Rated
Handing	Non Handed – Completely Reversible
Latchbolt	Stainless steel 3/4” throw with anti-pick feature
Length	3'0" (2'6" to 3'0" Doors)4'0" (3'4" to 4'0" Doors)
Stile Type	Wide (Standard)
Strike	938 packed standard
Usage	Heavy Duty
Warranty	Limited Lifetime Warranty
