Cal-Royal A9800EO/AF9800 Panic Rim Exit Device

$310.61

This item ships FREE! Usually Ships: 2-3 Business Days

Heavy Duty, ANSI/BHMA Grade-1 Certified
Non-handed and easily reversible
Exit only (trim sold separately)

Available Options:

Clear

Finish
Length
Fire-Rated

Quantity:

Added to Cart

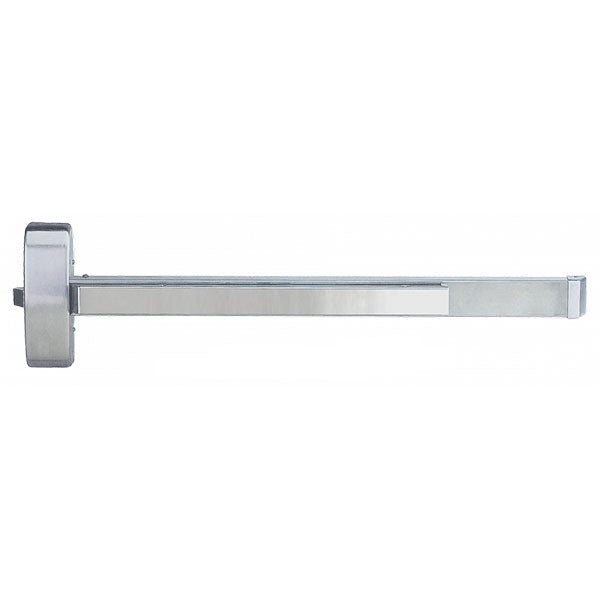

Cal-Royal A9800 & AF9800 ADA Series Grade-1 Rim Exit Device, Exit Only

The 9800 Series offers uncompromising security and safety in single and double fire exit doors. For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.

Exit Only - (Outside Trim Sold Separately)
Non-handed and easily reversible
UL and ULC Listed: 9800 Series for panic. F9800 Series for fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes
Conforms & Meets ADA Regulations
Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
Retrofits Sargent 8800 Series using 9800 escutcheon trim

ANSI/BHMA Standard	Certified ANSI/BHMA A156.3 Grade 1
Brand	Cal-Royal

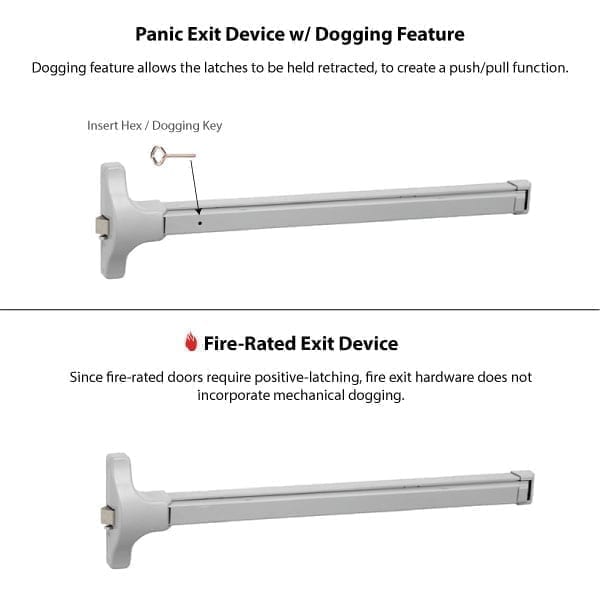

Dogging Feature	Hex key dogging standard on non-fired-rated devices
Door Thickness	1-3/4"
Finish	Satin BrassStainless SteelBlackDark BronzeBright Brass
Finishes	US4 (606) Satin BrassUS32D (630) Satin Stainless SteelL1 BlackUS3 (605) Bright BrassUS10B (613) Oil Rubbed Bronze
Fire-Rated	Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating	UL Listed 3 Hour Rated
Handing	Non Handed – Completely Reversible
Latchbolt	Stainless steel 3/4” throw with anti-pick feature
Length	36" (For 30” to 36” doors)32" (For 26” to 32” doors)48" (For 37” to 48” doors)24" (For 22” to 24” doors)
Projections	2-1/2" active 1-3/4" dogged

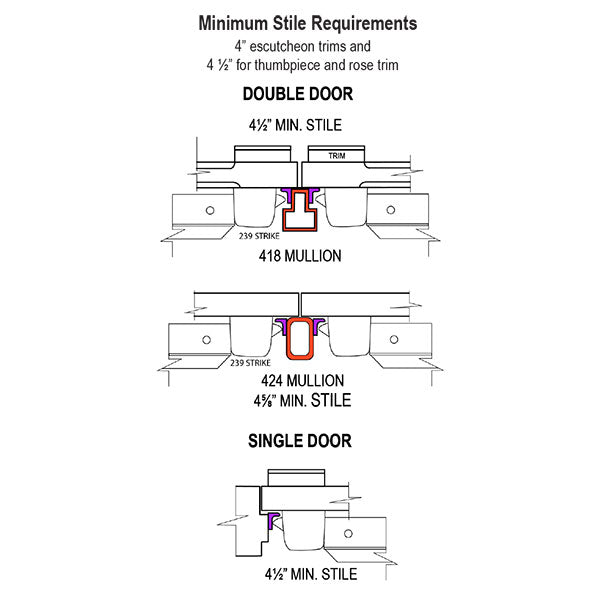

Stile Type	Wide (Standard)
Strike	239 packed standard
Usage	Heavy Duty
Warranty	Limited Lifetime Warranty
