Cal-Royal NESC22-EL/EU Electrified Lever Trim for 2200 Series Exit Devices

$389.63
This item ships FREE! Usually Ships:  2-3 Business Days
  • For use with 2200 exit devices
  • Voltage: 11-30VDC / 10-24VAC
  • Includes mortise cylinder (Schlage C keyway)

Available Options:

Clear

Product Overview

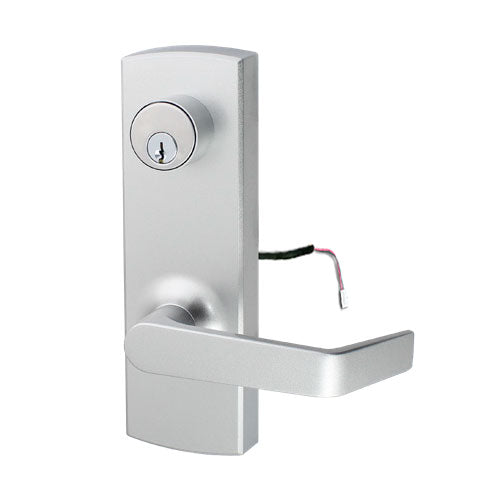

Cal-Royal NESC22-EL/EU Electrified Lever Trim for 2200 Series Exit Devices


Cal-Royal’s electrified lever trim provides remote locking and unlocking capabilities using industry safety standards. The solenoid can be energized from a distant controller, thus allowing access control of the opening. The control of stairwells in high-rise buildings is a common application for this trim, where electric pullback of the exit device’s latch bolt is cost prohibitive or not required. This is especially practical in applications where fire/life safety codes require a “fail-safe” condition which is not an option with electrified latch pullback devices. Because the current draw is quite low there is no need for a more expensive power supply to provide the surge current.
Features
  • Continuous duty solenoids used to insure trouble-free operation
  • Internally mounted solenoid to ease installation
  • Requires additional door prep
  • No Hassle 3-Year Warranty
Specifications
  • Solenoid.................... Continuous Duty
  • Operating Voltage..... 11-30VDC / 10-24VAC
  • Amperage................. 330mA @ 11V or 140mA @ 30V
  • Coil Resistance......... 8.2 Ω
  • Function.................... Available Fail Safe, Electrically Locked (EL) or Fail Secure, Electrically Unlocked (EU)
