Command Access MLRK1-DOR Motorized Latch Retraction Kit for Dorma 9000 Series Exit Devices

$359.95
This item ships FREE! Usually Ships:  2-3 Business Days
  • Motor-driven electrified latch retraction kit
  • For field installation on Dormakaba/Dorma 9000 Series exit devices
  • Can upgrade both 36" and 48" devices

Product Overview

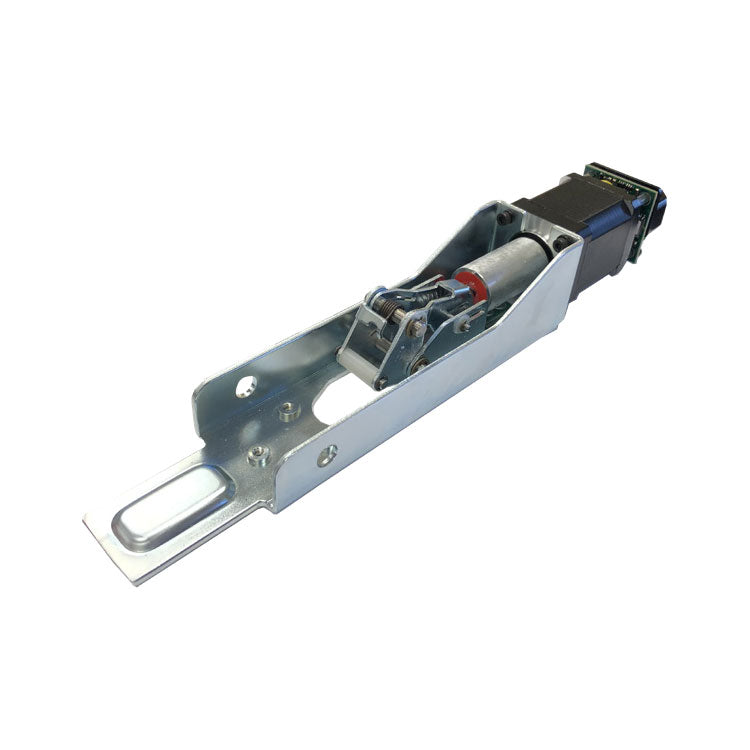

Command Access MLRK1-DOR Motorized Latch Retraction Kit, for Dormakaba/Dorma 9000 Series Exit Devices (Field Installation)

The MLRK1-DOR is a cost-effective and straightforward way to upgrade your Dorma 9000 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.

The MLRK1-DOR is a practical and cost-effective way to convert a mechanical Dorma series device to an electrified latch pullback device, while maintaining the UL listing. Our easy-to-install motor- driven kit installs in moments. It is equipped with PTS technology allowing for an easy post- installation adjustment of the latch/latches. Last but not least, it features an updated motor module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!

  • Works with all Dormakaba/Dorma 9000 Series Devices
  • MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
  • “PTS”: 5 second electronic adjustment for easy post installation adjustment
  • Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
  • Low Current Draw - Field switchable to “High Torque” mode
  • Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
  • 6” robust Molex Pigtail + 6’ Power lead to easily connect to power supply lead
  • Request-to-exit kit available
  • UL Listed
  • 3-Year “No Hassle” Warranty

Specifications:

  • Voltage range – 24 +/- 10%
  • System protection – unit shutdown when voltage exceeds 28 VDC
  • Standard - average current peak: 900MA, average current hold: 215MA
  • High Torque - Average Current Peak: 2A, High Average Current Hold: 250mA
  • PTS adjustment - approx. 1/4"
  • Wire Run: 300' with 18ga wire
  • Cutdown details: 36” & 48” at least 1” of filler plate

MLRK1-Codes

Brand

Command Access
Buy American Act Compliance

Meets BAA - Buy American Act
Compatible Devices

Dormakaba/Dorma 9000 Series
Part Type

Electric Latch Retraction Kit
