Product Overview

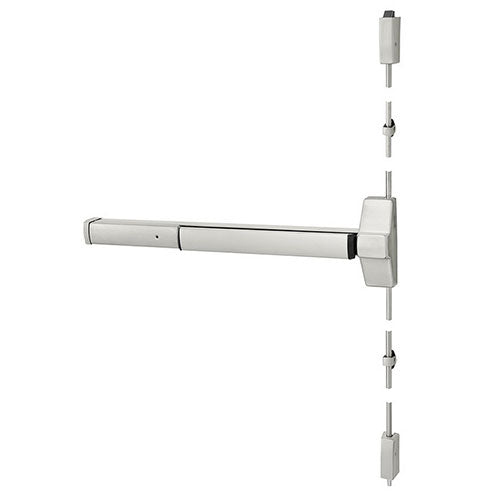

Corbin Russwin ED5400 Grade-1 Panic-Listed Surface Vertical Rod Exit Device
All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in the lab and field, with testing procedures that go beyond industry standards. Abuse and cycle tests prove time and again the durability of the entire ED5000 series, and backed by a 5-year warranty.
- Exit Only (Corbin Russwin outside trim sold separately)
- Designed for standard width stile applications on wood and metal doors
- All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware.
- UL symbol on active case cover indicates listing
Applications
- Schools
- Hospitals
- Office Buildings
- Theaters
| ANSI/BHMA Standard |
Meets A156.3 Type 2 Grade 1 |
|---|---|
| Brand |
Corbin Russwin |
| Device Type |
Surface Rod Device |
| Dogging Feature |
Half turn hex dogging standard |
| Door Applications |
1-3/4" Metal and Wood Doors |
| Door Height |
Standard top rod for 7' door. All rods easily field cut to size. Optional door heights up to 8’ |
| Finish |
Bright BrassSatin BronzeSatin BrassStainless SteelBlackDark Bronze |
| Finishes |
BSP Black Suede Powder Coat612 Satin Bronze630 Satin Stainless Steel606 Satin Brass613 Oil Rubbed Bronze605 Bright Brass |
| Fire Rating |
None |
| Handing |
Handed - Field Reversible |
| Latchbolt |
5/8" throw deadbolt held retracted during door swing. |
| Length |
48" (W048 for 36" to 48' Doors)36" (for 30" to 36" Doors) |
| Projections |
3-1/4" active 2-3/4" dogged |
| Stile Type |
Wide (Standard) |
| Strike |
flush mounted. |
| Usage |
Heavy Duty |
| Warranty |
5 Year |
