Product Overview

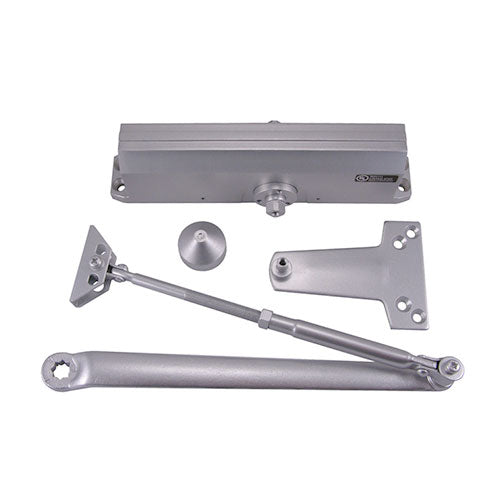

Design Hardware 116 Grade-1 Door Closer, Size 1-6 Adjustable, Cast Aluminum Body, Regular Arm with PA Bracket, No Cover
The Design Hardware 116 Series is an affordable door closer for commercial, and other medium to high traffic applications.
- Adjustable spring power and speed controls
- Designed for medium to heavy use
- Improves fire safety and energy savings
- Precision Rack & Pinion Construction
- Spindle with Needle Bearings
- Adjustable Size 1 to 6
- Staked Valves
- Independent Latch & Sweep Speed Controls
- Adjustable Back Check Intensity Control Valve
- Includes all screws and brackets for Regular, Top Jamb and Parallel Arm Installations
| ANSI Grade |
Meets ANSI A156.4 – Grade 1 Standards |
|---|---|
| Body Construction |
Cast Aluminum Body |
| Brand |
Design Hardware |
| Cover |
None |
| Door Applications |
Hollow Metal Wood or Aluminum |
| Finish |
Dark BronzeAluminum |
| Finishes |
690 Dark Bronze689 Aluminum |
| Fire Rating |
“A” Label 3 Hour Fire Doors |
| Handing |
Non-Handed |
| Mounting Options |
Top Jamb (Push Side)Regular (Pull Side)Parallel Arm (Push Side) |
| Spring Size |
Adjustable Spring Size 1-6 |

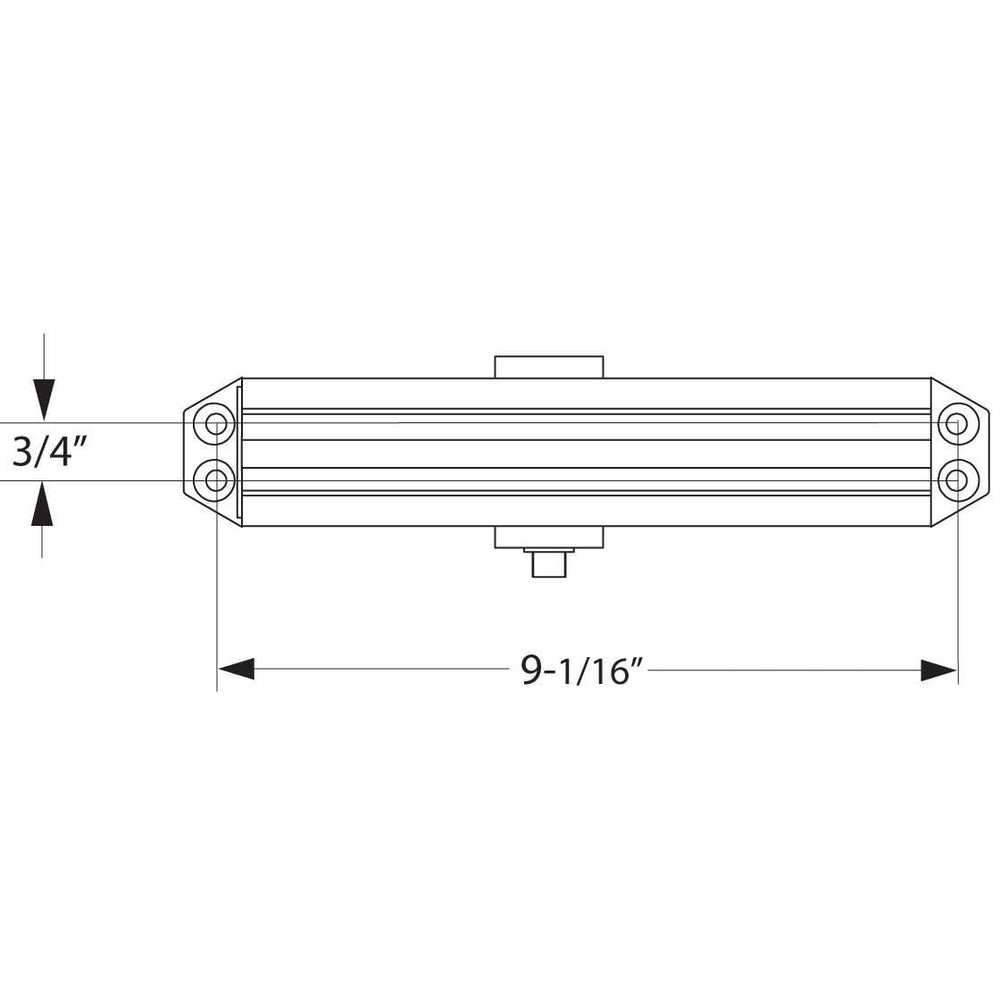

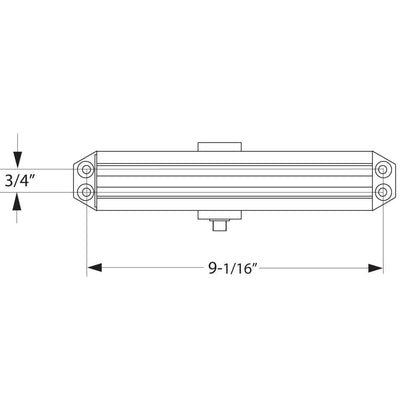

| Templating (Hole Pattern) |
3/4" x 9-1/16" |
| Usage |
Standard Duty |
