Product Overview

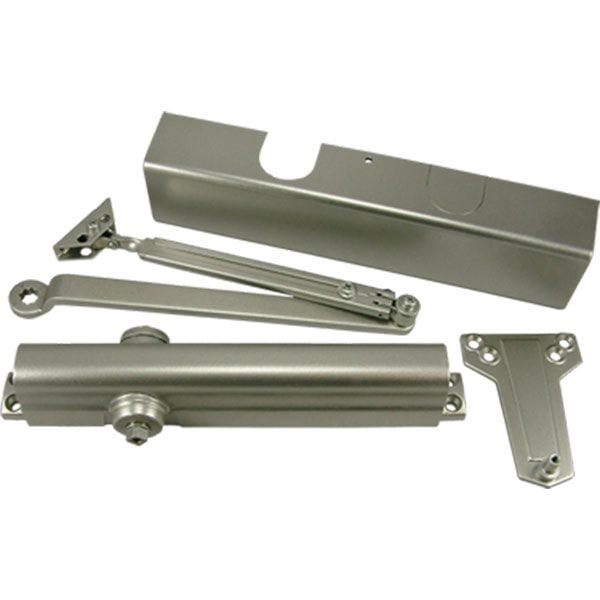

Design Hardware 316 Grade-1 Door Closer, Size 1-6 Adjustable, Cast Aluminum Body, Regular Arm with PA Bracket, Full Cover
The Design Hardware 316 Series is an affordable door closer for institutional, industrial, commercial, and other medium to high traffic applications.
- Heavy Duty Cast Aluminum Closer Body, Rack & Pinion Construction
- Adjustable Spring Power from Size 1 to 6 – Preset at size 3
- Independent Latch & Sweep Speed Controls
- Back Check Intensity Control Standard
- Staked Valves to prevent backing valves out too far
- Minimum Top Rail : 3-1/2″ – Top Jamb: 2-1/4″ – Parallel Arm: 5-1/4″
- Thru bolts with machine screws, Wood screws & Self tapping machine screws included
- Includes all screws and brackets for Regular, Top Jamb and Parallel Arm Installations
| ANSI Grade |
Meets ANSI A156.4 – Grade 1 Standards |
|---|---|
| Body Construction |
Cast Aluminum Body |
| Brand |
Design Hardware |
| Cover |
Full Cover |
| Door Applications |
Hollow Metal Wood or Aluminum |
| Finish |
Dark BronzeBrassAluminum |
| Finishes |
696 Brass689 Aluminum690 Dark Bronze |
| Fire Rating |
“A” Label 3 Hour Fire Doors |
| Handing |
Non-Handed |
| Mounting Options |
Regular (Pull Side)Parallel Arm (Push Side)Top Jamb (Push Side) |
| Spring Size |
Adjustable Spring Size 1-6 |

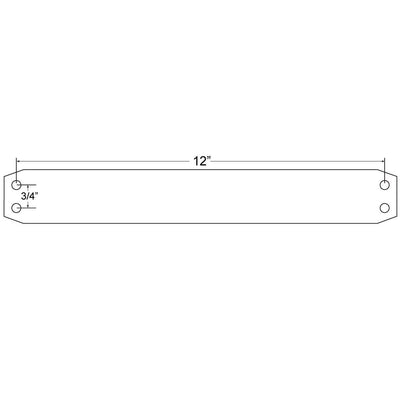

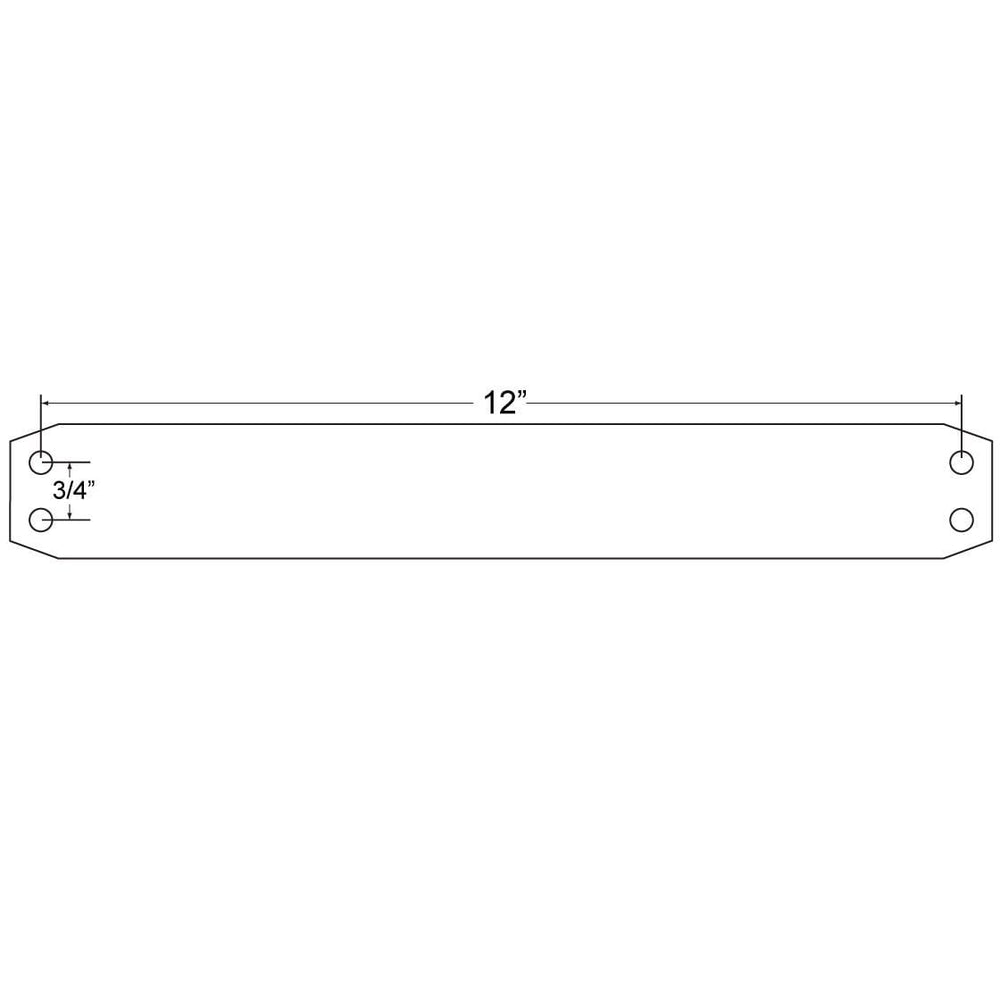

| Templating (Hole Pattern) |
3/4" x 12" |
| Usage |
Medium Duty |
