Design Hardware

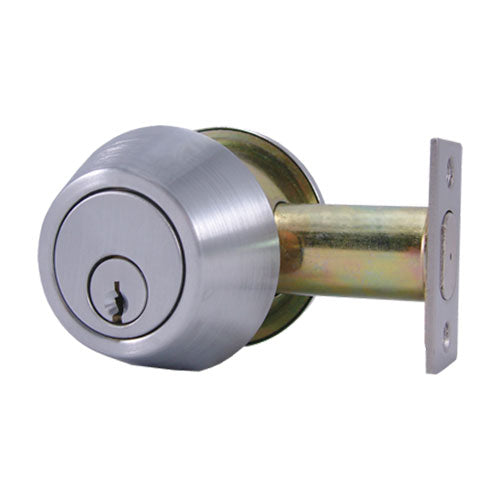

Design Hardware D1-D Double Cylinder Deadbolt Lock

$111.24
Usually Ships:  5-10 Business Days
  • Heavy-Duty – ANSI Grade 1
  • Double cylinder (key on both sides)
  • C keyway, US26D satin chrome finish

Product Overview

Design Hardware delivers outstanding field performance with the highest quality selection of commercial door hardware.

*Double Cylinder (Key on Both Sides) - ANSI E21411 - Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.

*Caution: Double cylinder locks on any door are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

  • Bolt: Solid Brass with 1″ Throw & Anti-Saw Hardened Steel Pin Insert
  • ANSI: Meets & Exceeds ANSI – A156.2, Grade 1 Standards
ANSI Function

E21411
ANSI Grade

Meets ANSI – A156.2 Grade 1 Standards
Backset

2-3/4"
Bolt

1" throw bolt 1-1/8" x 2-1/4" square corner face plate
Brand

Design Hardware
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Deadbolt Type

Double Cylinder
Door Thickness

1-3/4"
Finish

Satin Chrome
Finishes

US26D (626) Satin Chrome
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Keyway

Schlage C Keyway
Strike

1-1/8” x 2-3/4“ square corner
Usage

Heavy Duty
