Product Overview

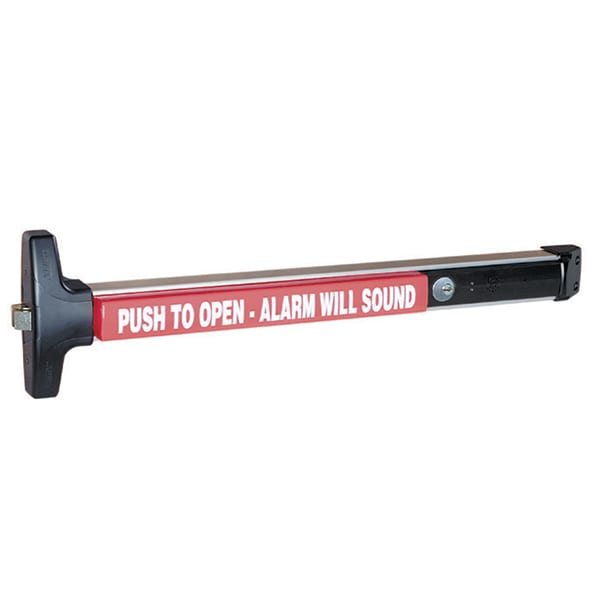

Detex FV40 EB Value Series Wide Stile Rim Exit Device, Battery Operated Alarm, 36 In. Device, Fire-Rated
The FV40xEB is designed for primary and secondary exits that require an alarmed panic device. The 100 decibel alarm will sound when someone attempts to exit, alerting management to the unauthorized exit. Available in various configurations, the FV40xEB provides security while meeting all life safety concerns, offering an exceptional value.

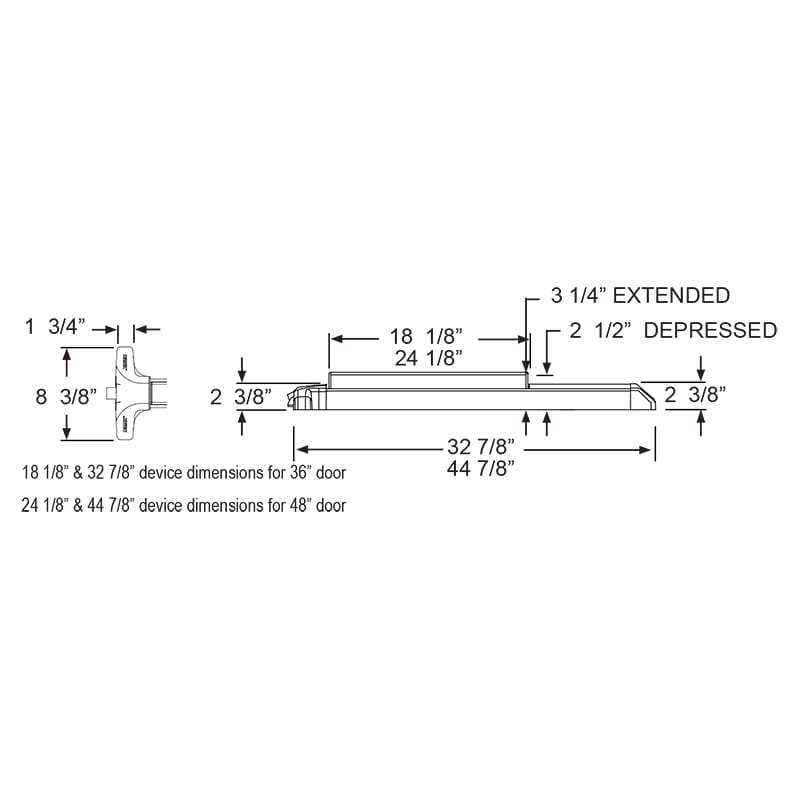

- 36" Length
- Stainless steel, 3/4" deadlocking Pullman-type latch bolt
- 628 Anodized Aluminum or 711 Black Base Rail
- Red flashing LED alert when not armed
- Inside key control allows alarm bypass
- Meets NFPA 80 & 101 for Life Safety
- Mortise Cylinder Required (sold separately)
| ANSI/BHMA Standard |
ANSI/BHMA certified A156.3 |
|---|---|
| Brand |
Detex |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Cylinder |
1-1/4" Mortise Cylinder (sold separately) |
| Door Thickness |
1-3/4" to 2-1/4" |
| Finish |
Anodized AluminumBlack |
| Finishes |
711 Black Anodized Aluminum628 Anodized Aluminum |
| Fire Rating |
UL Listed Fire Exit Hardware for 3 hours maximum 4’x10’ single doors and pairs of 4’x8’ with F90KR keyed removable mullion |
| Handing |
Non-Handed |
| Latchbolt |
3/4" throw |
| Length |
36" |
| Warranty |
10 Year Mechanical / 3 year Electrical Limited Manufacturer's Warranty |
