Product Overview

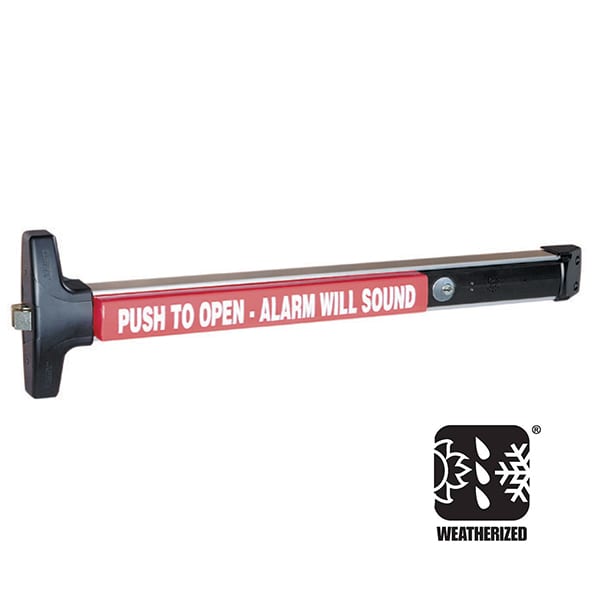

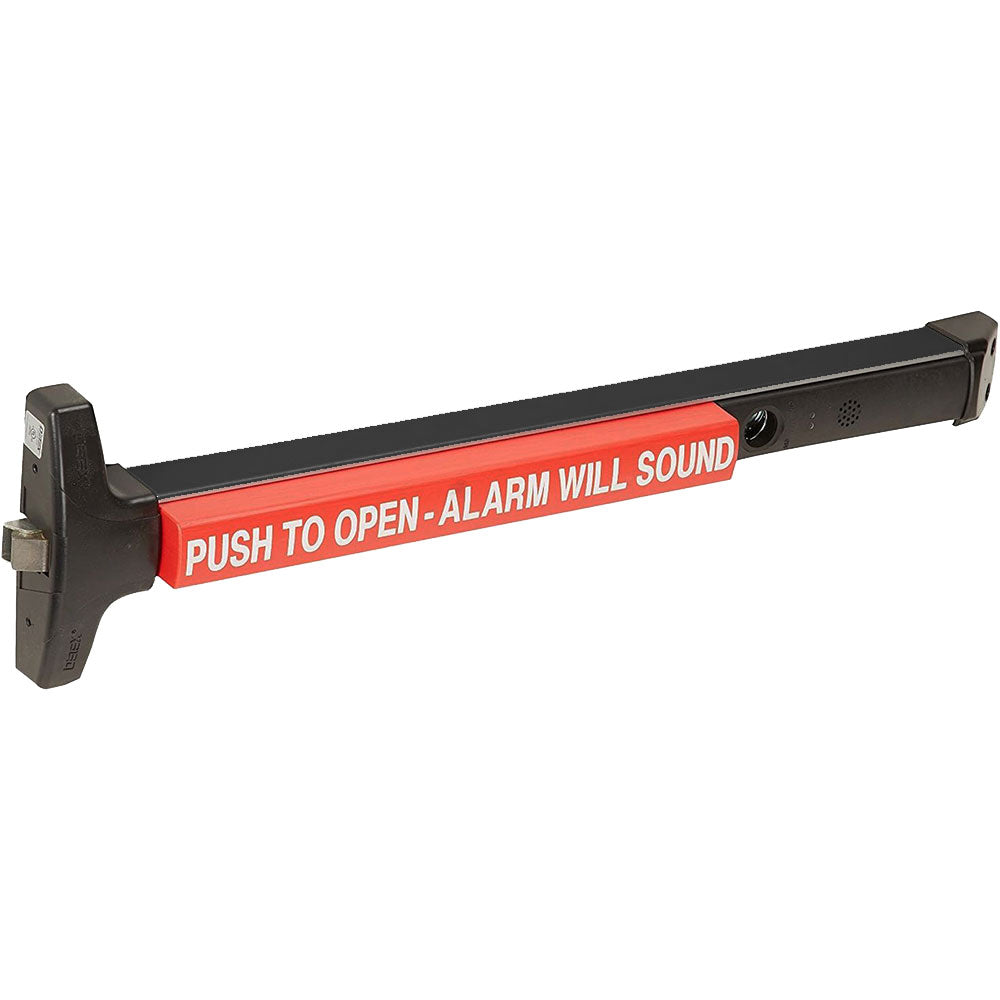

Detex V40 EB W Value Series Wide Stile Rim Exit Device, Battery Operated Alarm, 36 In. Device, Weather-Resistant
The V40 EB W device option is designed for doors and gates requiring a stand-alone, battery-powered, alarmed, weatherized panic device. The alarm, with approximately 100dB, will sound when someone attempts to exit, alerting management that an unauthorized exit has occurred. The internal alarm with both remote bypass and remote signaling capabilities is ideal for applications where both security and life safety are a concern. In addition to listing as UL panic and fire exit hardware device, this device conforms to MIL-STD 810F Method 506.4 (driving rain test), MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard 7-2 (positive pressure).
- Weather-resistant loss prevention hardware designed for use in outdoor or wet environments
- 628 Anodized Aluminum
- Red flashing LED alert when not armed
- Inside key control allows alarm bypass
- Latch bolt monitoring standard
- Mortise Cylinder Required (sold separately)
| ANSI/BHMA Standard |
ANSI/BHMA certified A156.3 |
|---|---|
| Brand |
Detex |
| Cylinder |
1-1/4" Mortise Cylinder (sold separately) |
| Door Thickness |
1-3/4" to 2-1/4" |
| Finish |
Anodized Aluminum |
| Fire Rating |
Non-Fire-Rated |
| Handing |
Non-Handed |
| Latchbolt |
3/4" throw |

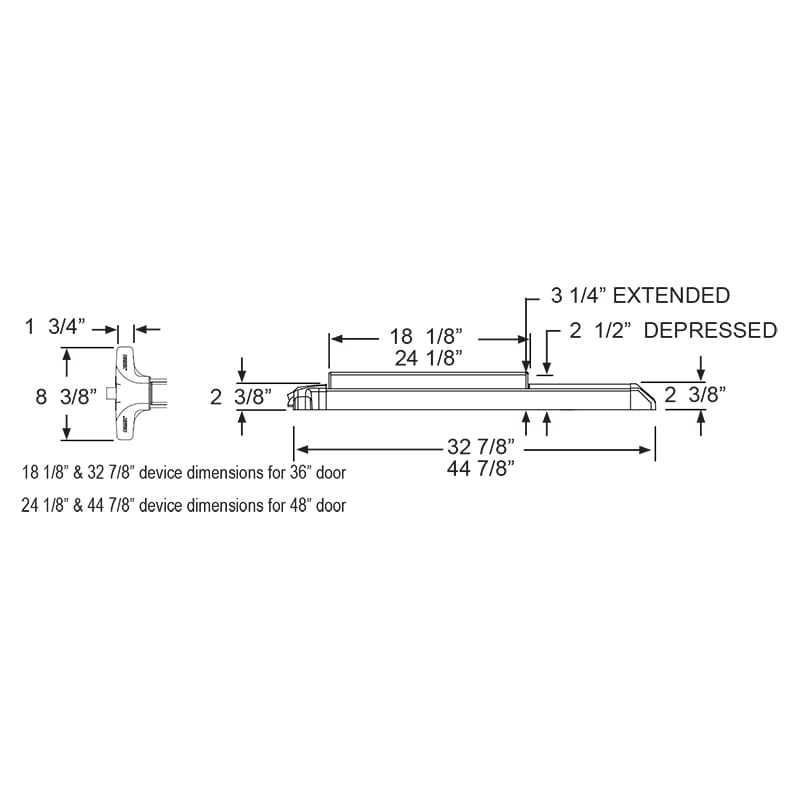

| Length |
36"48" |
