Dormakaba

Dormakaba 7436 Door Closer, Size 3-6

$136.43
Usually Ships:  2-3 Business Days
  • ANSI/BHMA Grade 1 Certified
  • Adjustable Spring Size 3-6
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Clear

Product Overview

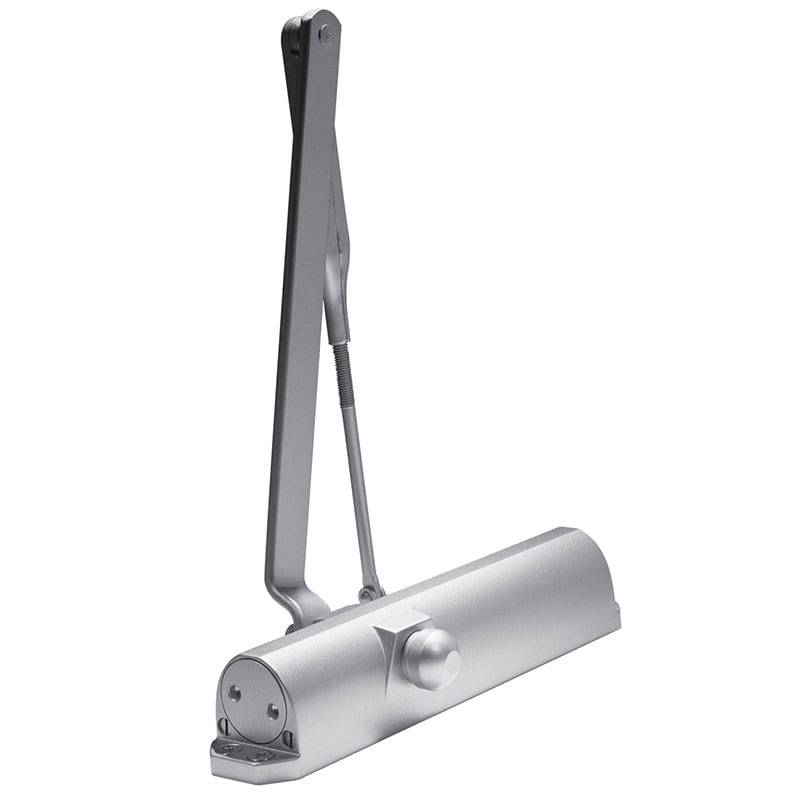

Dorma 7436 ARP Surface Door Closer, Non-Hold Open, Tri-Pack

The 7400 Series door closer is featuring backcheck and adjustable spring sizes thus being the ideal solution in a wide variety of applications, including barrier-free. This Grade 1 hydraulic surface door closer is both flexible and easy to install.

  • Recommended for interior doors
  • Adjustable spring sizes 3-6
  • Quick and easy to install
  • Compact design

Features

Modern styling

The 7400 Series closers offer modern styling and versatility while providing safe and reliable door control.

Controlled opening with backcheck feature

The 7400 Series features an adjustable backcheck, which provides cushioning when the door is abusively opened.

Applications

The 7400 Series is designed to provide a highly flexible door control system suitable for use on all hollow metal, aluminum, and wood doors typically used in commercial construction.

Constant speeds

The 7400 Series closer has two independent valves to separately control sweep and latch closing speeds and provide constant speeds when temperatures change.

ANSI Grade

ANSI/BHMA A156.4 Grade 1 Certified
Brand

Dormakaba
Cover

None
Fasteners

SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard
Finish

BlackAluminumDark Bronze
Finishes

693 Black689 Aluminum695 Dark Bronze
Fire Rating

UL and CUL listed - Meets UL10C for positive pressure
Handing

Non-Handed
Mounting Options

Top Jamb (Push Side)Regular (Pull Side)Parallel Arm (Push Side)
Spring Size

Adjustable Spring Size 3-6

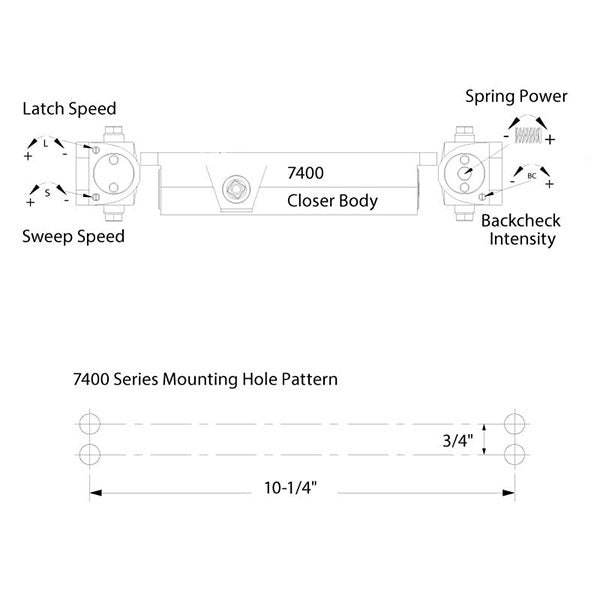

Templating (Hole Pattern)

3/4" x 10-1/4"
Usage

Standard Duty
