Dormakaba 8616 DS Door Closer with Door Saver Parallel Cushion Stop Arm

$245.81
Usually Ships:  2-3 Business Days
  • ANSI/BHMA Grade 1 Certified
  • Adjustable Spring Size 1-6
  • Parallel Arm Mount

Product Overview

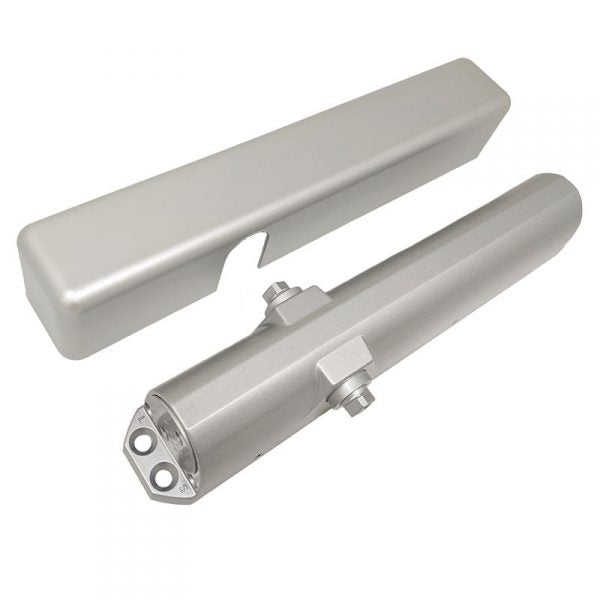

Dorma 8616 DS Complete Surface Closer Door, Door Saver Parallel Cushion Stop Arm, Non-Hold Open, Slim Cover

The 8600 door closer series is a non-handed surface applied door closer with adjustable spring power and backcheck positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

  • 8616 DS COV SNB1 689
  • Includes DS Arm — Door saver arm non-hold open
  • Adjustable spring sizes and power
  • Meets barrier-free requirements
  • Adjustable backcheck
  • Corrosion-resistant aluminum body
  • Backed by 25-year warranty

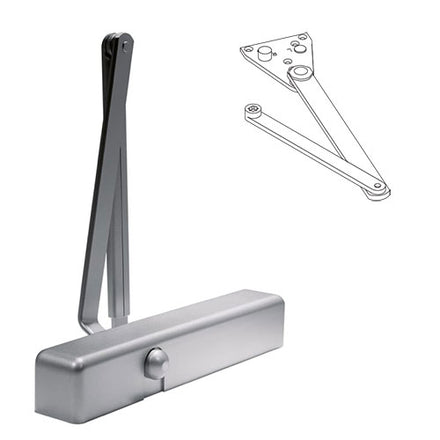

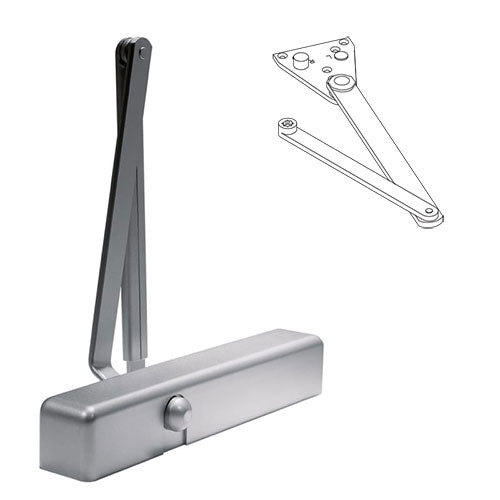

DS Door Saver Arm

  • Heavy-duty parallel arm with integral cushioned opening function
  • Non-hold open
  • Can be installed to achieve stop at 85°, 90°, 100°, and 110°
  • Maximum opening is 110° (conditions permitting)
  • Arm is non-handed
ANSI Grade

ANSI/BHMA A156.4 Grade 1 Certified
Body Construction

Cast Aluminum Body
Brand

Dormakaba
Cover

Slim Cover
Fasteners

SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard
Finish

Aluminum
Finishes

689 Aluminum
Fire Rating

UL and CUL listed - Meets UL10C for positive pressure
Handing

Non-Handed
Mounting Options

Parallel Arm (Push Side)
Special Feature

Extra Duty Parallel Arm with Dead Stop
Spring Size

Adjustable Spring Size 1-6

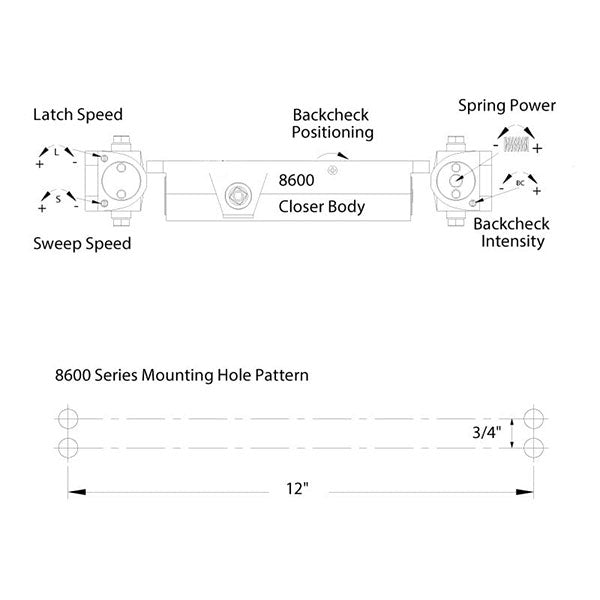

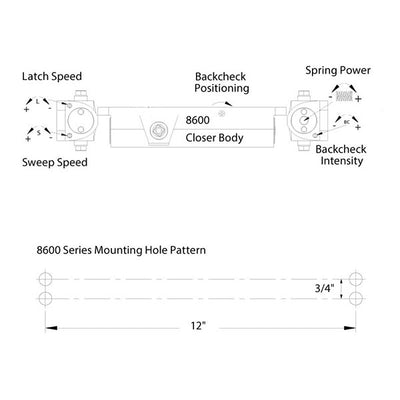

Templating (Hole Pattern)

3/4" x 12"
Usage

Medium Duty
Warranty

25 Year
