Dormakaba

Dormakaba 8916 SDST Door Closer with Heavy Duty Parallel Springstop Arm with Thumb Turn Hold Open

$416.28
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Grade 1 Certified
  • Includes spring stop arm with thumb turn hold open
  • Push side, parallel arm mount only

Product Overview

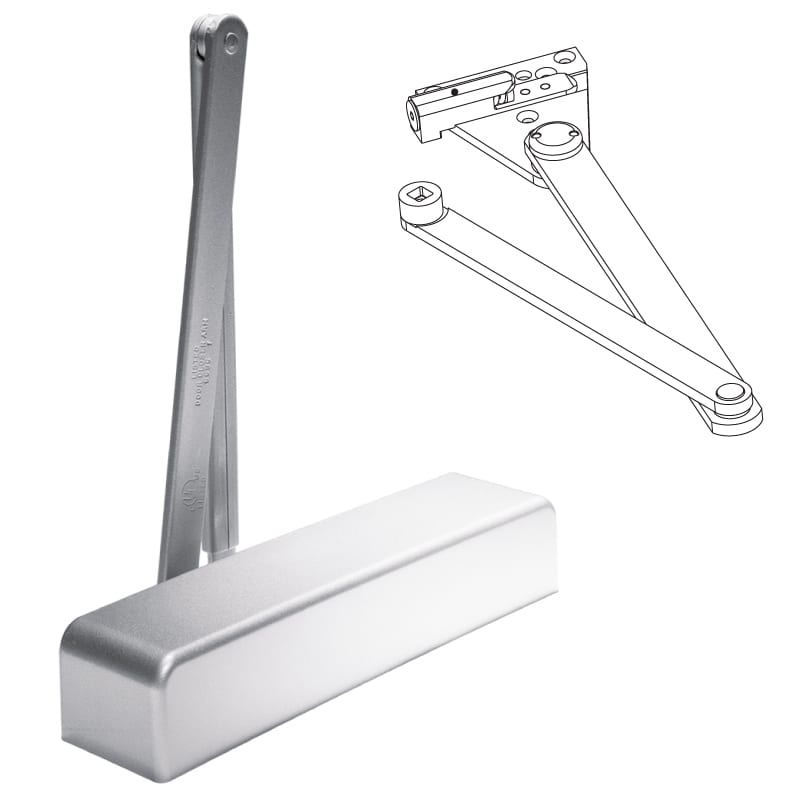

Dorma 8916 SDST Complete Surface Closer Door, Spring Stop Door Saver Arm with Hold Open, Full Cover

The 8900 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and backcheck, along with a narrow projection full cover and flatform style arm.

Versatile, durable, and reliable, featuring modern styling for institutional or high-traffic commercial applications.

  • 8916-SDST-FC-SN1-689
  • Includes SDST Arm — Spring stop door saver arm thumb turn hold open
  • Parallel Arm Mount Only
  • Long term performance
  • Adjustable spring sizes and power
  • Meets barrier-free requirements
  • Adjustable backcheck
  • Corrosion-resistant aluminum body
  • Backed by 25 year warranty

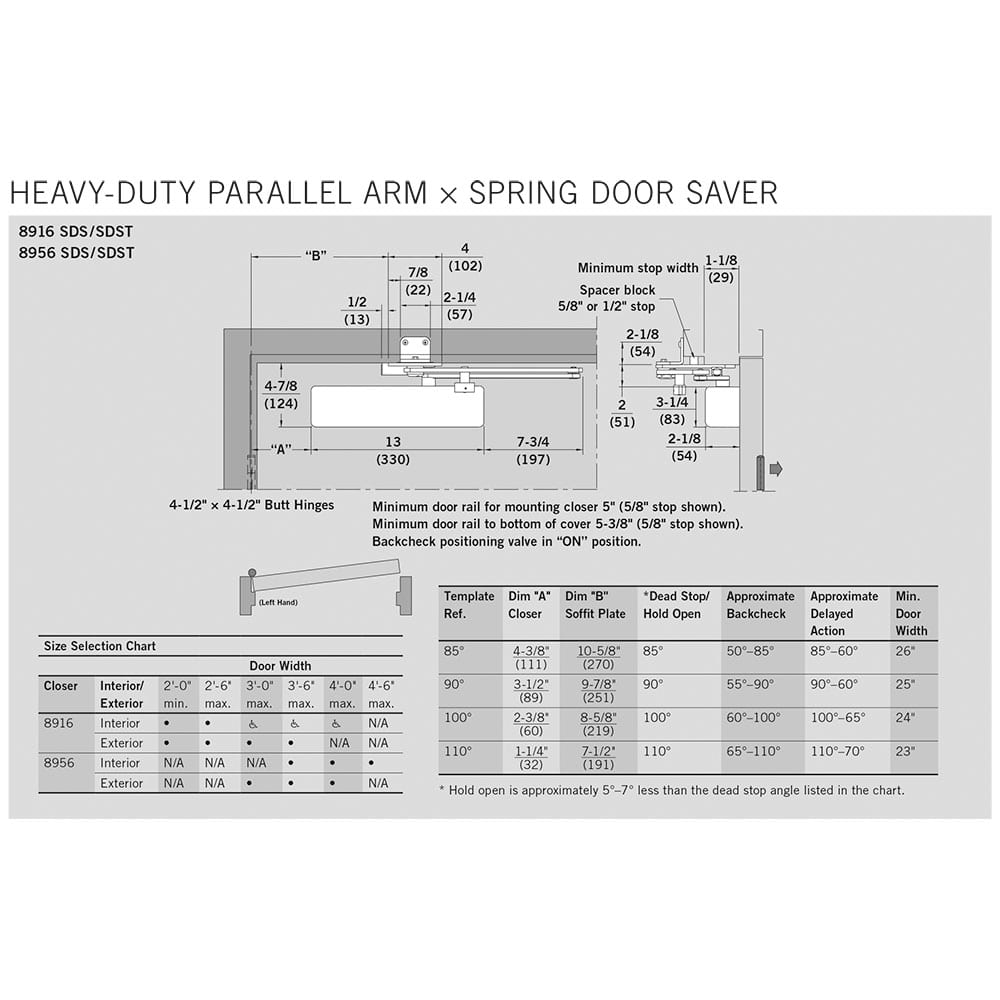

Spring Stop Door Saver Arm with Thumb Turn Hold Open

  • Heavy-duty parallel arm with spring-assisted dead stop function and thumb turn hold open
  • Units can be installed to achieve either stop or stop and hold open at 85°, 90°, 100°, and 110°
  • Maximum opening is 110° (conditions permitting)
  • Arm is non-handed
ANSI Grade

ANSI/BHMA A156.4 Grade 1 Certified
Body Construction

Cast Aluminum Body
Brand

Dormakaba
Cover

Full Cover
Fasteners

SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard
Finish

Aluminum
Finishes

689 Aluminum
Fire Rating

Non-Fire-Rated
Handing

Non-Handed
Mounting Options

Parallel Arm (Push Side)
Special Feature

Hold Open Parallel Arm with Spring Stop
Spring Size

Adjustable Spring Size 1-6
Templating (Hole Pattern)

2-1/8" x 5"
Usage

Heavy Duty
Warranty

25 Year
