Falcon

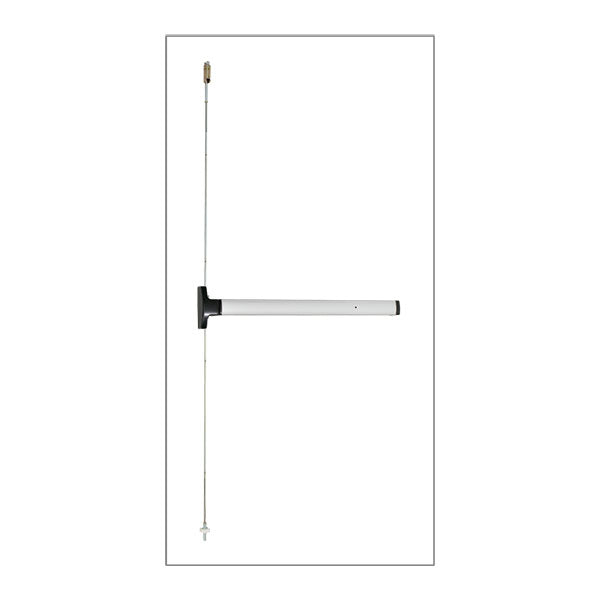

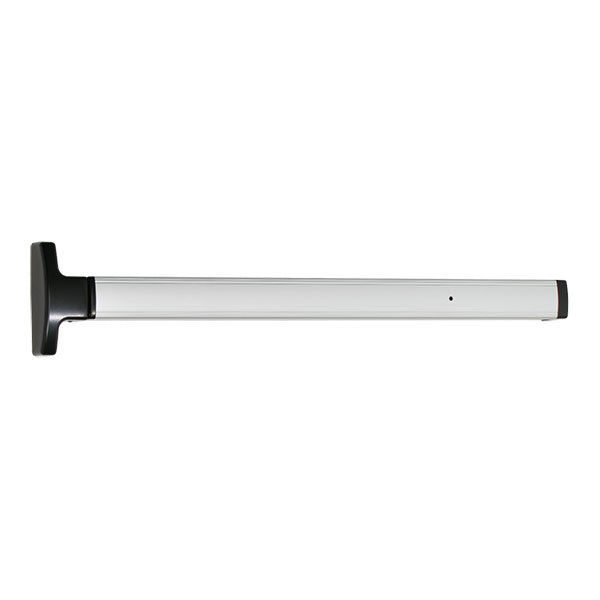

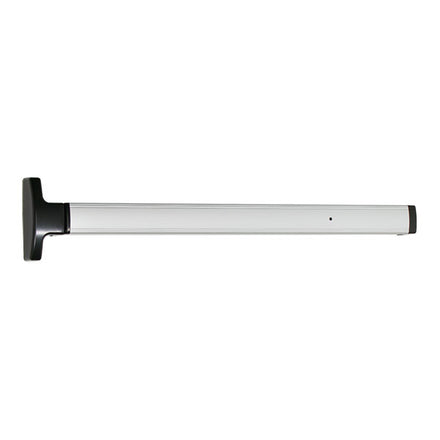

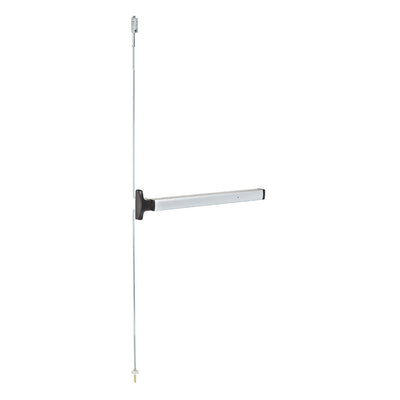

Falcon 1690EO Concealed Vertical Rod Touchbar Exit Device, Exit Only

$347.93
This item ships FREE! Usually Ships:  1-2 Business Days
  • BHMA/ANSI Grade 1 certified
  • Fits door stiles as narrow as 1-3/4″
  • For use with aluminum storefront doors

Available Options:

Clear

Product Overview

Falcon 1690EO Concealed Vertical Rod Pushpad Exit Device, Exit Only

The design of the 1690 is ideal for demanding, moderate-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device, permitting unrestricted traffic flow.

  • 1690EO = Exit Only (No Outside Trim Included)
  • Projections: 3-3/8" in neutral position - 2-3/8" in dogged position
  • Stile: 1-3/4 " Minimum
ANSI Grade

Carry UL label and approved for life safety. Certified ANSI A156.3 grade 1 standards.
Brand

Falcon
Device Type

Concealed Rod Device
Door Applications

1-3/4" Aluminum Doors
Door Height

7'0" (Standard)
Fasteners

All machine screw mounting. Device mounting fasteners are concealed latch fasteners are exposed to egress side.
Finish

Dark BronzeAnodized AluminumBlack
Finishes

US28 (628) Anodized AluminumDC35 Black Anodized AluminumDC13 Anodized Duranodic
Handing

Non Handed – Completely Reversible
Length

36" (30" to 36" Door Width)42" (36" to 42" Door Width)48" (36" to 48" Door Width)
Minimum Stile Width

1-3/4"
Stile Type

Narrow
Usage

Medium Duty
