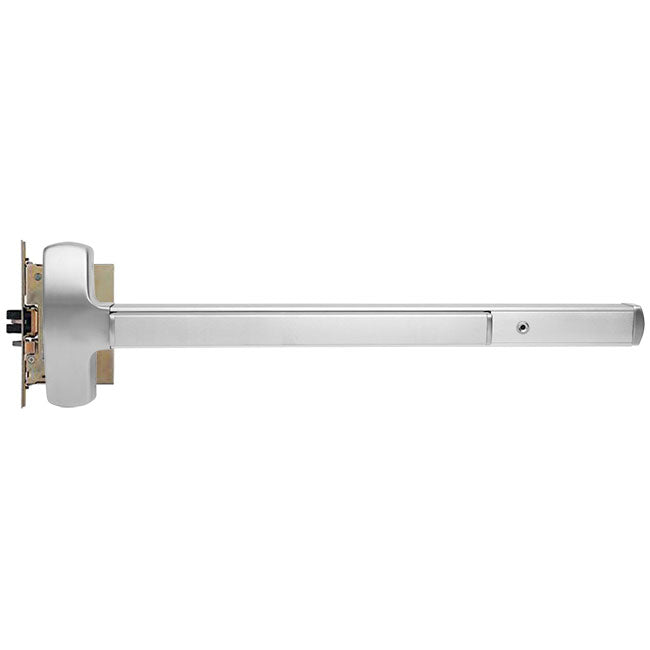

Falcon 25-M/F-25-M Mortise Lock Exit Device, Exit Only

The Falcon 25-M Series device pairs a tough, reliable exit device with a strong mortise lock. The result is maximum safety and security in a single-point, mortise latch type device that also has an attractive touch bar design.

  • Exit Only (trim sold separately)
  • Deadlocking Latchbolt Standard
  • 1279 Strike Standard
  • All mounting screws are concealed
  • Sheet metal screws and machine screws standard
  • 2-3/4" maximum projection, 2" dogged

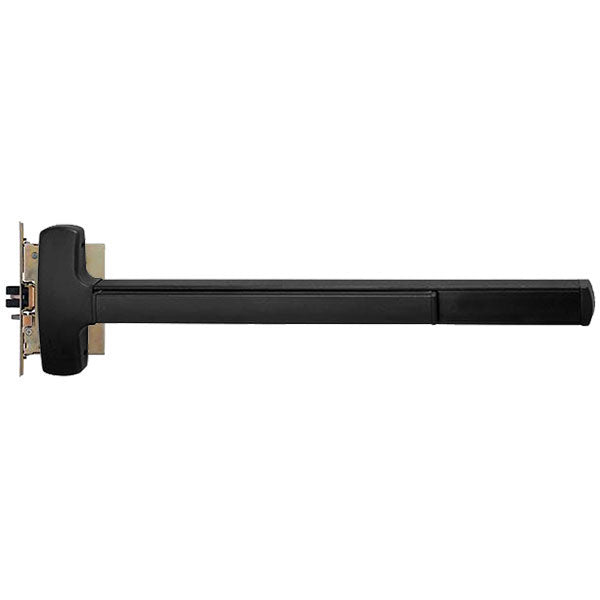

  • F-25-M Model Fire-Rated (no dogging on fire-rated devices)

Mortise Lock: Heavy wrought lock case with investment cast or sintered steel parts. Lock face is forged brass—fits standard cutout. Locks are designed to fit standard ANSI A115.1 preparation for 1-3/4" thick doors. Deadlocked when auxiliary bolt is depressed 5/16"

ANSI/BHMA Standard

Certified ANSI A156.3-2001 grade 1 standards

Brand

Falcon

Buy American Act Compliance

Meets Buy Amercian Act - Made in USA

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Door Thickness

1-3/4"

Finish

BlackDark BronzeSatin ChromeStainless Steel

Finishes

US32D (630) Satin Stainless SteelUS19 (315) Flat BlackUS26D (626) Satin Chrome313AN Anodized Dark Bronze

Fire-Rated

Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging)

Fire Rating

“A” label (3 hr.); 4'0" x 10'0" single doors; 8'0" x 10'0" pair of doors. “B” label (1- 1 ⁄ 2 hr) with F1280 open back strike

Hand

LHR (Left Hand Reverse)RHR (Right Hand Reverse)

Handing

Handed (LHR - Left Hand Reverse or RHR - Right Hand Reverse)

Latchbolt

Stainless steel 3⁄4" throw

Length

4'0" (3'4" to 4'0" Doors)3'0" (2'8" to 3'0" Doors)

Stile

4-1/2 " minimum

Strike

1279 standard

Usage

Heavy Duty
