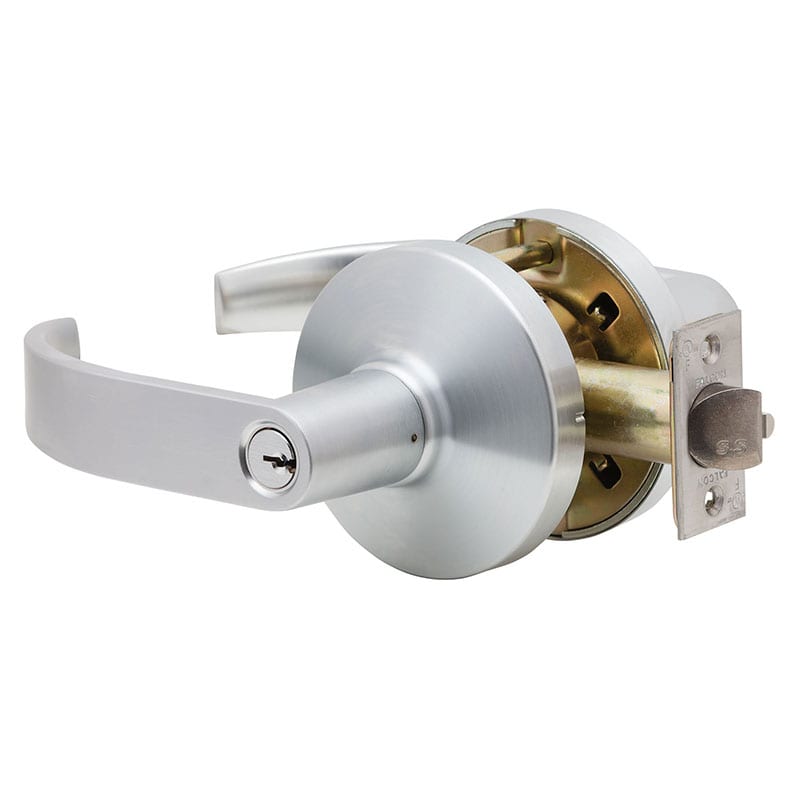

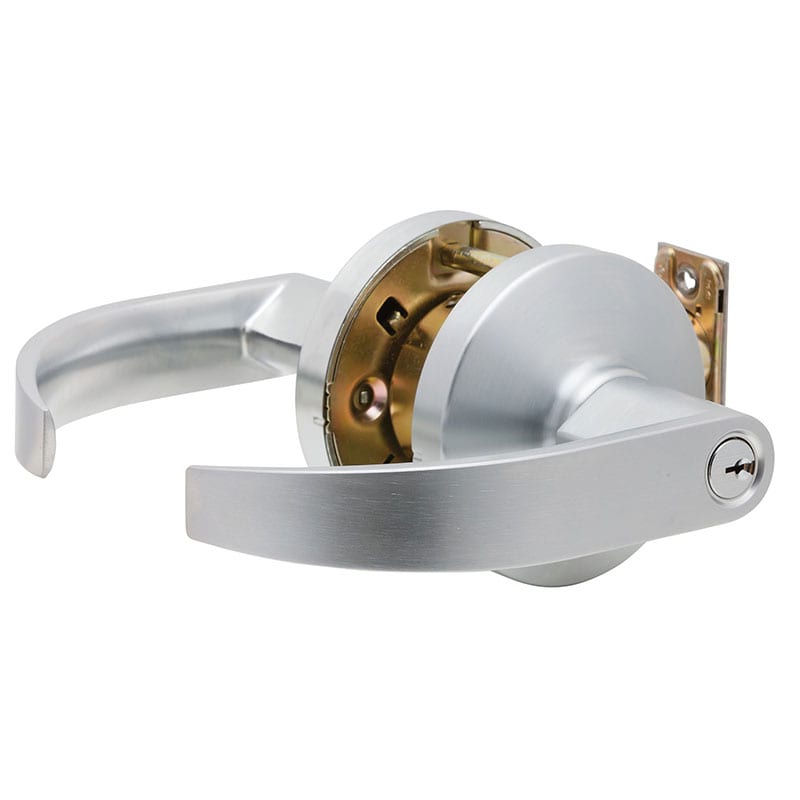

Falcon K581CPD QUANTUM Heavy Duty Storeroom Lever Lock

$155.25
Usually Ships:  1-2 Business Days
  • Discontinued November 2024 - available while supplies last
  • Outside Always Locked - Entry by Key Only
  • ADA Compliant - 3 Hour Fire-Rated

Product Overview

High traffic, high abuse door openings demand a Grade 1 quality lock to keep doors secure. When quality and reliability are needed but cost is a concern, the certified ANSI/BHMA Grade 1 Falcon K Series can do the job. The Falcon K Series offers a quality product at a value price, and is backed by one of the best names in the business - Allegion.

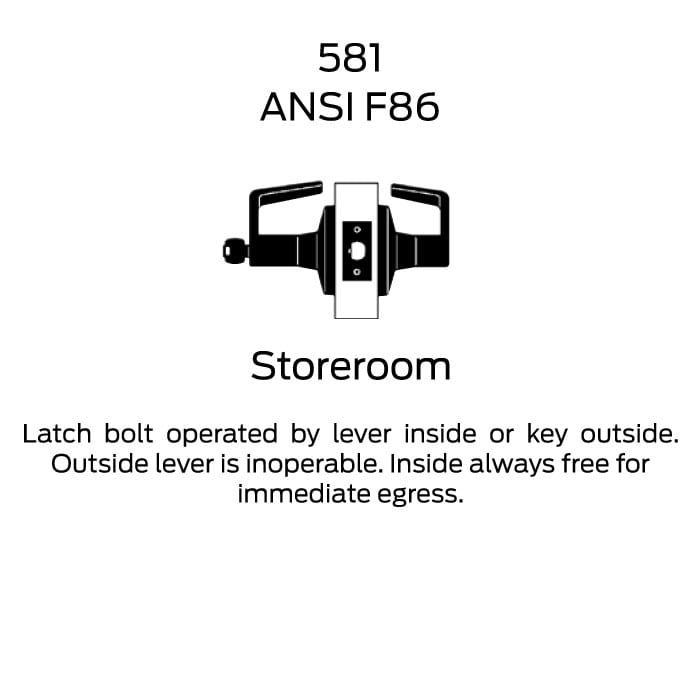

ANSI Function F86 - Deadlocking latch bolt by lever inside or key outside. Outside lever is inoperable. Inside lever always free.

  • 626 Satin Chrome Finish
  • Clutching lever design allows the lever to move when locked without unlatching the door, preventing damage to the chassis
  • Four through bolts for added strength, providing high security and peace of mind
  • Lever security caps to help prevent undesired lever removal and lever sag after continual use
  • Manufactured to Allegion’s industry-leading quality standards
ANSI/BHMA Standard

Meets ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Falcon
Clutch Lever

Yes
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Door Thickness

1-3/4" to 2-1/4"
Finish

Satin Chrome
Finishes

626 Satin Chrome
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Keyway

Schlage C Keyway
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

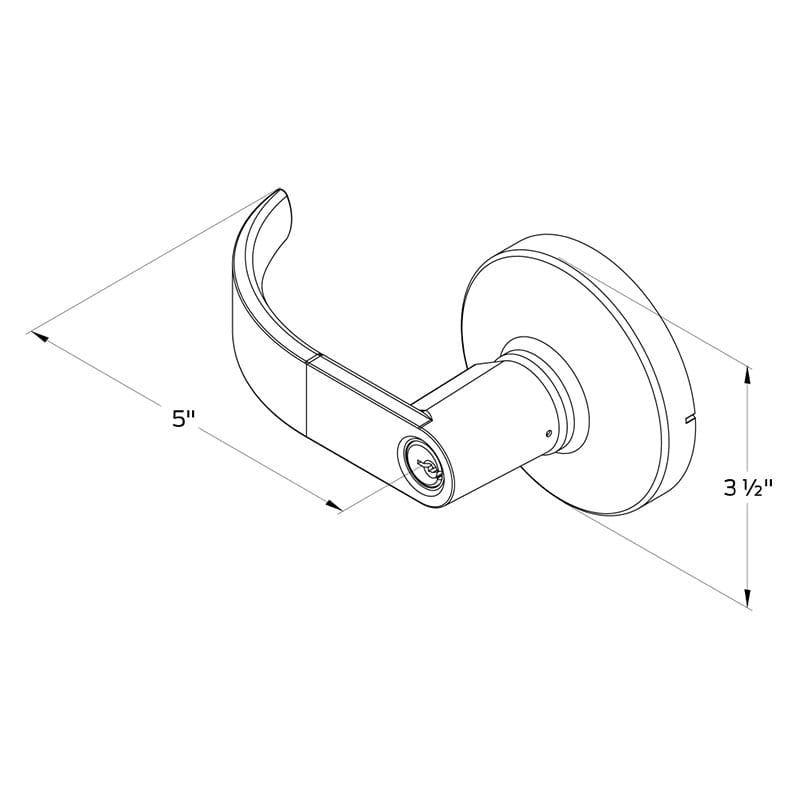

Lever Design

Q (Quantum)
Lock Function

Storeroom
Screws

Furnished with combination screws for use in wood or metal doors and frames.
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Warranty

10 Years
