Falcon

Falcon SC61A Rw/PA Door Closer

$85.11
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.4 Grade 1 Certified
  • Fully Adjustable - Sizes 1-5
  • Regular, Top Jamb, or Parallel Arm Mount

Available Options:

Clear

Product Overview

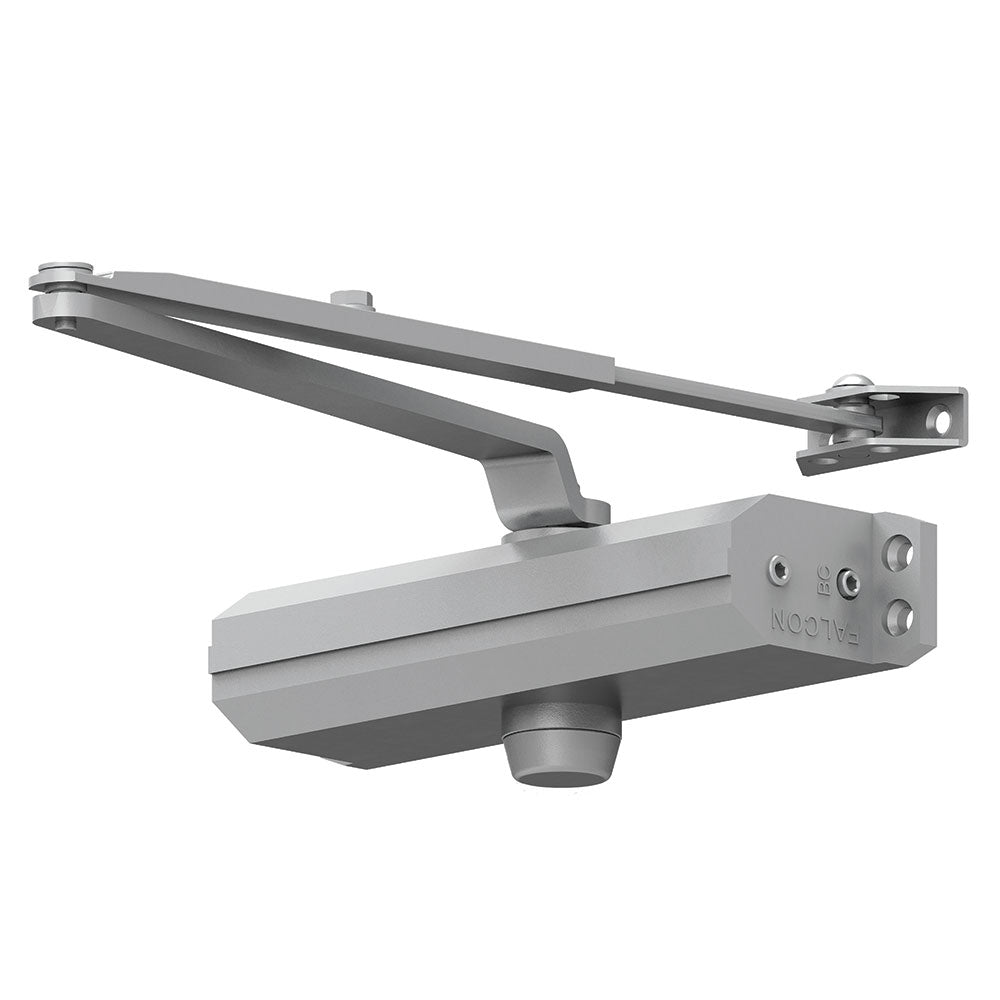

Falcon SC61A RWPA, SC60 Series, Regular Arm with PA Bracket, Less Cover Standard

The SC60A Series is designed for light-to medium-duty applications, like a small business or office building. It is intended for interior use with aluminum storefronts and mixed-use complexes. It mounts three ways and features the most common hole pattern in the door control industry - retrofits Norton 1600.

The SC61A features a single-piece cast aluminum body and a 1-3/8” heat-treated steel piston, a heat-treated pinion, and staked valves. The SC60A Series standard door closer is certified ANSI/BHMA A156.4 Grade 1, is UL listed, and is backed by a 10-year warranty.

Rw/PA – Regular Arm with Parallel Arm Bracket. Includes adjustable forearm assembly to accommodate a variety of door types and frame conditions. Parallel Arm (PA) bracket allows closer to be installed on the ‘push’ side of the door in a parallel arm type configuration.

  • Standard Tri-Pack includes arm and bracket for Regular Pull Side, Top Jamb or Parallel Arm Mounting
  • Separate adjustable general speed, latch speed and backcheck
  • Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming and tapping screws





Finishes:

  • AL, BHMA 689 – Silver Painted (Resembles Aluminum Finish)
  • DKB, BHMA 695 – Dark Bronze Painted (Spray Duranodic)
  • MTBK, BHMA 622 – Matte Black
  • BR, BHMA 696 - Brass Painted

Models: SC61A-RWPA-AL, SC61A-RWPA-AL-SLIM, SC61A-RWPA-DKB, SC61A-RWPA-DKB-SLIM, SC61A-RWPA-BR

ANSI/BHMA Standard

Tested and certified under ANSI Standard A156.4 - Grade-1
Body Construction

Cast Aluminum Body
Brand

Falcon
Cover

None (Slim Cover Optional)
Cover Type

Slim CoverNone
Door Applications

Hollow Metal Wood or Aluminum
Finish

Dark BronzeBrassBlackAluminum
Finishes

696 Brass695 Dark Bronze689 Aluminum622 Matte Black
Fire Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)
Handing

Non-Handed
Mounting Options

Top Jamb (Push Side)Parallel Arm (Push Side)Regular (Pull Side)
Spring Size

Adjustable Spring Size 1-5

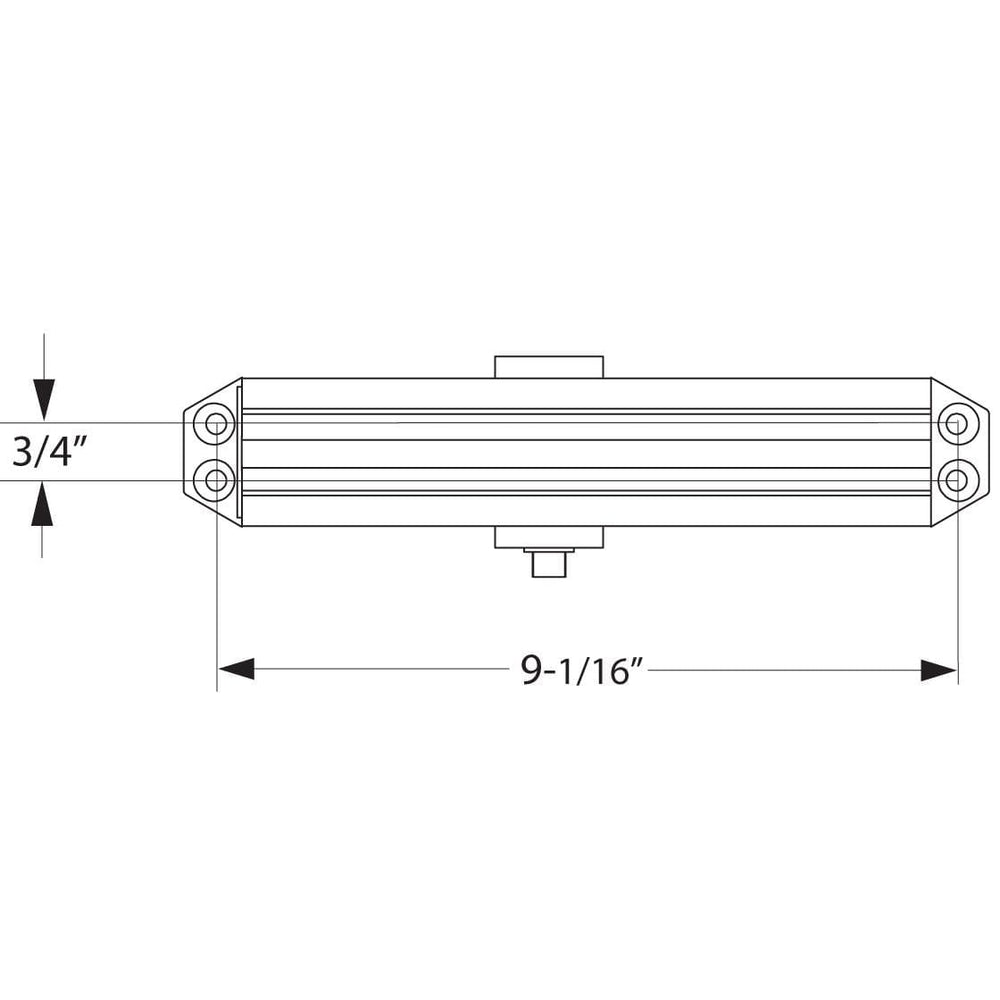

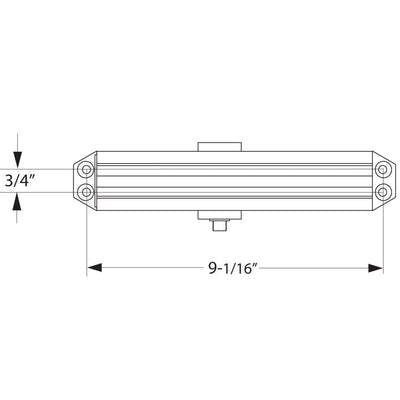

Templating (Hole Pattern)

3/4" x 9-1/16"
Usage

Standard Duty
Warranty

10 Years
