Falcon

Falcon SC71A Rw/PA Door Closer

$162.69
Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade 1 certified
  • Adjustable spring size 1-6
  • Tri-Pack: Regular, parallel, or top jamb mount

Available Options:

Clear

Product Overview

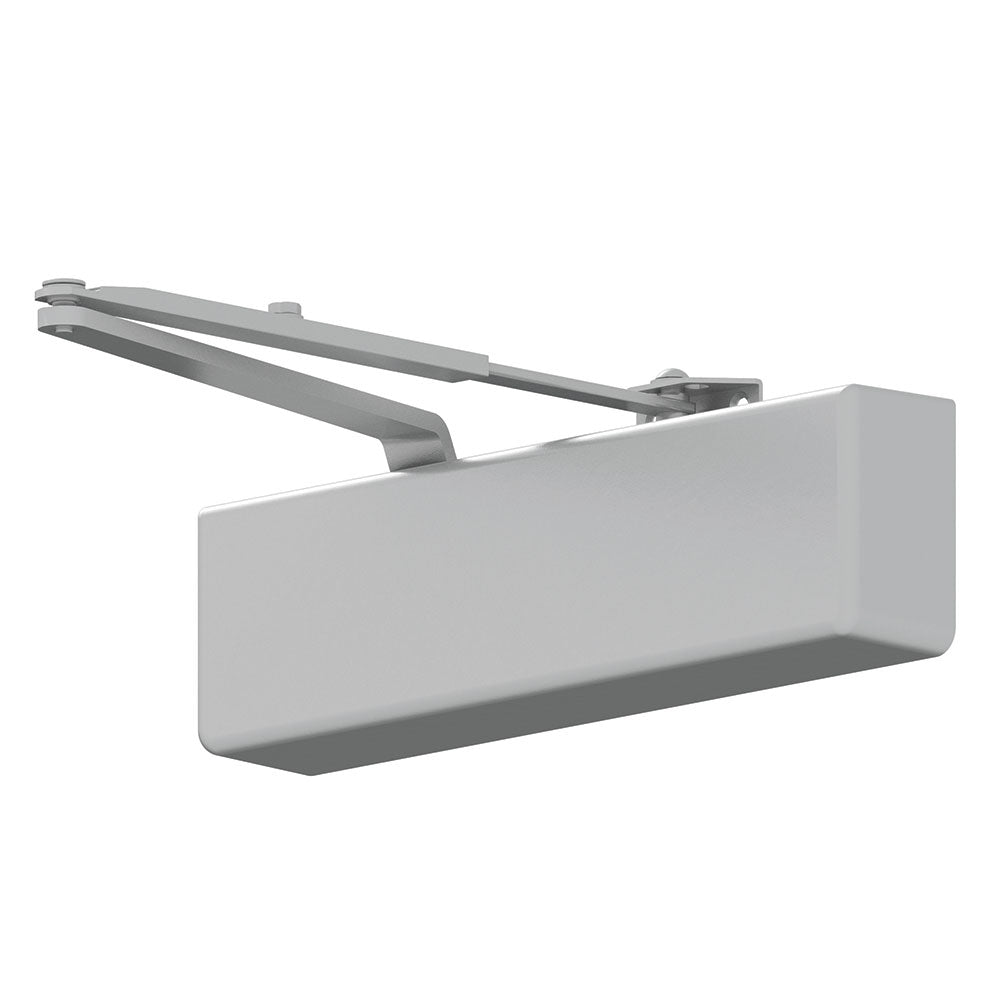

Falcon SC71A RWPA, SC70 Series Grade-1 Door Closer, Regular Arm with PA Bracket, Full Cover

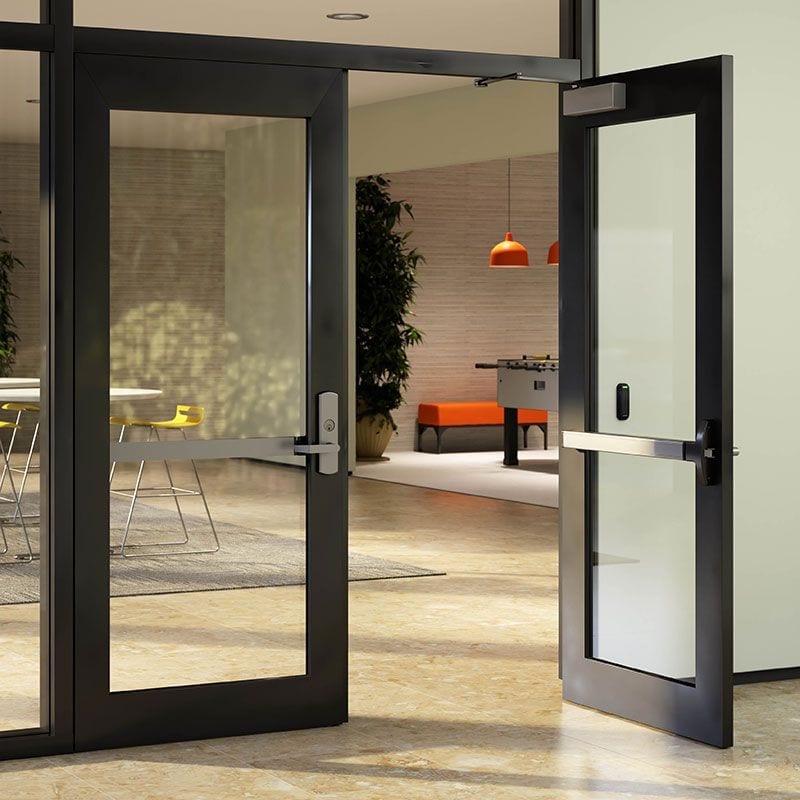

Falcon SC70A Series heavy-duty closers are built for applications that demand reliable door control and easy maintenance. The SC70 Series closers are ANSI Grade-1, ADA compliant, and deliver tough performance at an unbeatable value. Choose the SC71A for interior or exterior doors in retail shops, restaurants, apartments, small offices, and a variety of other high-traffic applications.

Rw/PA – Regular Arm with Parallel Arm Bracket. Includes adjustable forearm assembly to accommodate a variety of door types and frame conditions. Parallel Arm (PA) bracket allows closer to be installed on the ‘push’ side of the door in a parallel arm type configuration.

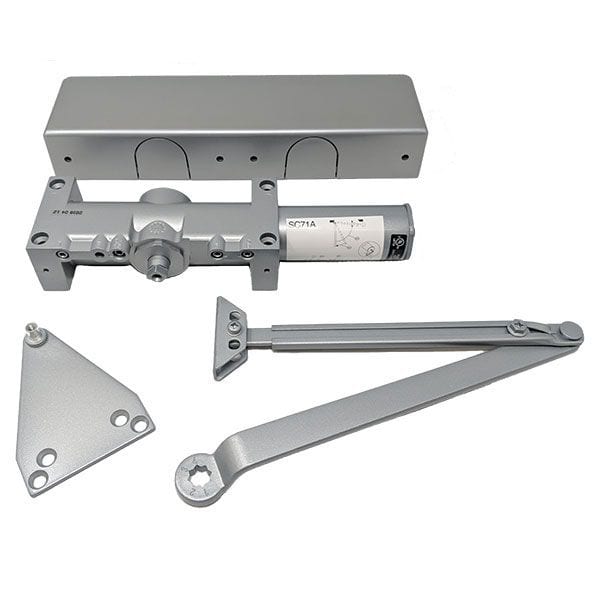

  • Standard Tri-Pack includes arm and bracket for Regular Pull Side, Top Jamb or Parallel Arm Mounting
  • Separate adjustable general speed, latch speed and backcheck
  • Comes standard with a universal screw pack, including self reaming and tapping screws





Finishes:

  • AL, BHMA 689 – Silver Painted (Resembles Aluminum Finish)
  • BR, BHMA 696 – Brass Painted
  • DKB, BHMA 695 – Dark Bronze Painted (Spray Duranodic)
  • MTBK, BHMA 622 – Matte Black

Models: SC71A-RWPA-AL, SC71A-RWPA-BR, SC71A-RWPA-DKB, SC71A-RWPA-MTBK

ANSI/BHMA Standard

Tested and certified under ANSI Standard A156.4 - Grade-1
Body Construction

Cast Aluminum Body
Brand

Falcon
Cover

Full Cover
Door Applications

Hollow Metal or Wood
Finish

Dark BronzeBrassBlackAluminum
Finishes

696 Brass695 Dark Bronze689 Aluminum622 Matte Black
Fire Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)
Handing

Non-handed for Left or Right Swinging Doors
Mounting Options

Top Jamb (Push Side)Regular (Pull Side)Parallel Arm (Push Side)
Spring Size

Adjustable Spring Size 1-6

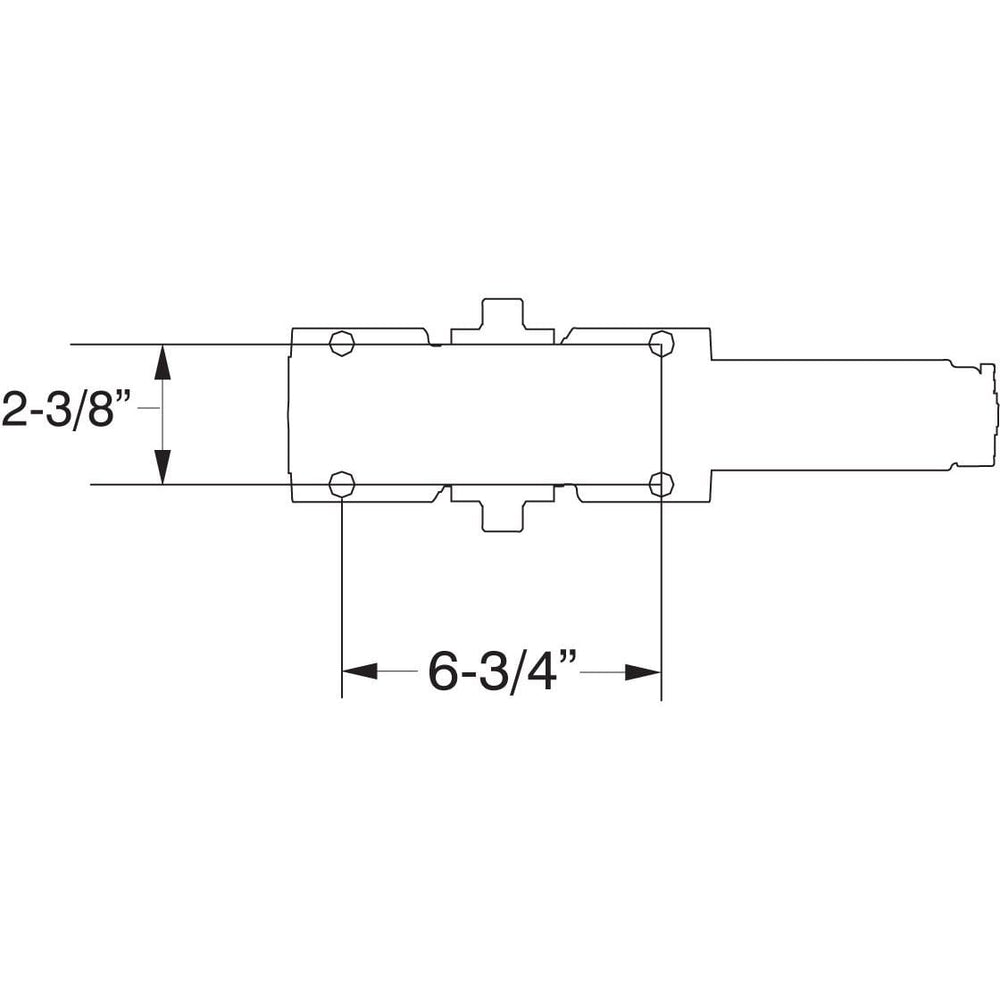

Templating (Hole Pattern)

2-3/8" x 6-3/4"
Usage

Heavy Duty
