Product Overview

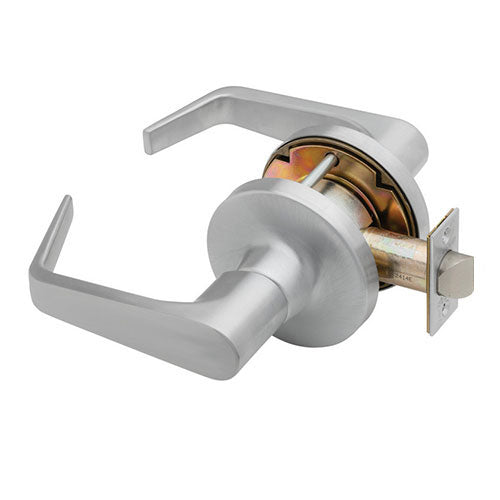

Falcon T101S Grade 1 Passage/Closet Cylindrical Lock, Non-keyed, Dane Lever, Standard Rose
The T Series extra heavy-duty Grade 1 cylindrical lock is designed to stand up to high-traffic and heavy-abuse applications. The T Series is constructed with a compression spring that allows the lock to exceed ANSI/BHMA Grade 1 testing requirements. Perfect for high-use institutional applications, the T Series lock delivers by providing a solid product at a solid price.

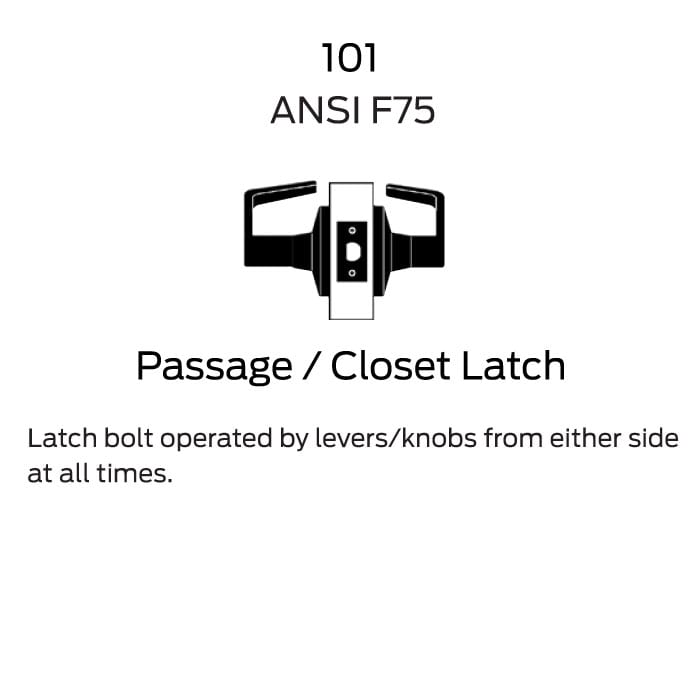

ANSI Function F75 – Latch bolt by levers at all times.
Reliability
- Heavy-duty compression springs behind the rose provide consistent lever return and prevent lever sag
- Trim is through-bolted with two 10-32 screws coated with thread sealant
- Certified Grade 1 and UL10C 3-hour A label
- Lever designs exceed ADA and state disability requirements
Compatibility
- Adjustable door thickness from 1-3/4” to 2-1/8” to fit all common door thicknesses
- Non-handed design
- Does not require field disassembly for re-handing
| ANSI/BHMA Standard |
Meets ANSI/BHMA A156.2 Series 4000 Grade 1 |
|---|---|
| Backset |
2-3/4" |
| Brand |
Falcon |
| Finish |
Satin BrassDark BronzeBlackSatin Chrome |
| Finishes |
626 Satin Chrome622 Matte Black606 Satin Brass613 Oil Rubbed Bronze |
| Fire Rating |
UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front |
| Handing |
Non-Handed |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Lever Design |
D (Dane) |
| Lock Function |
Passage |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Heavy Duty |
