Product Overview

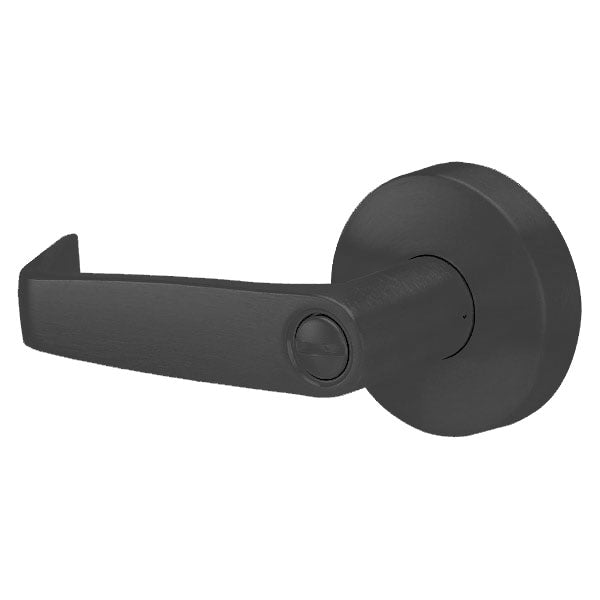

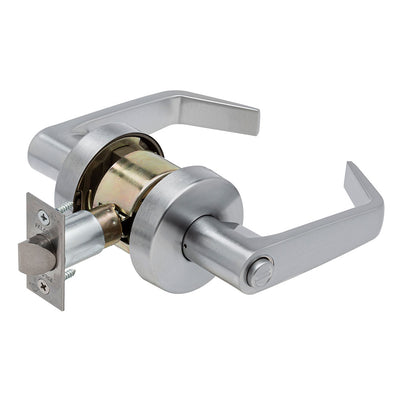

Falcon W301S SRD 626 Grade 2 Privacy Lock, Dane Lever, Small Rose, Satin Chrome Finish
When an affordable passage lever set is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W101 fits perfectly. The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business - Allegion.
ANSI Function F76 – Keyless – Latch bolt by levers. Outside lever is locked by push button on inside lever. Rotating inside lever or closing door releases push button and frees outside lever. Inside lever is always free. Emergency release in outside lever unlocks door.
- FAL.W301.DAN.SR.626
- Small Rose W Lock has 2-9/16" (65mm) diameter rose instead of 3-3/8" (86mm)
- Non-handed for easy field assembly
- Heavy-duty springs for better lever return and to prevent sagging
- Manufactured to Allegion’s industry-leading quality standards
| ANSI/BHMA Standard |
Tested and certified under ANSI/BHMA A156.2 Grade 2 |
|---|---|
| Backset |
2-3/4" |
| Brand |
Falcon |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finish |
Satin Chrome |
| Finishes |
626 Satin Chrome |
| Fire Rating |
UL/cUL listed up to 3 Hours - UL symbol on the latch front |
| Handing |
Non-Handed |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Lever Design |
SRD (Dane Small Rose) |
| Lock Function |
Privacy |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Medium Duty |
| Warranty |
10 Year Limited |
