Falcon

Falcon W511PD D (DANE) Entry/Office Lever Lock

$73.33
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.2, Grade 2 certified
  • ANSI function F109: Entry/Office
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

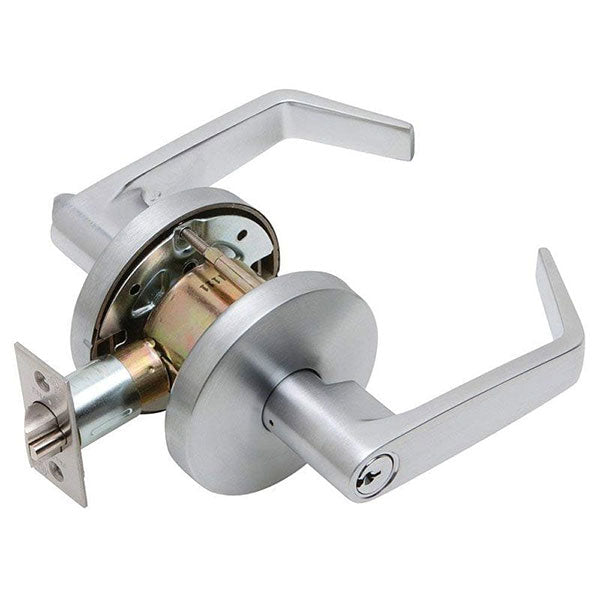

Falcon W511P6D Grade 2 Entry/Office Cylindrical Lock, Key in Lever Cylinder, Dane Lever, Standard Rose

When an affordable lock is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W Series lock fits perfectly. The Falcon W Series offers a quality product at a value price and is backed by one of the best names in the business - Allegion.

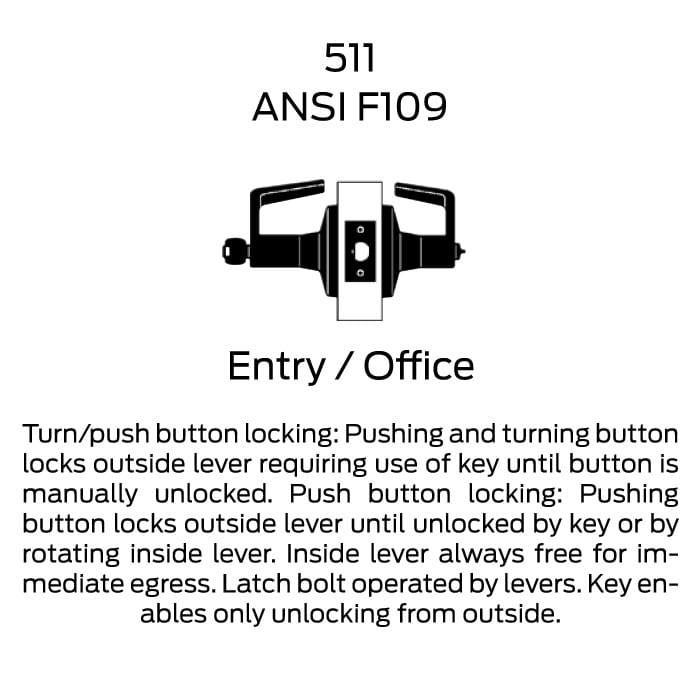

ANSI Function F109 - Deadlocking latch bolt by levers. Turn/push button locking. Pushing and turning button locks outside lever, requiring use of a key for unlocking the door until button is manually unlocked. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever is always free.

  • Non-handed for easy field assembly
  • Heavy-duty springs for better lever return and to prevent sagging
  • Manufactured to Allegion’s industry-leading quality standards

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2 Grade 2
Backset

2-3/4"
Brand

Falcon
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Door Thickness

1-3/8" to 1-3/4"
Finish

Satin ChromeBlackDark BronzeAged BronzeBright ChromeBright BrassSatin NickelSatin Brass
Finishes

625 Bright Chrome606 Satin Brass619 Satin Nickel613 Oil Rubbed Bronze605 Bright Brass643e Aged Bronze622 Matte Black626 Satin Chrome
Fire Rating

UL/cUL listed up to 3 Hours - UL symbol on the latch front
Handing

Non-Handed
Keyway

Schlage C KeywayFalcon G Keyway
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face
Lever Design

D (Dane)
Lock Function

Entry (Entrance)
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
Warranty

10 Year Limited
