Hager

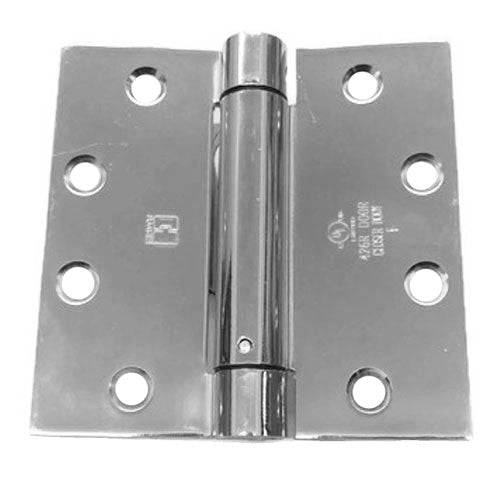

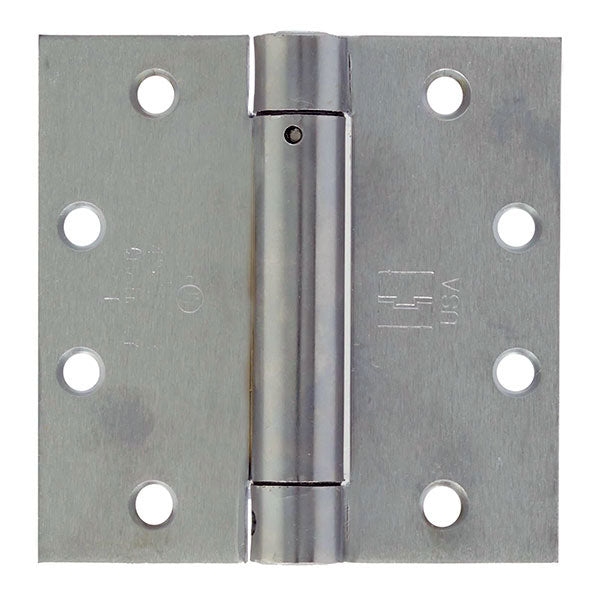

Hager 1250 4.5" x 4.5" UL Listed Spring Hinge

$37.25
Usually Ships:  2-3 Business Days
  • For automatic closing of fire-rated doors
  • Single acting spring hinge, square corner
  • Includes screws for metal and wood doors

Available Options:

Clear

Product Overview

Hager 1250 4-1/2" x 4-1/2" Full Mortise, Spring Hinge, Standard Weight, Square Corner

Today, the Hager name is synonymous with commercial hinges. In fact, they are the industry’s premier designer and manufacturer of commercial hinges. With legendary quality, time-tested durability, and consistent superior performance, Hager is the one name, and one brand, you can count on to provide it all.

  • Single Acting, Square Corner, Full Mortise - Spring Hinge
  • Steel with Steel components ANSI K81071F
  • Not recommended on doors over 7'0"
  • For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges.
  • Full spring tension may not be required on all hinges
  • Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges

ANSI/BHMA Standard

Meets ANSI/BHMA A156.7
Brand

Hager
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Finish

BlackSatin NickelBright BrassPrime CoatSatin BrassSatin ChromeOil Rubbed Bronze
Finishes

652 Satin ChromeUSP Prime Coat640 Oil Rubbed BronzeL1 Black632 Bright Brass633 Satin Brass646 Satin Nickel
Fire Rating

UL listed for use with fire rated doors
Gauge

0 .134
Size

4.5" x 4.5"
Special Feature

Spring HingeBuy America Act Compliant
Usage

Medium Duty
