Hager

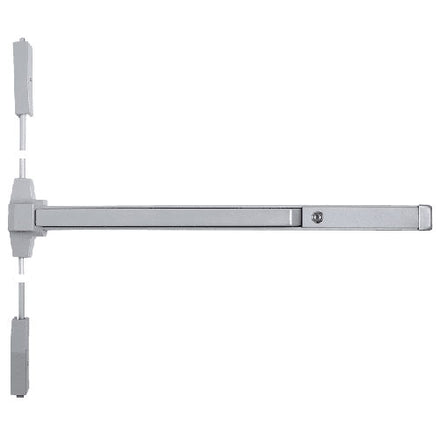

Hager 4701SVR Surface Vertical Rod Exit Device

$349.95
This item ships FREE! Usually Ships:  3-5 Business Days
  • BHMA/ANSI Certified Grade-1
  • UL listed for panic exit hardware
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

Hager 4700 Series Grade-1 Surface Vertical Rod (SVR) Exit Device, Exit Only, Door Height up to 84"

The Hager 4700 Series is designed and engineered to provide superior performance on standard stile doors in a range of light commercial and standard duty applications. Properly applied and maintained Hager 4700 Series Exit Devices and Trim are backed by a five-year warranty.

The 4700 Series Exit Devices are BHMA certified Grade 1 and meet Life Safety codes and Fire Safety requirements.

  • Exit Only (Hager Exit Device Trim Sold Separately)
  • BHMA Certified Grade 1 and meets life safety codes
  • UL305 Listed for Panic Hardware
ANSI/BHMA Standard

ANSI/BHMA A156.3-2014 Grade 1
Brand

Hager
Device Type

Surface Rod Device
Dogging Feature

Half turn hex dogging standard
Door Height

up to 7'0"
Door Thickness

1-3/4"
Finish

AluminumStainless SteelBlackDark Bronze
Finishes

DBZ Sprayed Dark BronzeBLK BlackALM Sprayed AluminumUS32D (630) Satin Stainless Steel
Fire Rating

None
Handing

Completely Reversible
Latchbolt

Top - 3/8" throw with automatic dead-latching stainless steel - Bottom - 3/8" throw held retracted during door swing stainless steel
Length

3'0" (2'6" to 3'0" Doors)4'0" (3'1" to 4'0" Doors)
Stile Type

Wide (Standard)
Strike

Stainless steel with plated rollers
Usage

Medium Duty
Warranty

5 Year
