Hager 5100 Door Closer x Hold Open Arm (HO)

$258.43
Usually Ships:  3-5 Business Days
  • Heavy-Duty, BHMA/ANSI Certified Grade-1
  • Includes 5107 friction hold open arm
  • Regular, top jamb, and parallel arm installations

Available Options:

Clear

Product Overview

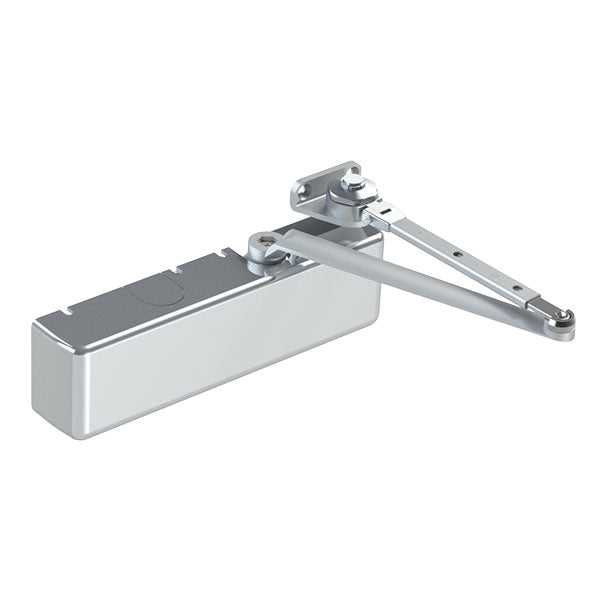

Hager 5100 Series Door Closer x 5107 Hold Open Arm (HO), Multi-Mount, Size 1-6 Adjustable

5100 Series Closers are heavy-duty door closers constructed of cast iron to be installed on exterior and interior doors that are subject to high use and potential abuse. They are designed and engineered for reliability and superior performance. The commercial applications ideal for these closers include schools, medical facilities, institutions and hospitals as well as office buildings and any entrance door with high foot traffic.

  • Includes 5107 hold open arm
  • Cast iron body
  • MLT (Multi-Mount) – Regular, parallel-arm, and top jamb mount
  • Rust inhibiting primer standard
  • Standard, separate and independent, latch, sweep and backcheck valves
  • Ideal for schools, hospitals, and other high-use environments
  • Ideal choice for doors with a maximum weight of 330 lbs
ANSI/BHMA Standard

ANSI/BHMA A156.4 Grade 1 certified
Body Construction

Cast Iron Body
Brand

Hager
Cover

Full Cover
Door Applications

Hollow Metal Wood or Aluminum
Finish

BlackAluminumDark Bronze
Finishes

BLK BlackDBZ Sprayed Dark BronzeALM Sprayed Aluminum
Fire Rating

Non-Rated with Hold Open Arm
Handing

Non-Handed
Mounting Options

Parallel Arm (Push Side)Top Jamb (Push Side)Regular (Pull Side)
Spring Size

Adjustable Spring Size 1-6

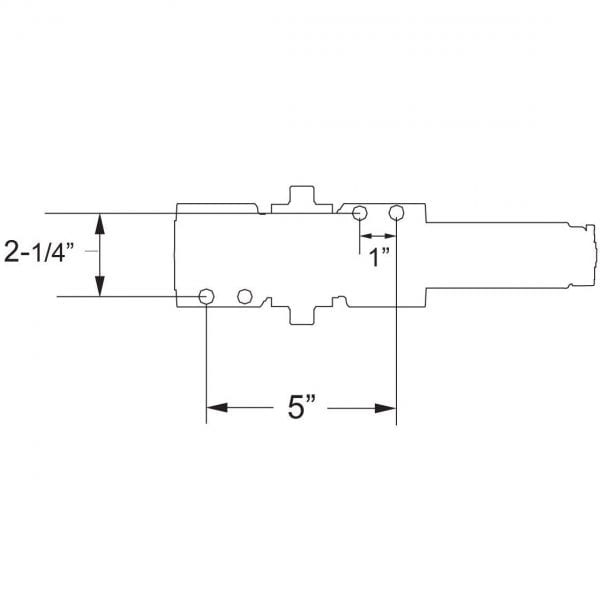

Templating (Hole Pattern)

2-1/4" x 5"
Usage

Heavy Duty
Warranty

Limited Lifetime Warranty
