Hager

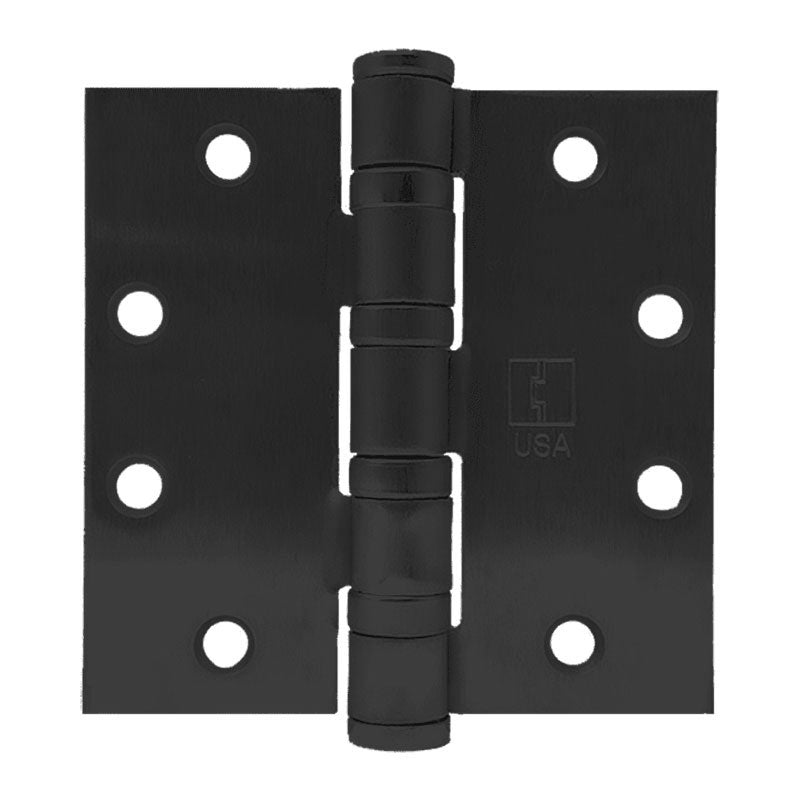

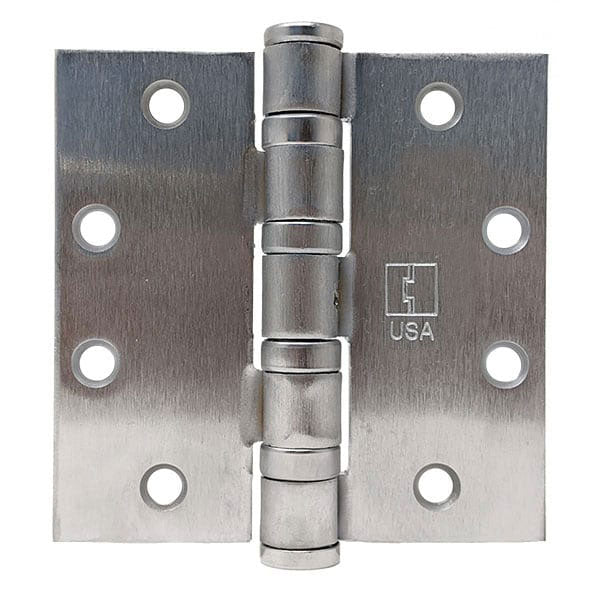

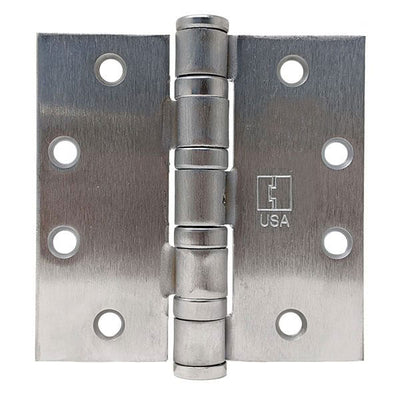

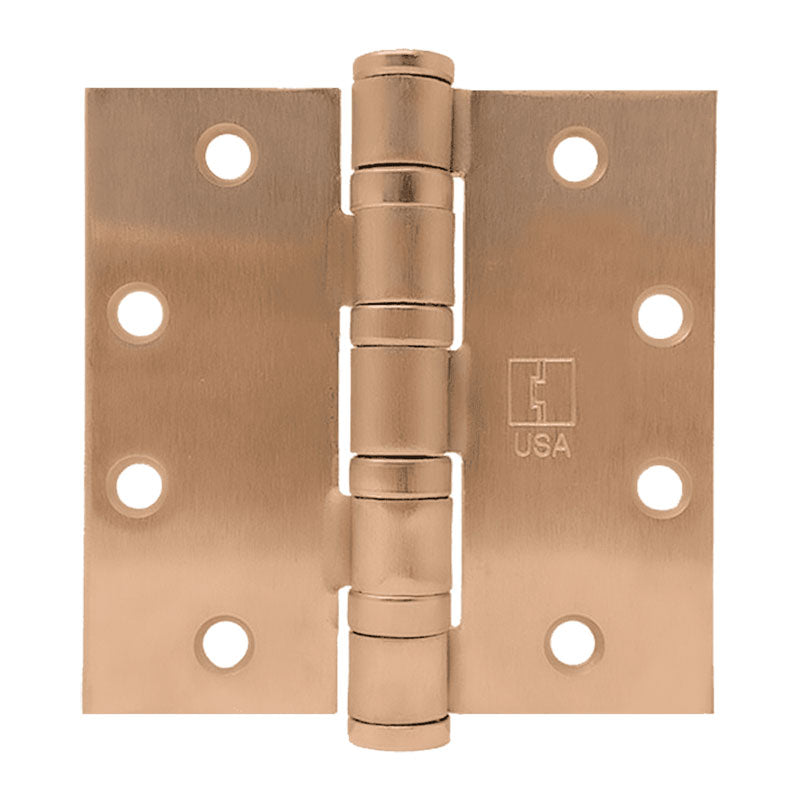

Hager BB1168 NRP 4.5" x 4.5" Heavy Weight Ball Bearing Hinge (Non-Removable Pin)

$36.67
Usually Ships:  3-5 Business Days
  • Meets Industry Standards ANSI/BHMA A156.1
  • NRP (Non-Removable Pin) – Set Screw in Barrel
  • .180 Heavy Weight, ball bearing

Available Options:

Clear

Product Overview

Non-Removable Pin also known as security hinges are used with out-swinging doors with locking hardware. Typically found on doors that swing outward. A set screw in the barrel prevents the removal of the hinge pin.

Today, the Hager name is synonymous with commercial hinges. In fact, they are the industry’s premier designer and manufacturer of commercial hinges. With legendary quality, time-tested durability, and consistent superior performance, Hager is the one name, and one brand, you can count on to provide it all.

  • NRP = Non-Removable Pin
  • ANSI A8111
  • Four ball bearings
  • For use on heavy weight doors and doors requiring high-frequency service
  • Complies with NFPA80 requirements for use on fire-rated door assemblies

ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1
Brand

Hager
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Finish

Satin Chrome
Finishes

652 Satin Chrome
Fire Rating

Certified to meet UL standards (3 Hour Fire-Rated)
Gauge

0 .180
Size

4.5" x 4.5"
Special Feature

Non-Removable PinBuy America Act Compliant
Usage

Heavy Duty
