Product Overview

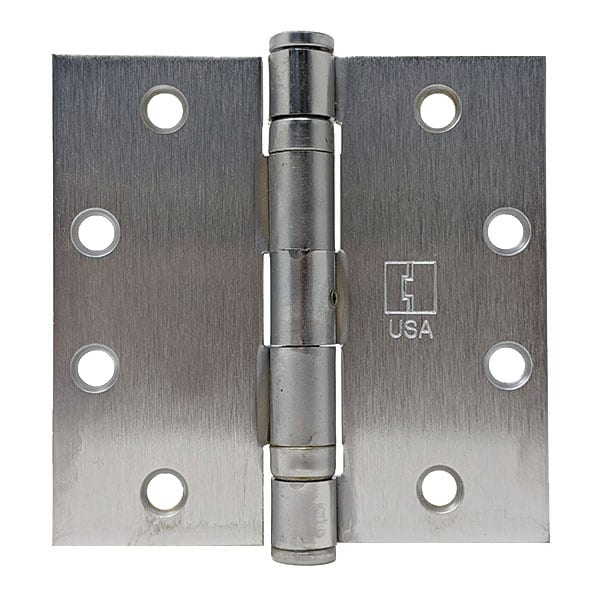

Non-Removable Pin also known as security hinges are used with out-swinging doors with locking hardware. Typically found on exterior doors that swing outward. A set screw in the barrel prevents the removal of the hinge pin.
Today, the Hager name is synonymous with commercial hinges. In fact, they are the industry’s premier designer and manufacturer of commercial hinges. With legendary quality, time-tested durability, and consistent superior performance, Hager is the one name, and one brand, you can count on to provide it all.
- NRP = Non-Removable Pin
- ANSI A8112
- Two ball bearings
- For use on medium weight doors or doors requiring medium frequency service
- Complies with NFPA80 requirements for use on fire-rated door assemblies
| ANSI/BHMA Standard |
Meets ANSI/BHMA A156 .1 |
|---|---|
| Brand |
Hager |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Finish |
Oil Rubbed BronzeSatin Chrome |
| Finishes |
652 Satin Chrome640 Oil Rubbed Bronze |
| Fire Rating |
Certified to meet UL standards (3 Hour Fire-Rated) |
| Gauge |
0.145 |
| Size |
5" x 4.5" |
| Special Feature |
Buy America Act CompliantNon-Removable Pin |
| Usage |
Medium Duty |
