Hager Roton 780-210HD Heavy Duty Full Surface Continuous Gear Hinge

$200.15
Usually Ships:  2-3 Business Days
  • Only 1/32" clearance required on hinge side
  • Includes Dril-Kwik® Screws and sex bolts
  • Heavy duty for high frequency doors

Available Options:

Clear

Product Overview

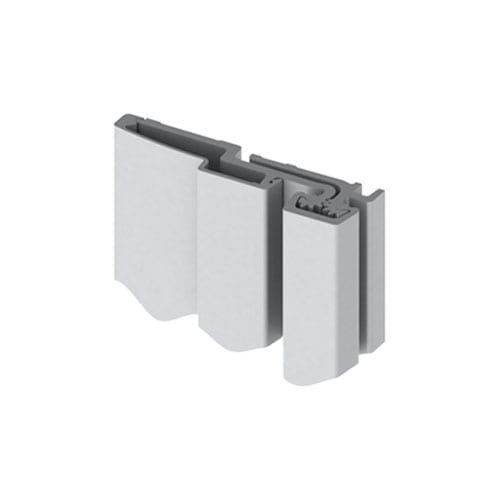

Hager 780-210HD Full Surface Continuous Geared Hinge, Heavy Duty

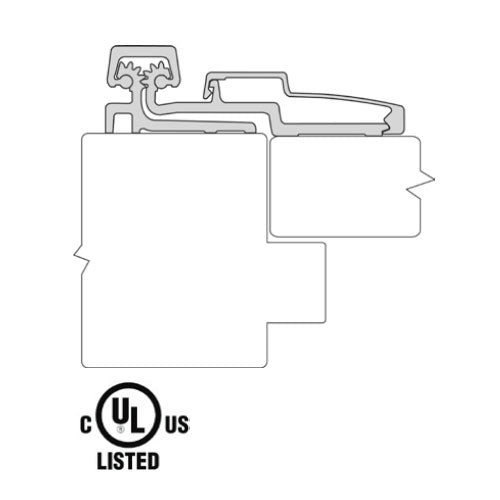

The Original - Hager Companies has been manufacturing the original Continuous Geared Aluminum Hinges for over 25 years. The unique design of Roton® consists of three important parts: an internal rolling contact gear profile, a high-strength cover channel, and solid bearings made of celanex. Working together, these parts evenly distribute door weight and maintain door alignment for superior performance.

  • Heavy-duty for high-frequency doors or heavy, medium-frequency doors
  • Can be used with any door and frame material
  • Security molding
  • 1/32” (1 mm) inset

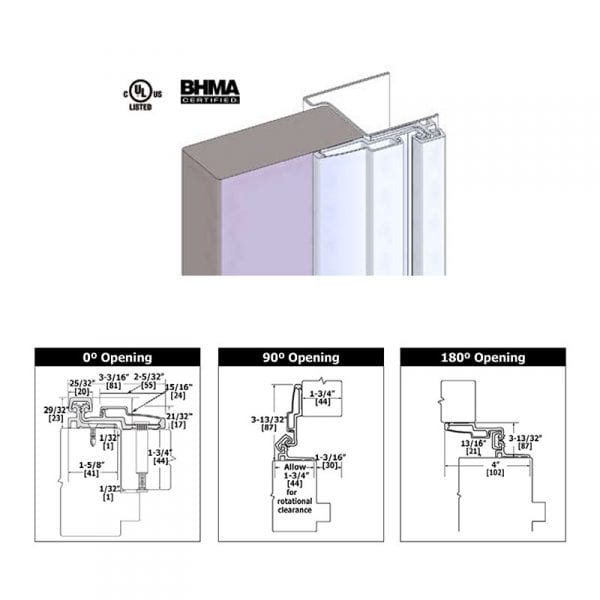

  • 1/32” minimum recommended for hinge side plus standard lockside clearance. 1-5/8” minimum frame face required plus 3/16” rotational clearance
  • 780 Series Roton® continuous geared hinges meet requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Available in three lengths: 79" (for 6'8" doors), 83" (for 7'0" doors) and 95" (for 8'0" doors)

Field Modifications
While Roton® hinges can be cut in the field, any product modifications may void all warranties. Should in the field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes.

Brand

Hager
Continuous Hinge Type

Full Surface
Door Applications

1-3/4″ Thick Doors
Fasteners

Dril-Kwik ® screws and sex bolts
Finish

Anodized AluminumBlackDark Bronze
Finishes

Black Anodized AluminumDark Bronze Anodized AluminumClear Anodized Aluminum
Length

95" (for 8'0" door)83" (for 7'0" door)79" (for 6'8" door)
Material

Aluminum 6063-T6
Usage

Heavy Duty
Warranty

Limited Lifetime Warranty
