Product Overview

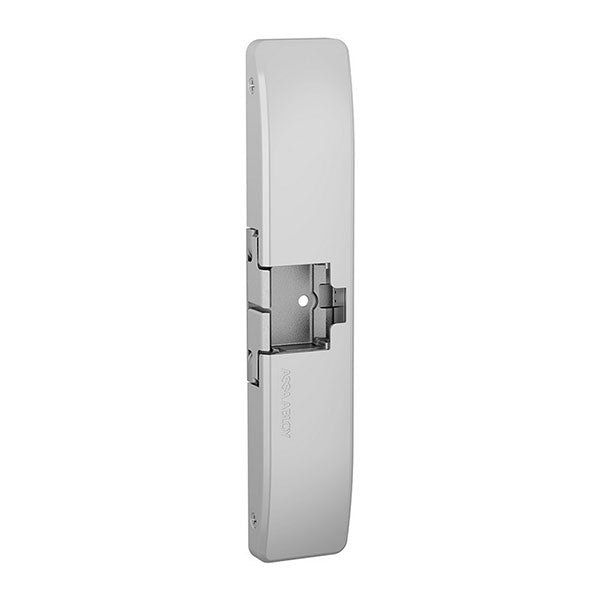

HES 9700 Series Surface Mounted Electric Strike
The stylish windstorm-rated and fire-rated, squarebolt solution.
The 9700 Series is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin SecureBolt™ and Yale SquareBolt® exit devices. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. The 9700 is designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing. This unique electric strike also complies with NFPA 80-07 guidelines for retrofit into fire rated frames.
- Compatible with Corbin Russwin SecureBolt® and Yale SquareBolt® exit devices
- Endurance 1 million cycles
- Installs on aluminum, hollow metal and wood frames (wood screws not provided)
- Field selectable fail safe/fail secure
- Dual voltage 12 or 24 VDC
- Non-handed
Optional Features
- LBM – Latchbolt monitor (detects when latchbolt is in a locked state)
- LBSM – Latchbolt strike monitor (detects latchbolt and strike are in a locked state)
Certifications / Listings
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- UL 305 listed
- RoHS compliant
- UL 10C fire rated, 3-hour single door (fail secure only)
- NFPA-252 fire door compliant
- ANSI/SDI A250.13 windstorm resistant
- Florida Building Code approved TAS 201, 202, 203
| ANSI Grade |
ANSI/BHMA A156.31 Grade 1 |
|---|---|
| Brand |
HES |
| Finish |
Stainless Steel |
| Finishes |
630 Satin Stainless Steel |
| Fire Rating |
UL 10C fire rated 3-hour single door (fail secure only) |
| Option |
LBM - Latchbolt MonitorNoneLBSM Latchbolt Strike Monitor |
| Part Type |
Complete Electric Strike |
| Usage |
Heavy Duty |
| Voltage |
Dual voltage 12 or 24 VDC |
