Product Overview

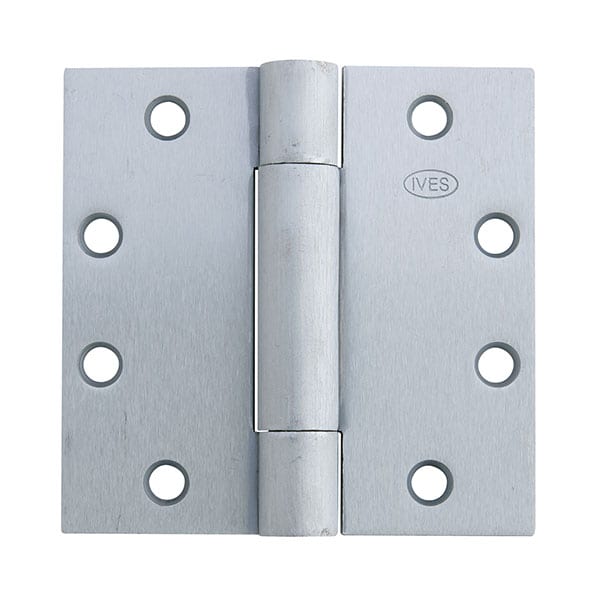

Ives 3CB1HW 3-Knuckle Concealed Bearing Hinge, Heavy Weight, 4-1/2" x 4-1/2"
Non-Removable Pin also known as security hinges are used with outswinging doors with locking hardware. Typically found on exterior doors that swing outward. A set screw in the barrel prevents the removal of the hinge pin.
- Recommended for heavier weight doors (>150 lbs)
- Recommended for high-frequency usage (400 cycles per day)
- Made with two heavy duty concealed nylon bearings
- Recommended for use with a door closer
- Packed with fasteners for hollow metal and wood doors
- UL Classified for windstorm rated assemblies - R37965
| ANSI/BHMA Standard |
Certified to ANSI/BHMA A156.1 for performance standards Meets ANSI/BHMA 156.7 for template hinge dimensions |
|---|---|
| Brand |
Ives |
| Finish |
Stainless SteelSatin Chrome |
| Finishes |
652 Satin Chrome630 Satin Stainless Steel |
| Fire Rating |
Certified to meet UL standards (3hr) |
| Gauge |
0 .180 |
| Material |
1040 steel or 304 series stainless steel |
| Size |
4.5" x 4.5" |
| Special Feature |
Non-Removable Pin |
| Usage |
Heavy Duty |
Ives 3CB1-HW 4.5" x 4.5" Heavy Weight NRP Concealed Bearing Hinge (Non-Removable Pin)
