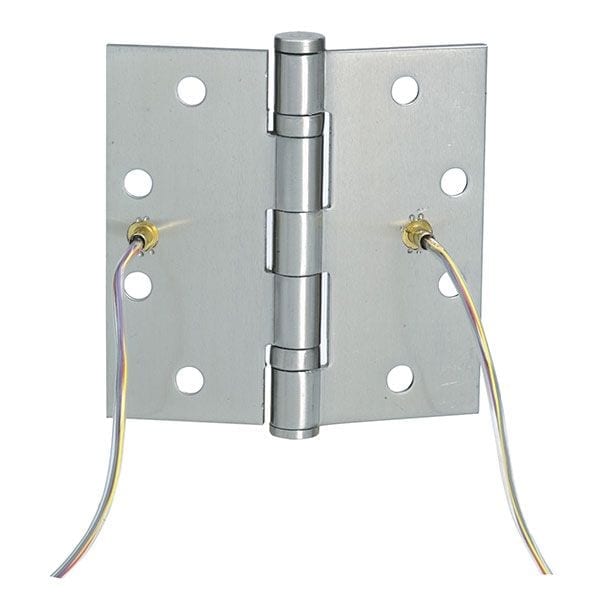

Ives 5BB1 4.5" x 4.5" TW8 CON Full Mortise Electrified Hinge - 8 Wire Thru Wire

$291.14
Usually Ships:  1-2 Business Days
  • 8 Wires - Through-Wire is rated for 50 volts AC/DC
  • Through-wire hinges cycle tested to ensure durability
  • Satin Chrome Finish - 5 Knuckle, NRP standard

Product Overview

Provides electric power transfer from the frame to the door in order to supply power to an electrified mortise or cylindrical lock, exit devices with electric latch retraction, and/or electric strikes (pairs of doors).

Through-Wire is rated for 50 volts AC/DC at 3 .5 amp continuous and 16 amp pulse, maximum pulse 400 mili second. Monitor rated 30VDC at .5 amp

  • One hinge per box, packed with wood and machine screws
  • Hinge is NRP as a standard
  • High-quality brass ferrules and plastic tubing protect the wires
  • Through-wire hinges cycle tested to ensure durability
  • Ives warranty applies - 12 months from date of shipment
ANSI/BHMA Standard

Certified to ANSI/BHMA A156.1 for performance standards Meets ANSI/BHMA 156.7 for template hinge dimensions
Brand

Ives
Finish

Satin Chrome
Finishes

652 Satin Chrome
Fire Rating

UL Listed
Material

1040 steel or 304 series stainless steel
Usage

Medium Duty
