Product Overview

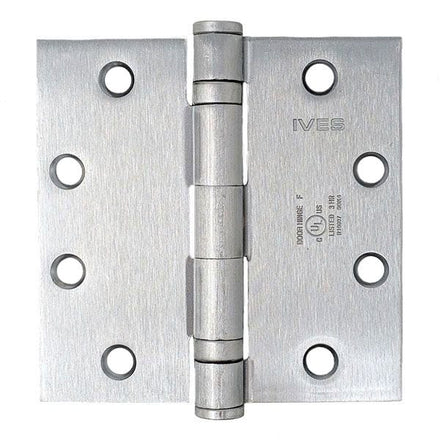

Ives 5BB1 5.0X4.5 5-Knuckle Ball Bearing Hinge, Standard Weight, 5" x 4-1/2"
Ives offers a variety of architectural hinges that will cover any need commercial application while also exceeding code requirements. With tested durability and consistent superior performance, Ives architectural hinges get the job done.
- Hinges tested for cycles, weather, and environment to ensure high performance
- Recommended for medium weight doors (<150 lbs)
- Recommended for medium frequency usage (<400 cycles per day)
- Made with two ball bearing assemblies
- Recommended for use with a door closer
- Packed with fasteners for hollow metal and wood doors
- UL Listed (3 Hour Fire-Rated)
- UL Classified for windstorm rated assemblies - R37965
| ANSI/BHMA Standard |
Certified to ANSI/BHMA A156.1 for performance standards Meets ANSI/BHMA 156.7 for template hinge dimensions |
|---|---|
| Brand |
Ives |
| Finish |
Satin ChromeStainless Steel |
| Finishes |
652 Satin Chrome630 Satin Stainless Steel |
| Fire Rating |
Certified to meet UL standards (3 Hour Fire-Rated) |
| Gauge |
0.146 |
| Material |
1040 steel or 304 series stainless steel |
| Size |
5" x 4.5" |
| Usage |
Medium Duty |
Ives 5BB1 - 5" x 4.5" Ball Bearing Hinge
