Ives

Ives FB358 Manual Flush Bolt for Wood Doors

$30.98
Usually Ships:  1-2 Business Days
  • Bolt throw is 3/4" with a 7/8" vertical adjustment
  • UL Listed up to 90 minutes (fire-rated)
  • 1 ea. per box (add 2 for a pair)

Available Options:

Clear

Product Overview

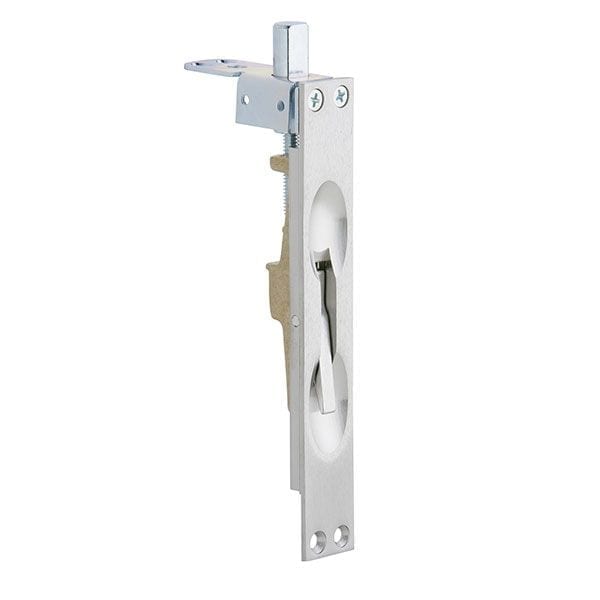

Ives FB358 Flush Bolt, For Wood Doors

Flush bolts are used to secure the inactive leaf, so the active door can lock into it. Flush bolts are installed in the top and bottom edges of the door. When flipped, the top bolt projects into the frame head. The bottom bolt projects into the floor or threshold.

  • Reduces installation costs; requires only simple router mortise at top and bottom corners of doors
  • Door strength and rigidity maintained by tying door faces to reinforcing extensions on guide with machine screws and bearing washers, not supplied
  • Non-handed
  • Bolt tip 1/2" diameter
  • Bolt throw is 3/4" with a 7/8" vertical adjustment
  • Bolt backset is 3/4"
  • Not available for rabbeted door installations

Certifications

  • Meets ANSI A156.16, L04261
  • UL Listed 90 Minute fire doors 8’0" X 10’0". Fire-rated openings require top and botom bolt.
ANSI/BHMA Standard

Meets ANSI A156.16 L04261
Brand

Ives
Finish

Aged BronzeBlackSatin BronzeBright ChromeBright BrassSatin NickelSatin BrassSatin ChromeOil Rubbed Bronze
Finishes

606 Satin Brass619 Satin Nickel612 Satin Bronze605 Bright Brass643e Aged Bronze622 Matte Black626 Satin ChromeBLK Black613 Oil Rubbed Bronze
Fire Rating

UL Listed 3 Hour fire doors 8’0" X 10’0". Fire rated openings require top and bottom bolt.
Handing

Non-Handed
